Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

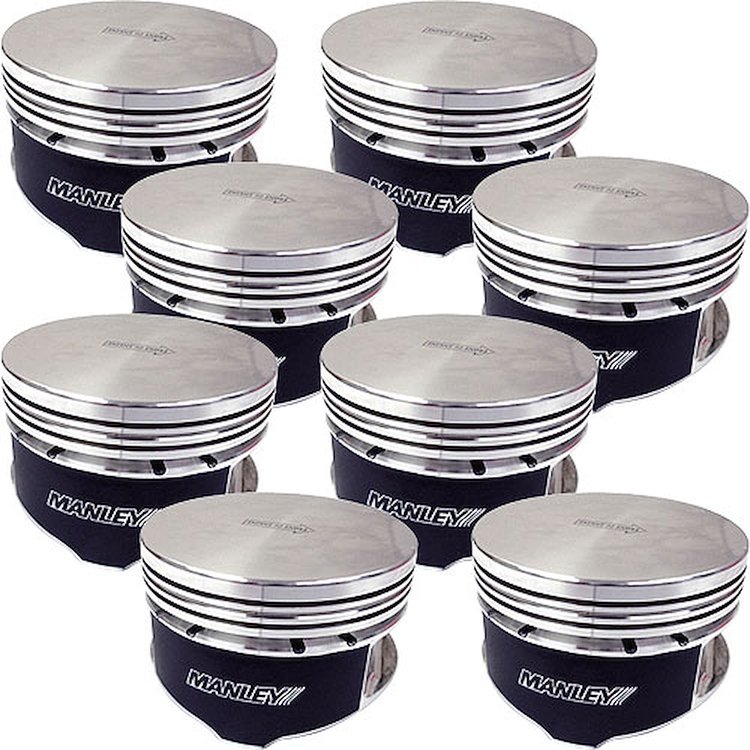

Stroker Series Flat Top Pistons5.850'' Rod Length w/3.750'' Stroke 1.200'' Compression Distance
- Ford 4.6L/5.4L 2/4V & 5.4L 3V Flat Top Pistons
- Stroker Series
- 3.552'' Bore
- 5.850'' Rod w/3.750'' Stroke
- 1.200'' Comp. Height
- 8/pkg.
Technical Specs: - Compression Ratio, 5.850' Rod w/3.750' Stroke: 13.33:1 (42cc), 11.43:1 (51cc), 11.26:1 (52cc)
- Compression Height: 1.200'
- Piston Weight: 350 grams
- Flat Top: 0cc
- Pin Size: 22mm dia, 2.500' long, .150' wall (106 grams)
- Spiral Locks: .061' wide
- Ring Grooves: 1.5mm Top (.220' down); 1.5mm Middle; 3mm Bottom
- Piston Clearance: .003' measured .850' from bottom of the oil ring
Part TypePiston
BrandMANLEY
Package Height8.2
Package Width9.1
Package Length9.4
Weight9.24 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number595000C-8
Package Qty1
Package TypeEA
