Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

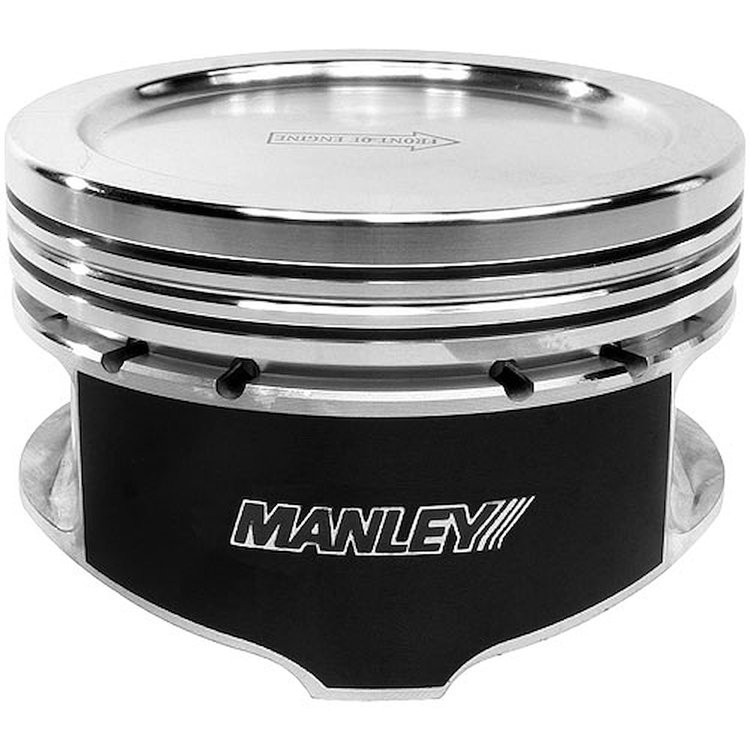

Ford 4.6L/5.4L 2/4V & 5.4L 3V Dish Top Piston
Ford 4.6L/5.4L 2/4V & 5.4L 3V Dish Top Piston 3.552" Bore 5.850" Rod Length 3.750" Stroke 1.200" Comp Distance
MANLEY 595400C-1 Features:
Our signature "Platinum Series" pistons feature 2618 alloy forgings, proven cam and barrel skirt profiles, tool steel wrist pins, and moly skirt coatings on select part numbers. Join the ranks of professional engine builders and tuners who rely on Manley pistons for superior performance and durability.Platinum Series Pistons
Professional engine builders and elite tuners around the world are running Manley pistons for some very good reasons. Manley uses domestic 2618 high strength alloy forgings and unique (to Manley) fixturing allowing skirt turning / ring groove machining be performed in one single operation to ensure the ultimate ring groove to skirt squareness for better ring seal. Cam and barrel (skirt) profiles that make power but are friendly on the cylinder walls. Manley is well known for their high quality valvetrain components, but insiders also trust and use Manleys top quality pistons and connecting rods.
Show More
Features:
- Lightweight Design
- 2618 High Strength Alloy
- 1.2mm Offset Wrist Pin Location for Quiet Start-Ups. Mimics OEM Design
- 1.5mm, 1.5mm, 3mm Ring Grooves
- Perfect Ring Groove to Skirt Squareness
- Round Wire Locks Included - .061'' wide
- Pressure Balance Groove
- Premium Chrome Moly Wrist Pin 22mm Diameter x 2.500'' Long x .150'' Wall
- Full Banded Skirt Design for Increased Skirt Stability
Piston Common Specs: - Dome Volume: -11cc Dish, -18cc Spherical Dish and -23cc Dish
- Crown Thickness: .185''
- Ring Thickness: Top Ring - 1.5mm (.220'' down); Second Ring - 1.5mm; Oil Ring - 3mm
- Pin Included: Premium Chrome Moly 22mm dia., 2.500'' long, .150'' wall
- Spiral Locks: .061'' wide
- Recommended Piston Clearance: .003'' measured .850'' from bottom of the oil ring
Part TypePiston
Product LineManley Ford 4.6L & 5.4L SOHC/DOHC 2/4V and 5.4L 3V Dish Top Pistons
BrandMANLEY
Package Height2.7
Package Width4.1
Package Length4.2
Weight1.08 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number595400C-1
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
