Vehicle Info NeededMANLEYPART NUMBER: 660-596130C-8

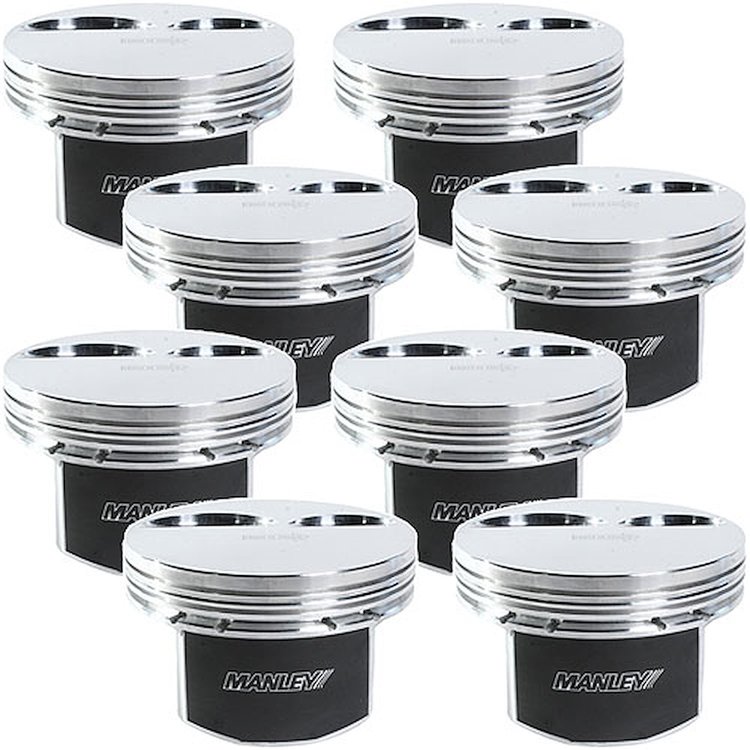

Chevrolet LS 3.622 Stroke Dish Top Pistons -10cc Dish Top
$88940
Ships Tomorrow
Lowest Price Guarantee-10cc Dish Top Pistons6.125'' Rod Length
- Chevrolet LS 3.622 Stroke Dish Top Pistons
- -10cc Dish Top
- 4.030'' Bore
- 3.622'' Stroke
- 6.125'' Rod
- 1.304'' Comp. Height
- 8/pkg.
Technical Specs: - Compression Ratio: 10.2:1 (64cc), 9.9:1 (66cc), 9.5:1 (70cc), 9.3:1 (72cc)
- Compression Height: 1.304'
- Valve Pocket Type: LS1, LS2, LS3, LS6, L92
- Valve Pocket Depth: .185' Intake / .130' Exhaust
- Piston and Pin Weight: 545 grams
- Dish Top: -10cc
- Pin Size: .927' dia., 2.300' long, .130' wall (95 grams)
- Spiral Locks: .061' wide
- Ring Grooves: 1.5mm Top (.250' down); 1.5mm Middle; 3mm Bottom
- Piston Clearance: .0045' measured 1.100' from bottom of the oil ring
Part TypePiston
BrandMANLEY
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number596130C-8
Package Qty1
Package TypeEA
