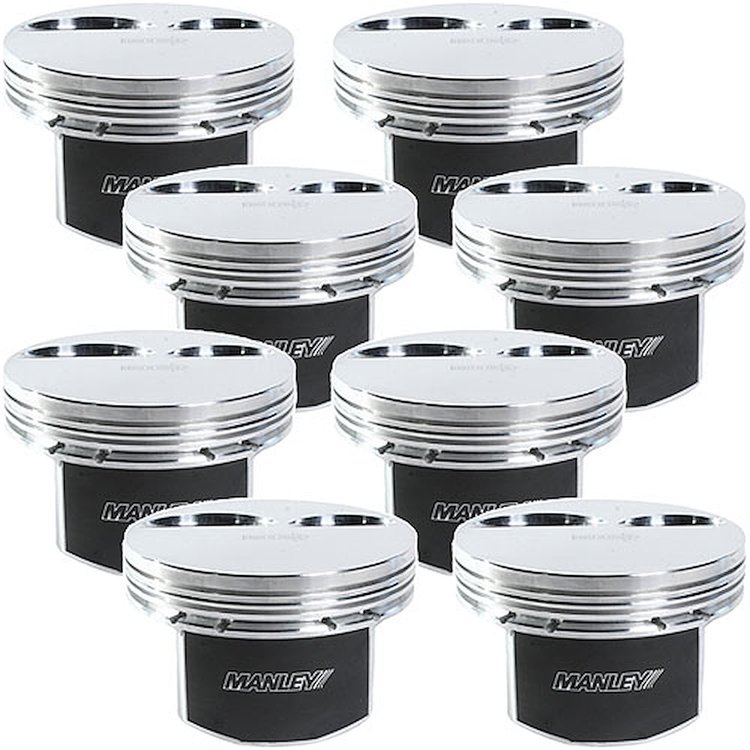

-20cc Dish Top Pistons6.125'' Rod Length
- Chevrolet LS 4.100 Stroke Dish Top Pistons
- -20cc Dish Top
- 4.130'' Bore
- 4.100'' Stroke
- 6.125'' Rod
- 1.065'' Comp. Height
- 8/pkg.
Technical Specs: - Compression Ratio: 10.7:1 (64cc), 10.5:1 (66cc), 10.1:1 (70cc), 9.9:1 (72cc)
- Compression Height: 1.065'
- Valve Pocket Type: LS1, LS2, LS3, LS6, LS7, L92
- Valve Pocket Depth: .175' Trough
- Piston and Pin Weight: 555 grams
- Dish Top: -20cc
- Pin Size: .927' dia., 2.500' long, .150' wall (118 grams)
- Round Wire Locks: .061' wide
- Ring Grooves: 1.5mm Top (.250' down); 1.5mm Middle; 3mm Bottom
- Piston Clearance: .0045' measured 1.100' from bottom of the oil ring
Part TypePiston
BrandMANLEY
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number596405C-8
Package Qty1
Package TypeEA
