Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
-10cc Dish Top Pistons6.125'' Rod Length

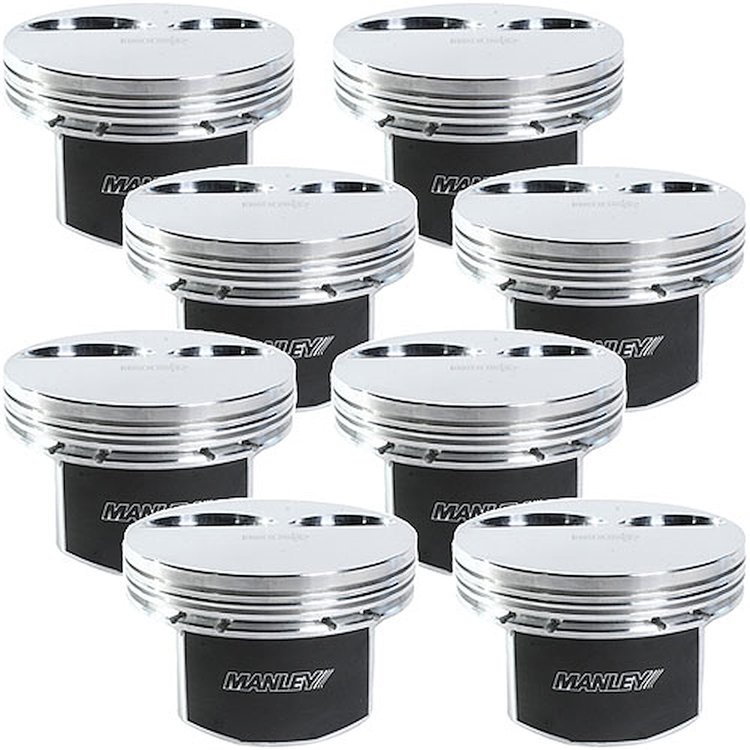

- Chevrolet LS 4.100 Stroke Dish Top Pistons
- -10cc Dish Top
- 4.065'' Bore
- 4.100'' Stroke
- 6.125'' Rod
- 1.065'' Comp. Height
- 8/pkg.
Technical Specs: - Compression Ratio: 11.4:1 (64cc), 11.2:1 (66cc), 10.7:1 (70cc), 10.5:1 (72cc)
- Compression Height: 1.065'
- Valve Pocket Type: LS1, LS2, LS3, LS6, L92
- Valve Pocket Depth: .185' Intake / .130' Exhaust
- Piston and Pin Weight: 521 grams
- Dish Top: -10cc
- Pin Size: .927' dia., 2.300' long, .150' wall (110 grams)
- Round Wire Locks: .061' wide
- Ring Grooves: 1.5mm Top (.225' down); 1.5mm Middle; 3mm Bottom
- Piston Clearance: .0045' measured 1.100' from bottom of the oil ring
Part TypePiston
BrandMANLEY
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number596565C-8
Package Qty1
Package TypeEA
