Vehicle Info NeededMANLEYPART NUMBER: 660-597680C-8

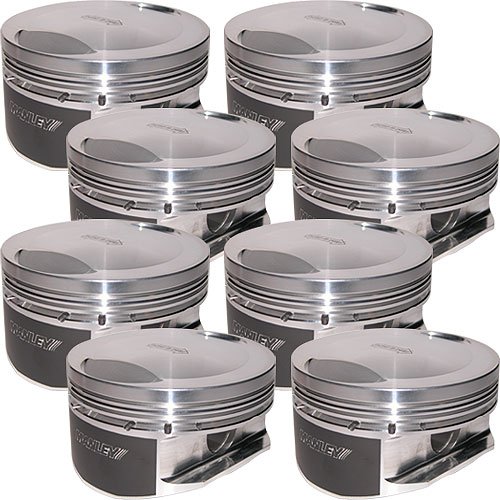

Chrysler 6.1L Hemi Dome Pistons +5cc Dome Top
$88940
Ships on 09/09/2026
Lowest Price Guarantee- Chrysler 6.1L Hemi Dome Pistons
- +5cc Dome Top
- 4.080'' Bore
- 3.579''/90.9mm Stroke
- 6.240'' Rod
- 1.220'' Comp. Height
- 10.79:1 CR (74cc)
- 8/pkg.
Technical Specs: - Compression Ratio: 10.79:1 (74cc)
- Compression Height: 1.220'
- Piston and Pin Weight: 571 grams
- Dome Top: +5cc
- Pin Size: .927' dia., 2.300' long, .150' wall (110 grams)
- Round Wire Locks: .061' wide
- Ring Grooves: 1.5mm Top; 1.5mm Middle; 3mm Bottom
Part TypePiston
BrandMANLEY
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number597680C-8
Package Qty1
Package TypeEA
