Vehicle Info NeededMANLEYPART NUMBER: 660-597880C-8

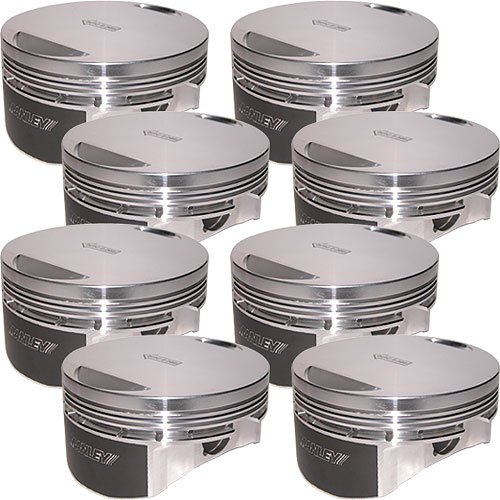

Chrysler 6.1L Hemi Dome Stroker Series Pistons -1.5cc Flat Top
$88940
Ships Tomorrow
Lowest Price Guarantee- Chrysler 6.1L Hemi Dome Stroker Series Pistons
- -1.5cc Flat Top
- 4.080'' Bore
- 4.050'' Stroke
- 6.125'' Rod
- 1.085'' Comp. Height
- 11.23:1 CR (74cc)
- 8/pkg.
Technical Specs: - Compression Ratio: 11.23:1 (74cc)
- Compression Height: 1.085'
- Piston and Pin Weight: 508 grams
- Flat Top: -1.5cc
- Pin Size: .927' dia., 2.300' long, .150' wall (110 grams)
- Round Wire Locks: .061' wide
- Ring Grooves: 1.5mm Top; 1.5mm Middle; 3mm Bottom
Part TypePiston
BrandMANLEY
Package Height3.7
Package Width9.3
Package Length18.4
Weight11.92 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number597880C-8
Package Qty1
Package TypeEA
