Vehicle Info NeededMANLEYPART NUMBER: 660-598000C-1

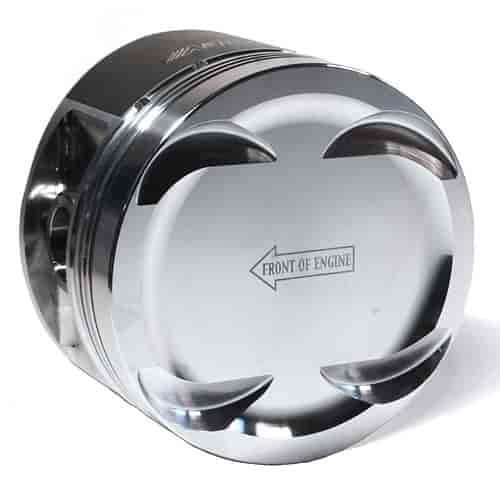

Ford 5.0L Coyote Dome Piston +3.75cc Dome Top
$11267
Ships on 09/09/2026
Lowest Price Guarantee- Ford 5.0L Coyote Dome Piston
- +3.75cc Dome Top
- 11.0:1 Compression Ratio
- 3.630'' Bore
- 3.650'' Stroke
- 5.933'' Rod
- 1.165'' Comp. Height
- 1/pkg.
Technical Specs: - Compression Ratio: 11.0:1
- Compression Height: 1.165'
- Piston and Pin Weight: 474 grams
- Dome Top: +3.75cc
- Pin Size: 2.500' long, .150' wall
- Ring Grooves: 1.2mm Top; 1.2mm Middle; 3.0mm Bottom
- Piston Clearance: .003' measured 0.850' from bottom of the oil ring
Part TypePiston
BrandMANLEY
Package Height3.3
Package Width4.5
Package Length4.5
Weight1.21 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number598000C-1
Package Qty1
Package TypeEA
