Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

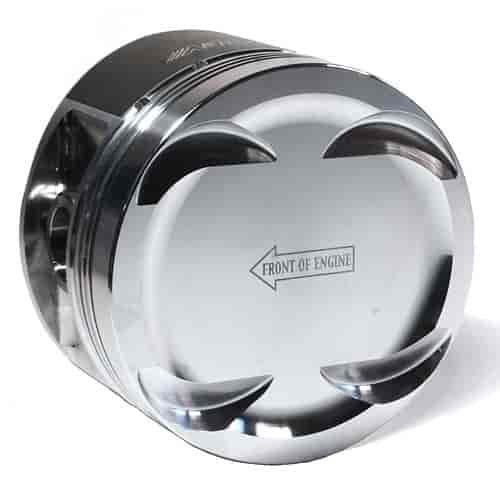

- Ford 5.0L Coyote Dish Top Piston
- -12cc Dish Top
- 9.0:1 Compression Ratio
- 3.635'' Bore
- 3.650'' Stroke
- 5.933'' Rod
- 1.165'' Comp. Height
- 1/pkg.
Technical Specs: - Compression Ratio: 9.0:1
- Compression Height: 1.165'
- Piston and Pin Weight: 471 grams
- Dish Top: -12cc
- Pin Size: 2.500' long, .150' wall
- Ring Grooves: 1.2mm Top; 1.2mm Middle; 3.0mm Bottom
- Piston Clearance: .003' measured 0.850' from bottom of the oil ring
Part TypePiston
BrandMANLEY
Package Height5.0
Package Width5.0
Package Length5.0
Weight1.87 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number598105C-1
Package Qty1
Package TypeEA
