Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
-24cc Dish Top Pistons6.125'' Rod Length w/ 4.050'' Stroke

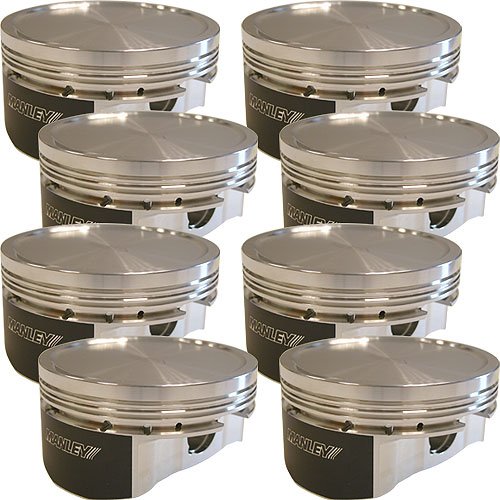

- Chrysler 6.1L Hemi Stroker Series Dish Pistons
- -24cc Dish Top
- 4.080'' Bore
- 4.050'' Stroke
- 6.125'' Rod
- 1.085'' Comp. Height
- 9.09:1 CR (74cc)
- 8/pkg.
Technical Specs: - Compression Ratio: 9.09:1 (74cc)
- Compression Height: 1.085'
- Piston and Pin Weight: 498 grams
- Dish Top: -24cc
- Pin Size: .927' dia., 2.300' long, .150' wall (110 grams)
- Round Wire Locks: .061' wide
- Ring Grooves: 1.5mm Top; 1.5mm Middle; 3mm Bottom
Part TypePiston
BrandMANLEY
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number598780C-8
Package Qty1
Package TypeEA
