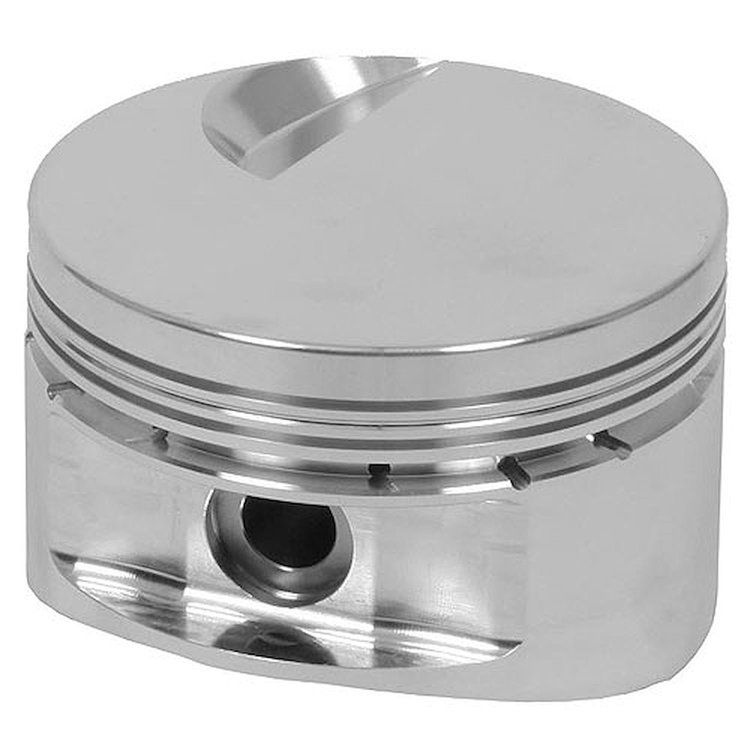

BB-Chevy Flat Top Piston 4.600" Bore (+.100" )

Product Discontinued

MANLEYPART NUMBER: 660-696080-1

BB-Chevy Flat Top Piston 4.600" Bore (+.100" )

Name: BB-Chevy Flat Top Piston 4.600" Bore (+.100" )
Brand: MANLEY
SKU: 660-696080-1
Price: 102.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Flat Top Pistons

6.135'' Rod Length w/4.000'' Stroke (Std Deck)

6.535'' Rod Length w/4.000'' Stroke (Tall Deck)

1.645'' Compression Distance

4.600'' Bore (+.100'')
532ci - 6.135'' Rod w/4.000'' Stroke (Std Deck)
532ci - 6.535'' Rod w/4.000'' Stroke (Tall Deck)
1.645'' Comp. Height
1/pkg.

Technical Specs:
Compression Ratio: 9.4:1 (112cc); 9.0:1 (118cc); 8.7:1 (124cc)
Compression Height: 1.645'
Piston Weight: 755 grams
Flat Top: -3.0cc valve relief
Pin Size: 0.990' dia, 2.930' long, .180' wall (170 grams)
Spiral Locks: .042' wide (4 per piston)
Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
Piston Clearance: .006' measured 1.100' from bottom of the oil ring
Valve Notch: .300' Intake

Part TypePiston

BrandMANLEY

Package Height4.25

Package Width5.5

Package Length7.75

Weight1.25 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number696080-1

Package Qty1

Package TypeEA
