Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

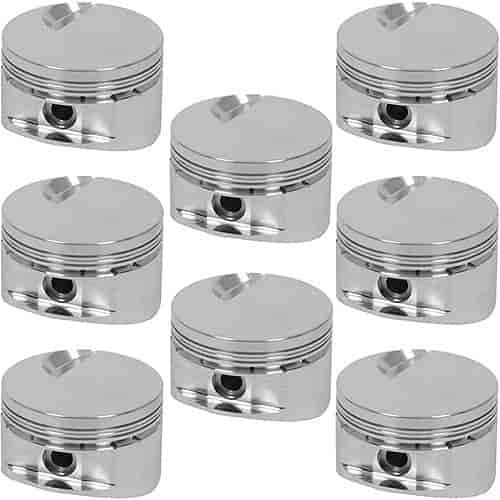

Flat Top Pistons6.135'' Rod Length w/4.250'' Stroke (Std Deck) 6.535'' Rod Length w/4.250'' Stroke (Tall Deck) 1.520'' Compression Distance
- BB-Chevy Flat Top Pistons
- 4.500'' Bore
- 541ci - 6.135'' Rod w/4.250'' Stroke (Std Deck)
- 541ci - 6.535'' Rod w/4.250'' Stroke (Tall Deck)
- 1.520'' Comp. Height
- 8/pkg.
Technical Specs: - Compression Ratio (4.500' Bore x 4.250' Stroke): 9.6:1 (112cc); 9.2:1 (118cc); 8.8:1 (124cc)
- Compression Height: 1.520'
- Piston Weight: 676 grams
- Flat Top: -3.0cc valve relief
- Pin Size: 0.990' dia, 2.930' long, .180' wall (170 grams)
- Spiral Locks: .042' wide (4 per piston)
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Piston Clearance: .006' measured 1.100' from bottom of the oil ring
- Valve Notch: .300' Intake
Part TypePiston
BrandMANLEY
Package Height7.75
Package Width9.0
Package Length9.0
Weight10.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number696200-8
Package Qty1
Package TypeEA
