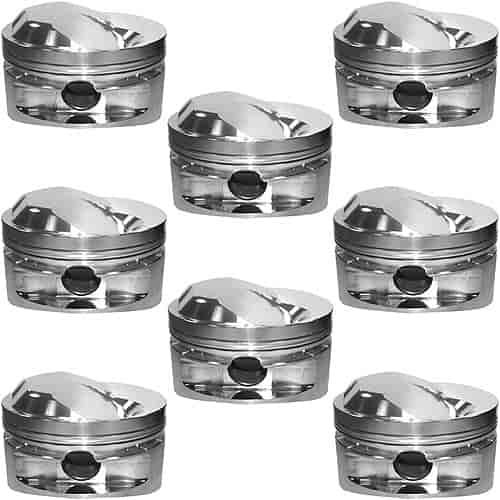

Big Block Chevy Hollow Dome Pistons 4.500" Bore

Vehicle Info Needed

MANLEYPART NUMBER: 660-697700-8

Big Block Chevy Hollow Dome Pistons 4.500" Bore

Name: Big Block Chevy Hollow Dome Pistons 4.500" Bore
Brand: MANLEY
SKU: 660-697700-8
Price: 857.29 USD
Availability: InStock

^$857²⁹

Ships on 09/09/2026

Lowest Price Guarantee

43cc Hollow Dome Pistons

1.520'' Compression Distance

4.500'' Bore
541ci: 6.135'' Rod with 4.250'' Stroke (Std Deck)
541ci: 6.535'' Rod with 4.250'' Stroke (Tall Deck)
8/pkg

Technical Specs:
Compression Ratio: 14.3:1 (112cc); 13.4:1 (118cc); 12.7:1 (124cc)
Compression Height: 1.520'
Piston Weight: 723 grams
Inverted Dome Top: 43cc
Pin Size: 0.990' dia, 2.930' long, .150' wall (147 grams)
Spiral Locks: .042' wide (4 per piston)
Ring Grooves: .043' Top; .043' Middle; 3/16' Bottom
Piston Clearance: .006' measured 1.100' from bottom of the oil ring
Valve Notch: .275' Intake
Exhaust Valve: +.090'

Part TypePiston

BrandMANLEY

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number697700-8

Package Qty1

Package TypeEA
