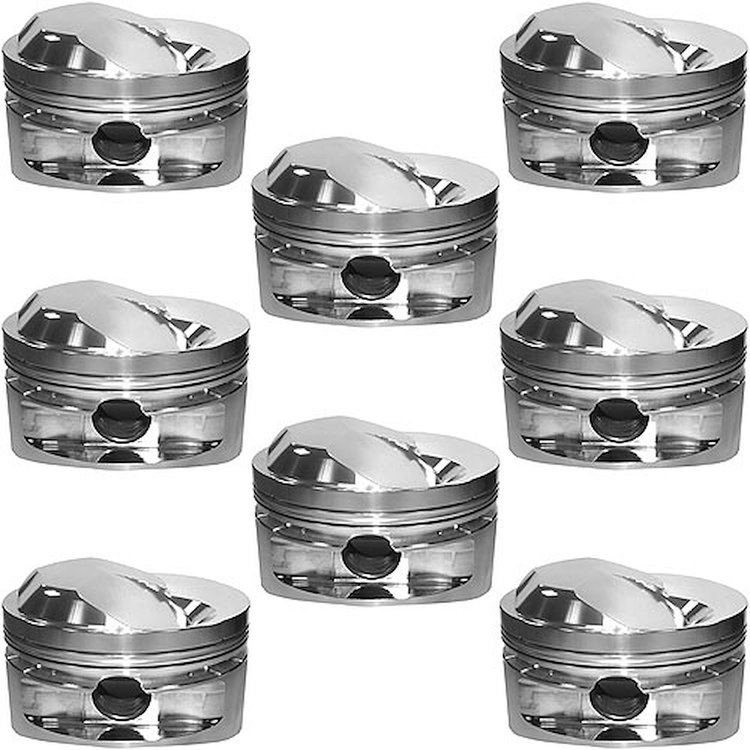

Big Block Chevy Hollow Dome Pistons 4.600" Bore (+.100" )

Name: Big Block Chevy Hollow Dome Pistons 4.600" Bore (+.100" )
Brand: MANLEY
SKU: 660-697780-8
Price: 857.29 USD
Availability: InStock

^$857²⁹

Ships Tomorrow

Lowest Price Guarantee

43cc Hollow Dome Pistons

1.520'' Compression Distance

4.600'' Bore (+.100'')
565ci: 6.135'' Rod with 4.250'' Stroke (Std Deck)
565ci: 6.535'' Rod with 4.250'' Stroke (Tall Deck)
8/pkg

Technical Specs:
Compression Ratio: 14.9:1 (112cc); 14.0:1 (118cc); 13.2:1 (124cc)
Compression Height: 1.520'
Piston Weight: 763 grams
Inverted Dome Top: 43cc
Pin Size: 0.990' dia, 2.930' long, .150' wall (147 grams)
Spiral Locks: .042' wide (4 per piston)
Ring Grooves: .043' Top; .043' Middle; 3/16' Bottom
Piston Clearance: .006' measured 1.100' from bottom of the oil ring
Valve Notch: .275' Intake
Exhaust Valve: +.090'

Lightweight Platinum Series Pistons: Excellent for Drag Racing

Popular among professional engine builders & elite tuners, Manley Pistons use domestic high-strength 2618 alloy forgings and unique-to-Manley fixturing that allows skirt turning/ring groove machining to be performed in a single operation; this ensures the ultimate ring groove-to-skirt squareness for a better ring seal. Plus, powerful Manley cam & barrel (skirt) profiles are "easy" on cylinder walls.

Shared Features:

43cc Dome Volume (Hollow)
.160'' Crown Thickness
Lateral Gas Ports

.275'' Intake Valve Notch
+.090'' Exhaust Valve
.042" Spiral Locks (4 per piston)
Full Banded Skirt for Increased Stability
Ring Grooves: .043'' Top; .043'' Second; 3/16'' Oil Ring
Chrome-Moly Wrist Pin: 2.930'' Long x .990'' Diameter x .150'' Wall Technical Notes
Deck Heights: 9.8'' Standard and 10.2'' Tall
Recommended Piston Clearance: .006'' Measured 1.100'' from Bottom of Oil Ring
