Champion-Series Low-Profile Electric Cooling Fan, Diameter: 10 in., Type: Single
InfoVehicle Info Needed
MARADYNE FANSPART NUMBER: 303-M103K

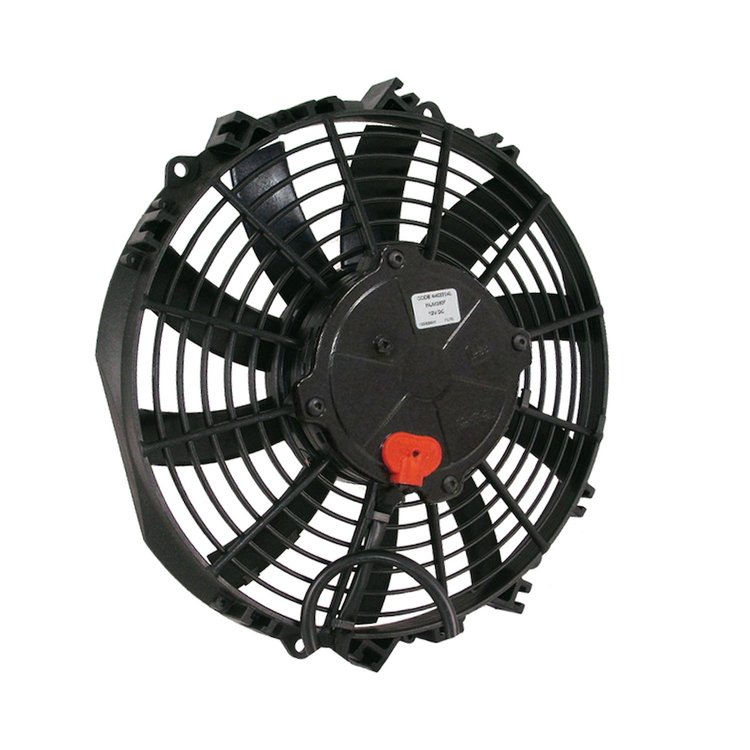

Champion-Series Low-Profile Electric Cooling Fan, Diameter: 10 in., Type: Single

$13833
ShippingShips on 11/25/2026
Lowest PriceLowest Price Guarantee

Items You Need

Electric Cooling Fan Pigtail Connector

MARADYNE FANS

Electric Cooling Fan Pigtail Connector

Part Number : 303-MFA113
$699
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

Part Number : 555-10560
$4899$53.99
You Save$5.00
Adjustable Temperature Switch Kit, 32-248 degrees F

MARADYNE FANS

Adjustable Temperature Switch Kit, 32-248 degrees F

Part Number : 303-MFA120
$3372
Cooling System Pressure Tester Kit

JEGS

Cooling System Pressure Tester Kit

Part Number : 555-W89733
$19399$213.99
You Save$20.00

10 in. Diameter
Champion-Series Low-Profile Electric Cooling Fan
  • 10 in. Diameter
  • S-Blade
  • Reversible
  • 130 W
  • 950 cfm
  • 7.9 Amp Draw
  • Black

    Maradyne Fans M103K Champion-Series Low-Profile Electric Cooling Fan Features:

    • Lowest profile high-performance reversible fan on the market
    • Sealed motor tested in accordance with DIN EN 60529, dust and water-resistant to IP68
    • Quiet, reversible S-blade design – works as a puller or pusher fan
    • All glass-filled nylon construction includes (4) 90-degree mounting feet and nylon tie kit
    • Includes locking mating pigtail MFA113 connector and rubber spacers MFA112 for proper spacing off of heat exchanger
    • Industry-Leading Cooling Fan Performance

      Maradyne Champion-Series Low-Profile Fans are some of the highest-performing and lowest-profile electric cooling fans on the market today. These fans are dynamically balanced with an S-blade design that delivers smooth, quiet operation and is reversible for puller or pusher style. The motors are sealed and are IP68 dust and water-resistant for use in most environments. Each includes a locking mating pigtail connector and rubber isolator spacers. Available in 8 through 16-inch diameters.

    Part TypeElectric Fan
    Product LineMaradyne Fans Champion-Series Low-Profile Electric Cooling Fans
    BrandMARADYNE FANS
    Package Height3.8
    Package Width14.0
    Package Length14.3
    Weight4.2 PG
    Part CategoryPerformance Parts
    Blade MaterialNylon
    Fan QuantitySingle
    Shroud MaterialNylon
    QuantitySold individually
    Mounting Hardware IncludedYes
    Electrical Or MechanicalElectrical
    Blade TypeS-Blade
    Blade ColorBlack
    TypePuller or Pusher
    Amp Draw7.90 amps
    Part FitmentUniversal
    Maximum Fan Cfm950 cfm
    Shroud ColorBlack
    Diameter10 in (254 mm)
    Vendor Part NumberM103K
    Package Qty1
    Package TypeEA
