Vehicle Info NeededMARADYNE FANSPART NUMBER: 303-M143K

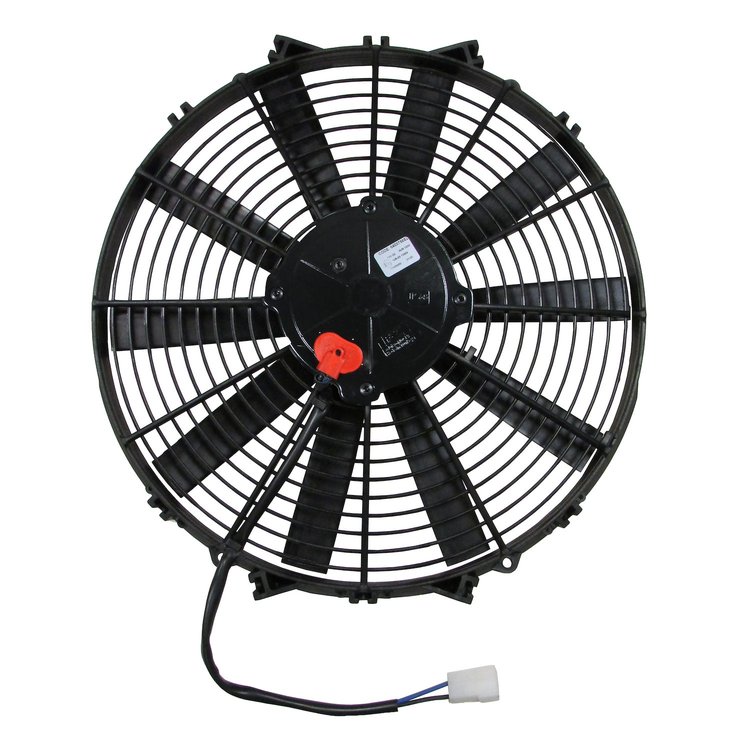

Champion-Series Ultra Thin Electric Cooling Fan, Diameter: 14 in., Type: Single
$12966$144.07You Save$14.41
Ships on 09/16/2026
Lowest Price Guarantee14 in. Diameter
Champion-Series Ultra Thin Electric Cooling Fan14 in. Diameter Straight Blade Puller Only 130 W 1163 cfm 8.5 Amp Draw Black
Maradyne Fans M143K Champion-Series Ultra Thin Electric Cooling Fan Features:
- Sealed motor tested in accordance with DIN EN 60529, dust and water-resistant to IP68
- Quiet, straight blade design – works as a puller only
- All glass-filled nylon construction includes (4) 90-degree mounting feet and a nylon tie kit
- Includes locking mating pigtail MFA113 connector and rubber spacers MFA112 for proper spacing off of heat exchanger
High-Performance Cooling with Minimal Spacing
Maradyne Champion-Series Ultra Thin Electric Cooling Fans have a depth of only 2.250 inches and are ideal for applications with tight clearances from aftermarket front drive systems or oversized radiators. These fans are a puller style and dynamically balanced with a straight-blade design that delivers smooth, quiet operation. The motors are sealed and are IP68 dust and water-resistant for use in most environments. Each includes a locking mating pigtail connector and rubber isolator spacers. Available in 14 and 16-inch diameters.
Part TypeElectric Fan
Product LineMaradyne Fans Champion-Series Ultra Thin Electric Cooling Fans
BrandMARADYNE FANS
Package Height4.5
Package Width18.8
Package Length19.0
Weight5.55 PG
Part CategoryPerformance Parts
Blade MaterialNylon
Fan QuantitySingle
Shroud MaterialNylon
QuantitySold individually
Electrical Or MechanicalElectrical
Blade TypeStraight
Blade ColorBlack
TypePuller
Amp Draw8.50 amps
Part FitmentUniversal
Maximum Fan Cfm1,163 cfm
Shroud ColorBlack
Diameter14 in (355.6 mm)
Vendor Part NumberM143K
Package Qty1
Package TypeEA
