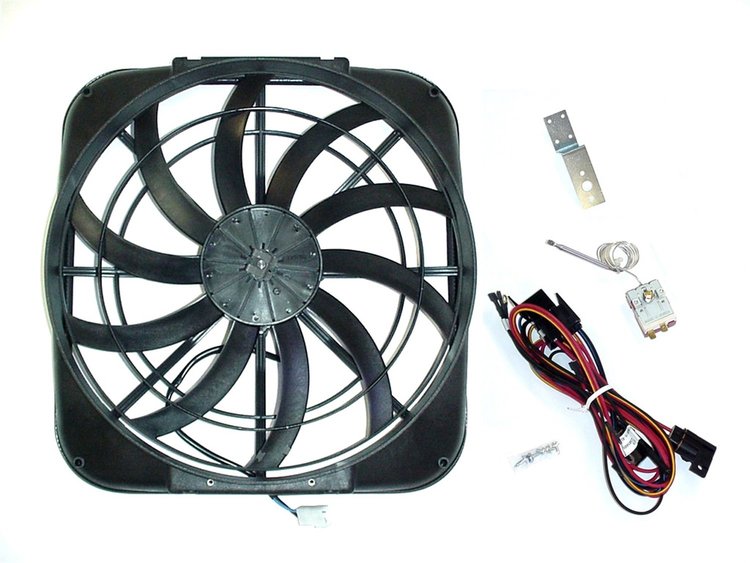

Mach One Series Electric Cooling Fan with Harness, Diameter: 16 in., Type: Single
InfoVehicle Info Needed
MARADYNE FANSPART NUMBER: 303-MM12KC

Mach One Series Electric Cooling Fan with Harness, Diameter: 16 in., Type: Single

$39583
ShippingShips on 11/25/2026
Lowest PriceLowest Price Guarantee

Items You Need

Electric Cooling Fan Pigtail Connector

MARADYNE FANS

Electric Cooling Fan Pigtail Connector

Part Number : 303-MFA113
$699
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

Part Number : 555-10560
$4899$53.99
You Save$5.00
Adjustable Temperature Switch Kit, 32-248 degrees F

MARADYNE FANS

Adjustable Temperature Switch Kit, 32-248 degrees F

Part Number : 303-MFA120
$3372
Cooling System Pressure Tester Kit

JEGS

Cooling System Pressure Tester Kit

Part Number : 555-W89733
$19399$213.99
You Save$20.00

Mach One Series Fan
  • 16 in. Diameter
  • 16 in. W x 17 in. H
  • S-Blade
  • Pusher/Puller
  • 225 W
  • 2160 cfm
  • 17.7 Amp Draw
  • Black
  • Includes Harness PN[MFA100]

    Maradyne Fans MM12KC Mach One Series Electric Cooling Fan Features:

    • Rubber seal eliminates vibration and increases airflow
    • Sealed motor tested in accordance with DIN EN 60529, dust and water-resistant to IP68
    • Shrouded quiet, S-blade design – works as a puller
    • All glass-filled nylon construction
    • Includes locking mating pigtail MFA113 connector
    • Rubber-Sealed Electric Fan for Exceptional Engine Cooling

      Maradyne Mach One Series Fans feature a rubber-shielded shroud that provides added vibration resistance and increased airflow for extreme cooling performance. These fans are a puller style and are dynamically balanced with an S-blade design that delivers smooth, quiet operation. The motors are sealed and are IP68 dust and water-resistant for use in most environments. Each includes a locking mating pigtail connector and rubber isolator spacers. Available in 16-inch diameter.

    Part TypeElectric Fan
    Product LineMaradyne Fans Mach One Series Electric Cooling Fans
    BrandMARADYNE FANS
    Package Height5.0
    Package Width17.0
    Package Length19.0
    Weight12.91 PG
    Part CategoryPerformance Parts
    Blade MaterialNylon
    Fan QuantitySingle
    Shroud MaterialNylon
    QuantitySold individually
    Electrical Or MechanicalElectrical
    Blade TypeS-Blade
    Blade ColorBlack
    TypePuller or Pusher
    Amp Draw17.7 amps
    Part FitmentUniversal
    Maximum Fan Cfm2,160 cfm
    Shroud ColorBlack
    Diameter16 in (406.4 mm)
    Vendor Part NumberMM12KC
    Package Qty1
    Package TypeEA
