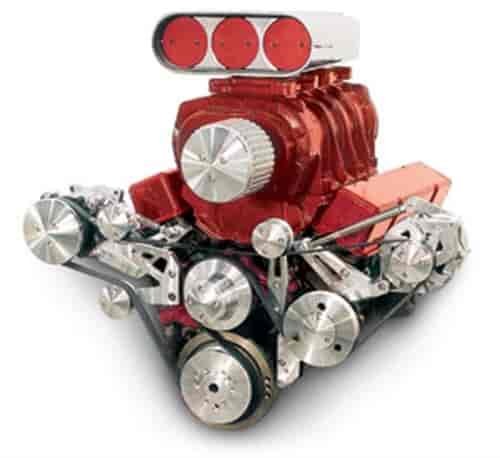

Vehicle Info NeededOutward Mount High Water Flow Serpentine Drive Kit (A)=4-3/16" Includes Brackets and Pulleys to Install:
Ships Tomorrow
Lowest Price Guarantee- Outward Mount High Water Flow Serpentine Drive Kit
- (A)=4-3/16"
Includes Brackets and Pulleys to Install: - Reverse Rotation Short Water Pump
- Driver Side Alternator
- Sanden 505 or 508 A/C Compressor
Kit drives: Alternator
GM 6-12 o'clock mount 6" or 7" dia. alternatorYes A/C
Sanden 505 or 508 serpentine compressorYes Water Pump
1984-91 Corvette - Reverse rotationYes Saginaw Keyway Power Steering Pump
1966-74 keyway Saginaw pump with canister- Saginaw Press Fit Power Steering Pump
1975-78 press fit Saginaw pump with canister- Remote Reservoir Power Steering Pump
1987 Sunbird small remote reservoir pump- Belt Size
Dayco 6-rib belt92.23" - Uses Gates belt #465-K060915
March Chevy Small Block Blower, Ram Jet and Multi-Carbs Outward Mount Serpentine Kits is designed to solve the issue with mounting your accessories on engines with blowers, superchargers, Ram Jet style fuel injection or multiple carburetors. They replace your low performance V-belts, pulleys, brackets and eliminate any issues with belt throwing. Complete and simple to bolt on...these "Deluxe" outward mount kits use original style mounting brackets to locate your alternator and A/C outside the engine outline and back towards the cylinder heads, ideal for engine compartments with minimal engine to radiator clearance. Precision CNC-machined from solid billet 6061-T6 aluminum to fit perfectly as well as handle high torque and vibration.
Show More
The high tensile strength of the material combined with the hard coating on all high wear areas means a much longer duty life than common cast pulleys with no chance of any type of fracturing or structural failure. The street rod ratio pulleys allow increased water flow and fan speed, which is critcial at low speed driving. All pulleys and brackets have a "No Polishing" maintenance-free clear powdercoating. An adjustable stainless steel tensioning rod with chrome-moly rod ends and mounting hardware is also included.
Kits Include:
- Alternator Bracket
- Alternator Pulley with Fan and Nose Cover
- Water Pump Pulley with Nose Cover
- Crankshaft Pulley
- Two Idler Brackets; One with Dual Idlers, One with Single Idler
- Heater Hose Extension Fitting
- Tensioning Rods & Adjustable Rod Ends
- Grade 8 Mounting Hardware Power Steering Kits Add:
- Power Steering Bracket & Pulley A/C Kits Add:
- A/C Bracket, Hardware and Nose Cover Kits Require:
- Fits most 1955 and newer Chevys and 1963-82 Corvettes with Blower/Supercharger, Ram Jet style fuel injection or multiple carburetors.
- Will not fit 62-67 Novas with factory shock towers
- Up to 17'' Clearance from water pump centerline to side of engine compartment (see diagram below)
- Water pump pulley with nose cover extends 6.5'' from engine block, plus you will need to consider clearance for a mechanical or electric cooling fan
- A reverse rotation 1984-91 Corvette water pump
- Two accessory holes in cylinder head for mounting
- If using ZZ4 timing cover you will have to modify short water pump for clearance
- GM 10si style alternator with mounting tabs at 6 and 12 O'Clock
- Power steering kits require power steering pump style specified, must have side motor mounts on 1955-57 Chevy, must use remote reservoir style on Chevelle, Monte Carlo, El Camino, 1970-up Camaro and S-10
- A/C kits require a Sanden 505 or 508 Compressor
