Product Discontinued
MARCH PERFORMANCEPART NUMBER: 655-20743

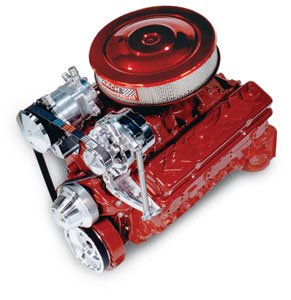

Inward Mount Performance Serpentine Drive Kit Includes Brackets and Pulleys to Install: Standard Rotation Short Water Pump
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Performance Ratio Drive KitsStandard Rotation Passenger Side Alternator
- Inward Mount Performance Serpentine Drive Kit
- Standard Rotation Short Water Pump
- Passenger Side Alternator
Increases Horsepower - Not Recommended for Hot Running CarsAlternator A/C Standard
Rotation
Water PumpSaginaw
Keyway
P/S PumpSaginaw
Press Fit
P/S PumpRemote
Reservoir
Power SteeringBelt Size Yes - Yes, Standard - - - 47.5' - Uses Gates belt #465-K060470
Includes Brackets and Pulleys to Install:
The March Chevy Small Block Ultra Inward Mount Serpentine Kits are precision CNC machined from solid billet 6061-T6 aluminum to fit perfectly, handle high torque and vibration. This bracket kit comes complete with stainless steel tensioning rods and chromoly rod ends for high performance operation. They are powder coated to eliminate polishing in those hard to reach places. Matching serpentine pulleys are precision CNC machined from 6061-T6 aluminum and will not fracture like common cast pulleys. The street rod ratio increases water flow and fan speed helping at critical low speed driving!
Show More
Kits Include:
- Alternator Bracket
- Alternator Pulley with Fan and Nose Cover
- Water Pump Pulley with Nose Cover
- Crankshaft Pulley
- Tensioning Rods & Adjustable Rod Ends
- Grade 8 Mounting Hardware Power Steering Kits Add:
- Power Steering Bracket & Pulley A/C Kits Add:
- A/C Bracket, Hardware and Nose Cover Kits Require:
- 13'' Clearance from water pump centerline to hood (see diagram below)
- Passenger side cylinder head needs one hole tapped on 1969-84, 1985-up heads are bolt on (Will work with Vortec heads)
- If using ZZ4 timing cover you will have to modify short water pump for clearance
- GM 10si style alternator with mounting tabs at 6 and 12 O'Clock
- Most kits require a standard rotation small block Chevy short water pump
- Power steering kits require power steering pump style specified
- A/C kits require a reverse rotation 1984-91 Corvette water pump and Sanden 505 or 508 Compressor
Product LineMarch Chevy Small Block Ultra Inward Mount Serpentine Drive Kits
BrandMARCH PERFORMANCE
Package Height12.0
Package Width12.2
Package Length17.8
Weight9.3 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
