Vehicle Info NeededMARCH PERFORMANCEPART NUMBER: 655-22053

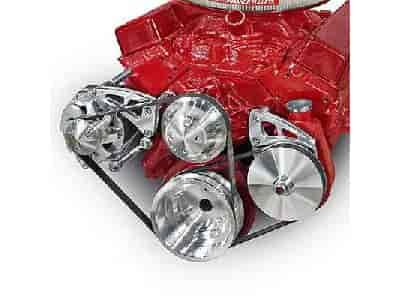

Mid Mount Serpentine Conversion Kit SB-Chevy - Long Water Pump
$59500
2 left in stock
Ships Today
Lowest Price GuaranteeMid-Mount Design Kit
Ultra Series
High Water Flow Ratio PulleysMid-Mount Alternator - Passenger Side Mid-Mount Power Steering - Driver Side Outward Mount A/C (if equipped) - Driver Side
Ultra Series
High Water Flow Ratio Pulleys
- Mid Mount Serpentine Conversion Kit
- SB-Chevy - Long Water Pump
- Ultra Series
- High Water Flow Ratio
- Drives Alternator, Water Pump & Saginaw Keyway-style Power Steering Pump
Ultra Series Kit Includes: - Crankshaft pulley
- Water pump pulley with nose cover
- Alternator bracket, pulley with alternator fan and nose cover
- Power steering kit includes pulley and pump brackets
- Stainless steel tensioning rod with chrome moly rod ends
- Superior grade-8 mounting hardware
Kit drives: Alternator
GM 6-12 o'clock mount 6" or 7" dia. alternatorYes A/C
Sanden 505 or 508 serpentine compressor- Water Pump
Long water pump - Standard rotationYes Saginaw Keyway Power Steering Pump
1966-74 keyway Saginaw pump with canisterYes Saginaw Press Fit Power Steering Pump
1975-78 press fit Saginaw pump with canister- Saginaw Metric Power Steering Pump
1978-87 press fit Saginaw metric pump- Alternator Belt Size
Dayco 6-rib belt42.5" Power Steering Belt Size
Dayco 6-rib belt35" - Uses Gates alternator belt #465-K060420
- Uses Gates power steering belt #465-K060345
High-Performance Engine Drive Systems
March Performance Serpentine Conversion kits replace your low-performance V-belts, pulleys, brackets and eliminate any issues with belt throwing. Simple to bolt-on, these kits retain your standard rotation water pump. Standard and mid-mount kits locate your accessories close to the engine center and in front of the cylinder heads, ideal for narrow engine compartments. Precision CNC-machined solid billet 6061-T6 aluminum components fit perfectly and handle high torque and vibration. Available in three series to suit space and budget requirements.
Show More
- Ultra Series is the top-of-the-line kit with all necessary pulleys, alternator fan, mounting brackets, and hardware
- Deluxe Series is ideal for cars with a minimal engine to radiator clearance. This kit includes everything available in the Ultra Series except for most pulley nose covers and alternator fan
- Custom Series is a low-cost system that gives up nothing in performance. Same as the Deluxe Series kit but with a protective silver powder-coat finish
Part TypePulley Kit
Product LineMarch Chevy Small Block Standard & Mid-Mount Serpentine Kits
BrandMARCH PERFORMANCE
Package Height9.1
Package Width9.4
Package Length16.0
Weight10.5 PG
Part CategoryPerformance Parts
Hardware IncludedYes
Idler Brackets IncludedNo
Idler/Tensioner IncludedNo
Air Conditioning Bracket IncludedNo
Crankshaft Pulley Grooves6-groove, serpentine
Alternator Pulley IncludedYes
Alternator Nose Cover IncludedYes
Water Pump Pulley Grooves6-groove, serpentine
Bracket MaterialBillet aluminum
Pulley Set StyleHigh water flow ratio
Crankshaft Nose Cover IncludedNo
Water Pump Pulley IncludedYes
Alternator Brackets IncludedYes
Power Steering Pulley AttachmentKeyway
Pulley StyleSerpentine Pulley
Pulley FinishClear powdercoated
Crankshaft Pulley IncludedYes
QuantitySold as a kit
Power Steering Brackets IncludedYes
Alternator Pulley Grooves6-groove, serpentine
Air Conditioning Cover IncludedNo
Air Conditioning Pulley IncludedNo
Power Steering Pulley IncludedYes
Alternator Fan IncludedYes
Power Steering Pump StyleSaginaw
Power Steering Pulley Grooves6-groove, serpentine
Idler Cover IncludedNo
Part FitmentSemi Universal
Bracket FinishClear powdercoated
Pulley MaterialBillet Aluminum
Water Pump Nose Cone IncludedYes
Vendor Part Number22053
Package Qty1
Package TypeEA
