Dimensions

Features:

• 6,000 lbs. maximum lift capacity
• 45-second full rise lift time
• Clear under-car access - easily access engine undersides, transmissions, drive-shafts, starters, differential and more
• Built-in wheels allow for convenient storage when not in use
• Internally threaded recessed drop-in anchors and quick-connect/disconnect hydraulic couplers provide a fast and easy set-up
• Mobile power unit cart with a 6 ft. long industrial-grade power cord (uses a dual voltage single-phase motor that requires 110-volts AC and a 25 amp breaker)
• The lift raises with a simple push-button switch and lowers with a push-lever control
• Quick-disconnect hoses can be positioned easily for single or dual column operation
• Adjustable lifting arms for lifting a variety of different vehicles with a uni-body construction, OEM pick-up points, or wide and/or narrow frame configurations

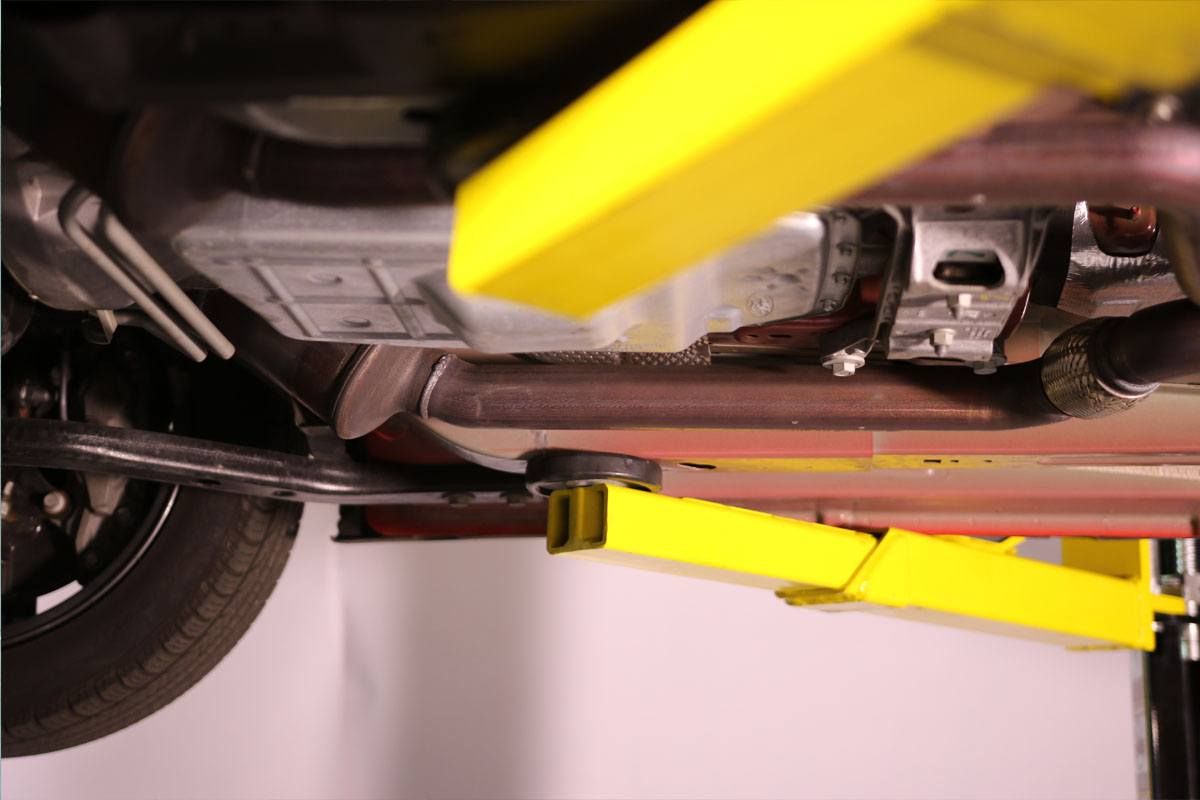

• Low-profile arms fit under most compact and sport vehicles
• Maintenance-free slide blocks never need lubrication and last virtually the life of the lift
• Single-piece constructed columns for added strength and less fatigue
• Automotive Lift Institute (ALI) certified
• Low and medium stackable adapter sets are included

Safety Features:

• Low-pressure HVLP Direct-Drive cylinders eliminate the need for lifting chains or screw mechanisms
• Velocity-fuse safety valves are integrated into the hydraulic cylinders
• A cast iron gear flow divider provides equal lifting for uniform hydraulic power
• Rugged safety lock bars are capable of holding 3X the rated lifting capacity
• Each time the lift is raised, arm restraints are automatically engaged
• Detailed installation, maintenance and safety instructions are included
