Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
20 in. Diameter

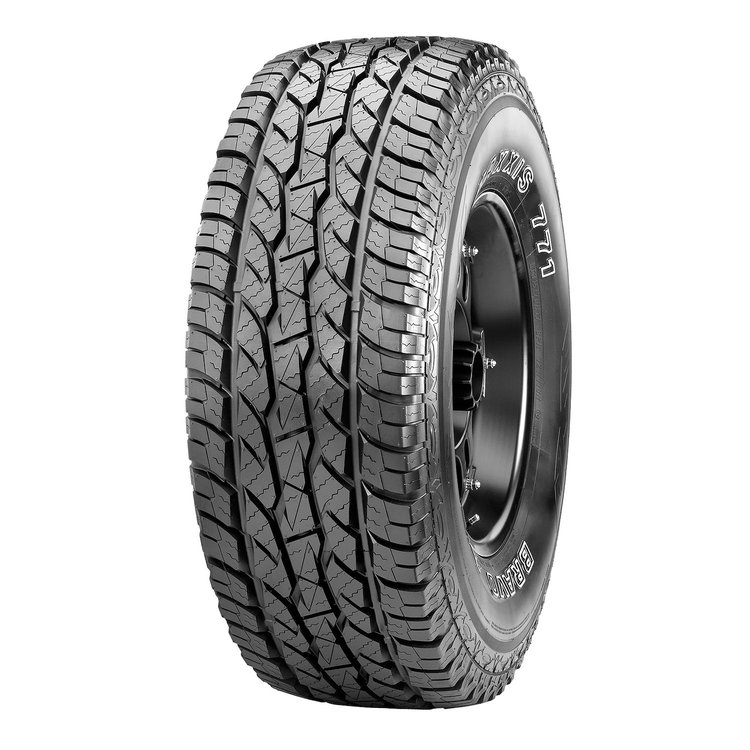

BRAVO AT-771 TireSize: 275/55R20 Load Index/Speed Rating: 117T XL Sidewall: Blackwall Sold Individually
Maxxis Tire TP00028300 Features:
A premium all-terrain engineered to handle your favorite trail or work route, the Bravo AT-771 was designed to tackle asphalt, dirt, mud and everything in between. The unique pattern features wave siping and staggered shoulders for extra off-road traction, while the multi-pitch tread blocks minimize pattern noise for a refined driving experience.
- Multi-pitch tread pattern design minimizes pattern and road noise while maintaining excellent off-road performance
- Staggered shoulder lug design creates a biting edge for extra off-road traction
- 3D tread blocks provide additional tread stiffness to minimize irregular wear and increase overall stability
- Four unique U-shaped circumferential grooves offer excellent hydroplaning resistance while minimizing rock retention
- Jointless spiral-wound cap ply maximizes ride refinement and durability
- Overall construction designed to improve off-road stability and handling
- M+S All-Season rated
- Overall Diameter: 31.8 in.
- Section Width: 10.8 in.
- Tread Depth (in.): 13/32
- Max Load Single (lbs.): 2835
- Minimum Recommended Wheel Width: 7.5 in.
- Maximum Recommended Wheel Width: 9.5 in.
- UTQG Rating: 500 A B
- Maximum Inflation Pressure: 50
- Tire Weight: 43.5 lbs.
Part TypeTire
BrandMAXXIS
Package Height10.8
Package Width31.8
Package Length31.8
Weight43.5 PG
Part CategoryReplacement Parts
Tire Size275/55R20
Speed Rating117T XL
Minimum Recommended Wheel Width7.5 in.
Max Load Single (Lbs.)2835
Tire TypeLight Truck Tires
Overall Diameter31.8 in.
QuantitySold Individually
Section Width10.8 in.
Sidewall StyleBlackwall
Wheel Diameter20 in.
Part FitmentUniversal
Tread Depth (In.)13/32
Maximum Recommended Wheel Width9.5 in.
Maximum Inflation Pressure50
Vendor Part NumberTP00028300
Package Qty1
Package TypeEA
