MAXXISPART NUMBER: 270-TP41015200

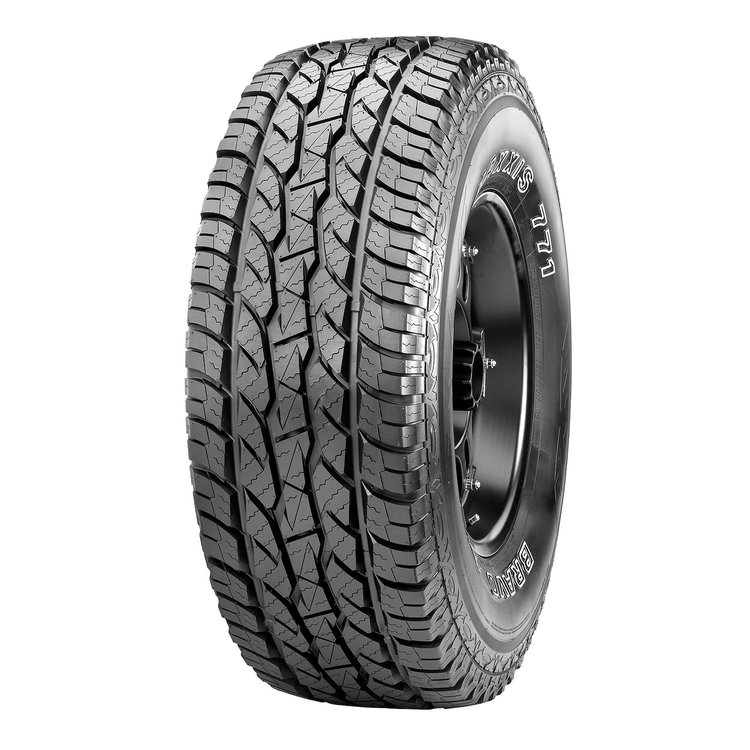

TP41015200 BRAVO AT-771 Tire, 235/60R16
$17199
16 in. Diameter
BRAVO AT-771 TireSize: 235/60R16 Load Index/Speed Rating: 104H XL Sidewall: Blackwall Sold Individually
Maxxis Tire TP41015200 Features:
A premium all-terrain engineered to handle your favorite trail or work route, the Bravo AT-771 was designed to tackle asphalt, dirt, mud and everything in between. The unique pattern features wave siping and staggered shoulders for extra off-road traction, while the multi-pitch tread blocks minimize pattern noise for a refined driving experience.
- Multi-pitch tread pattern design minimizes pattern and road noise while maintaining excellent off-road performance
- Staggered shoulder lug design creates a biting edge for extra off-road traction
- 3D tread blocks provide additional tread stiffness to minimize irregular wear and increase overall stability
- Four unique U-shaped circumferential grooves offer excellent hydroplaning resistance while minimizing rock retention
- Jointless spiral-wound cap ply maximizes ride refinement and durability
- Overall construction designed to improve off-road stability and handling
- M+S All-Season rated
- Overall Diameter: 27.1 in.
- Section Width: 9.5 in.
- Tread Depth (in.): 13/32
- Max Load Single (lbs.): 1984
- Minimum Recommended Wheel Width: 6.5 in.
- Maximum Recommended Wheel Width: 8.5 in.
- UTQG Rating: 500 A B
- Maximum Inflation Pressure: 50
- Tire Weight: 28.2 lbs.
Part TypeTire
BrandMAXXIS
Package Height9.5
Package Width27.1
Package Length27.1
Weight28.2 PG
Part CategoryReplacement Parts
Tire Size235/60R16
Speed Rating104H XL
Minimum Recommended Wheel Width6.5 in.
Max Load Single (Lbs.)1984
Tire TypeLight Truck Tires
Overall Diameter27.1 in.
QuantitySold Individually
Section Width9.5 in.
Sidewall StyleBlackwall
Wheel Diameter16 in.
Part FitmentUniversal
Tread Depth (In.)13/32
Maximum Recommended Wheel Width8.5 in.
Maximum Inflation Pressure50
Vendor Part NumberTP41015200
Package Qty1
Package TypeEA
