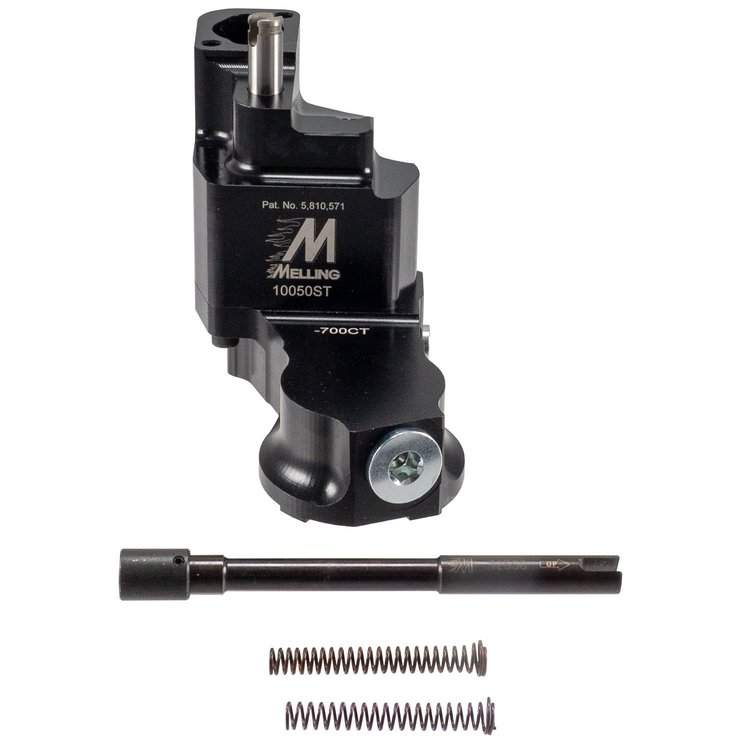

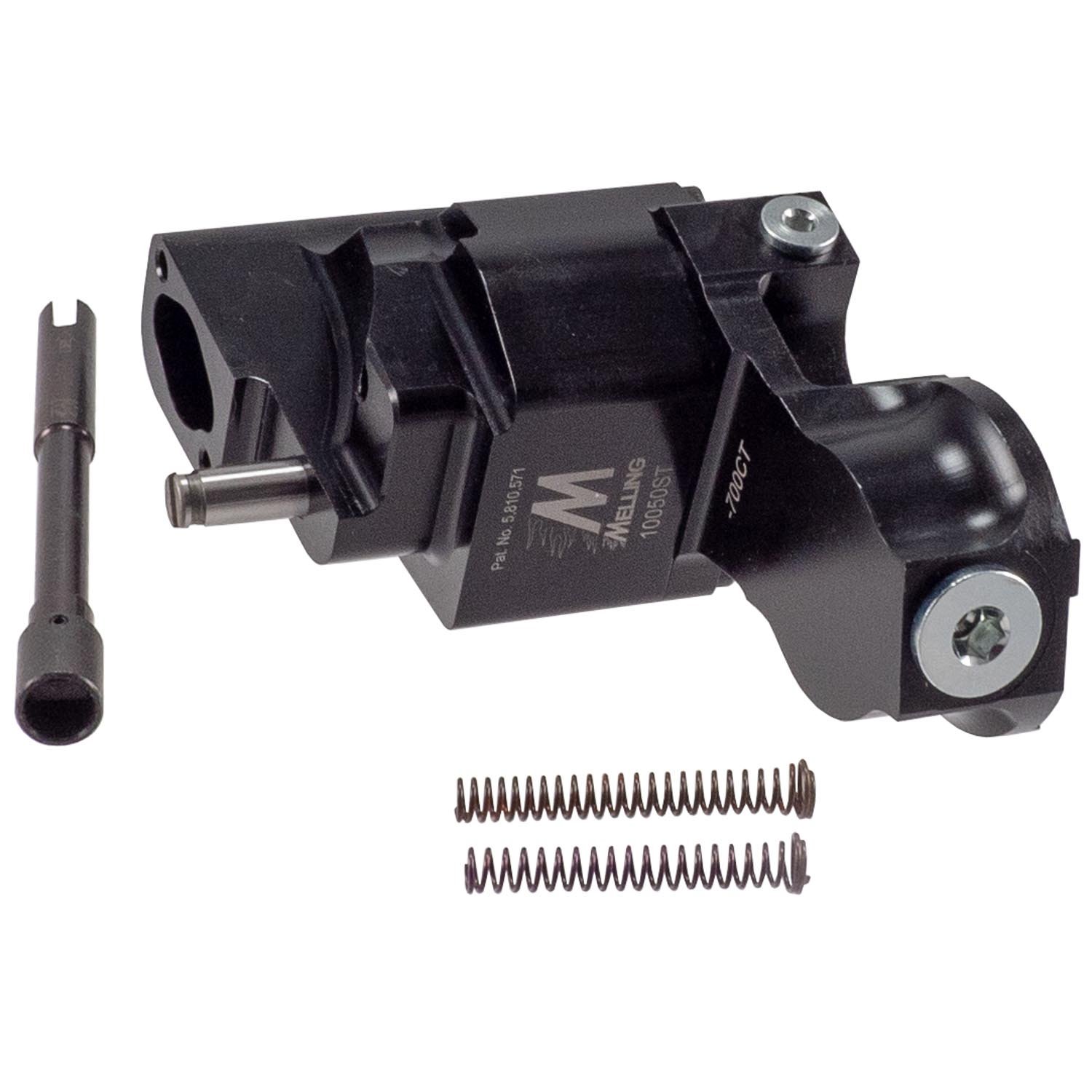

Melling 10050ST-700CT Features:

Melling high performance billet aluminum oil pumps provide dependable performance every time in every application under the toughest RPM conditions. The Melling billet aluminum oil pump series features a lightweight 6061-T6 aluminum housing and cover, a protective anodized hard coat, standard volume and high volume patented billet Shark Tooth gears, chrome moly steel dr ive shaft with extra shaft support, adjustable integrated oil pump screen, multiple pressure settings, CNC machining to exact tolerances and surface finishes, and supercharged inlet for improved performance. Includes additional pressure springs. Every Melling high performance oil pump is individually tested for pressure and flow under actual engine operating conditions. Melling high performance oil pumps are available for increased oil flow, increased oil pressure, anti-cavitation capability and overall higher performance when needed. The Melling High Performance Billet Aluminum series oil pumps are recommended for street, strip and racing applications.

• The supercharged inlet allows for improved performance at high RPM's.
• For circle track racing applications with 7 inch deep pans.
• 25% increase in volume over stock oil pump.
• Pump features a lightweight billet 6061-T6 aluminum housing and cover with a durable anodized hardcoat and high volume billet steel "Shark Tooth" helical gears.
• Chrome-moly steel drive shaft.
• Pump shafts have been extended into the cover for support.
• Pickup screen has been integrated into the pump body, offset for circle track racing and features a stainless steel wire mesh.
• Multiple pressure settings and is CNC manufactured to exacting tolerances and surface finishes.
• Includes 12550 chrome moly intermediate shaft and +10 PSI and -10 PSI relief springs.
• Additional Cover Shaft Support: Yes
• Additional Volume Over Stock Percentage: 0.25
• Adjustable Bypass Pressure: Yes
• Alternate Pressure Springs Included: Yes
• Anti-Cavitation: No
• Bolts Included: No
• Bushing Included: No
• Cotter Pin Included: No
• Cover Material: Billet Aluminum
• Drive Shaft Included: Yes
• Drive Type: Drive Shaft
• Gasket Or Seal Included: No
• Gear Material: Billet Steel
• Gear Type: Shark Tooth Helical Gear
• Gears Included: Yes
• Governor Spinner Included: No
• Guide Included: No
• Hardware Included: No
• Height: 5 in.
• Housing Finish: Anodized
• Housing Material: 6061-T6 Billet Aluminum
• Inlet Size (in): Not Applicable
• Intermediate Shaft Included: Yes
• Manufactured For: GM SBC
• Manufactured Pressure: (Red) 70 PSI
• Mounting Hole Diameter: 0.45 in.
• Mounting Hole Quantity: 1
• Nylon Bushing Included: No
• Oil Pump Pressure Type: Standard Pressure
• Oil Pump Type: Gear
• Oil Pump Volume Type: High Volume
• Optional Spring Pressure 1: (Pink) 60 PSI
• Optional Spring Pressure 2: (Orange) 80 PSI
• O-Ring Included: No
• Pickup Screen Diameter: 1.65 in.
• Pickup Screen Included: Yes
• Pickup Tube Diameter: 1.65 in.
• Pump Cover Included: Yes
• Screen Information: Screen Included 7"
• Shaft Material: Chromoly Steel
• Spacer Included: No
• Timing Cover Included: No
• Upgrade for Pump Number: M-55HV
• Washers Included: No
• Width: 8 in.
