![10050ST-825SS Billet Aluminum High Performance Oil Pump Fits SBC Gen1 [8 1/4 in Deep Pans, High Volume]](https://www.jegs.com/images/mini_750/600/689/689-10050st825ss.jpg)
Vehicle Info NeededMELLINGPART NUMBER: 689-10050ST825SS

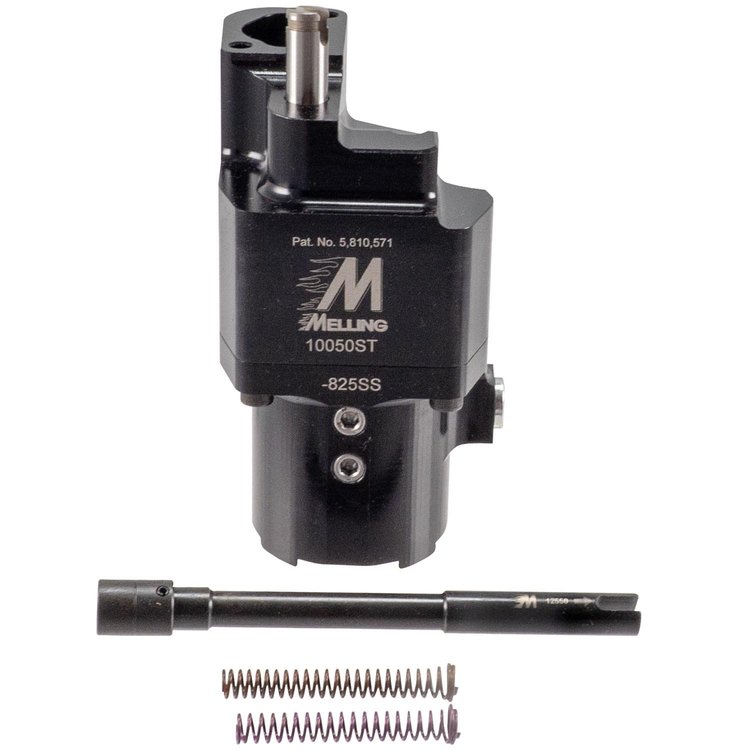

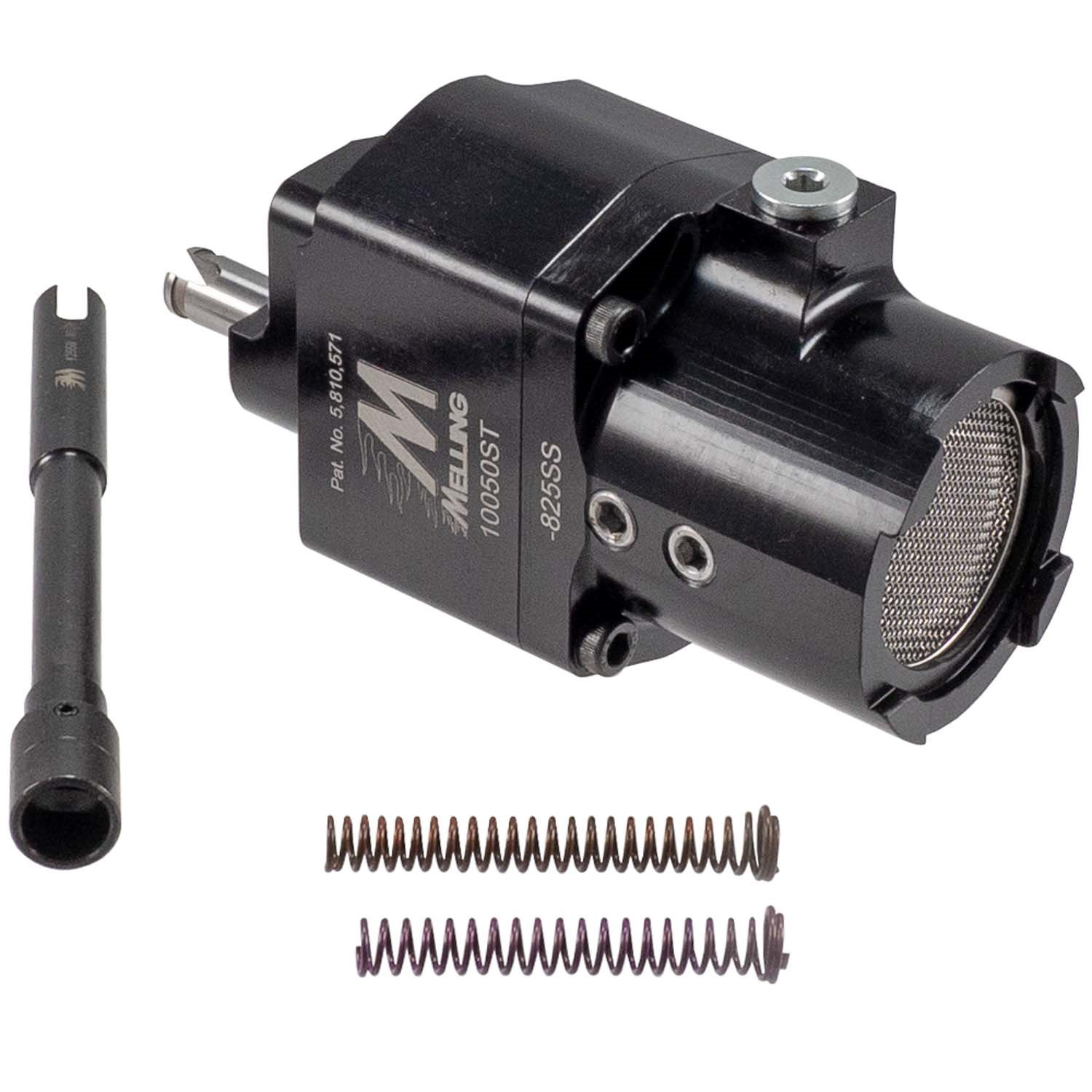

10050ST-825SS Billet Aluminum High Performance Oil Pump Fits SBC Gen1 [8 1/4 in Deep Pans, High Volume]
$47699
Ships on 09/15/2026
Lowest Price GuaranteeSmall Block Chevy Oil Pumps
Billet Aluminum Oil PumpSBC Gen1 w/8 1/4 in. Deep Pans Standard-Volume Shark Tooth Gears Includes:
- Chrome-Moly Drive Shaft
- +10 and -10 PSI Relief Springs
Melling 10050ST825SS Billet Aluminum High Volume Oil Pump Features:
- 25% volume over stock
- Shark tooth helical gear
- Anodized hardcoat finish
- Adjustable bypass pressure, +10 and -10 PSI relief springs included
- Chrome-Moly driveshaft included
The Oiling Performance You Need
Melling Select Billet Aluminum Oil Pumps are a must-have if you're serious about building the ultimate wet sump system. The lightweight billet design features a hard-coated housing and CNC-machined cover for strength. The pumps have an integral screened pickup for smoother oil flow with less internal drag and Chromoly steel driveshafts for durability. Recommended for street and strip applications.
Part TypeOil Pump
Product LineMelling Select Billet Aluminum Oil Pumps
BrandMELLING
Package Height6.25 in.
Package Width4 in.
Package Length8.0
Weight4.09 PG
Part CategoryReplacement Parts
Hardware IncludedNo
Drive Shaft IncludedYes
Housing FinishAnodized
Housing Material6061-T6 Billet Aluminum
Mounting Hole Quantity1
Adjustable Bypass PressureYes
Bolts IncludedNo
Spacer IncludedNo
Alternate Pressure Springs IncludedYes
Anti-CavitationNo
Inlet Size (In.)Not Applicable
O-Ring IncludedNo
Washers IncludedNo
Pickup Screen Diameter1.65 in.
Mounting Hole Diameter0.45 in.
Oil Pump Pressure TypeStandard Pressure
Bushing IncludedNo
Oil Pump TypeGear
Cover MaterialBillet Aluminum
Shaft MaterialChromoly Steel
Gear MaterialBillet Steel
Pickup Tube Diameter1.65 in.
Adjustable Pickup ScreenNo
Gasket Or Seal IncludedNo
Cotter Pin IncludedNo
Gear TypeShark Tooth Helical Gear
Drive TypeDrive Shaft
Additional Cover Shaft SupportYes
Oil Pump Volume TypeHigh Volume
Part FitmentSemi Universal
Grade TypePerformance
Timing Cover IncludedNo
Additional Volume Over Stock Percentage0.25
Vendor Part Number10050ST-825SS
Package Qty1
Package TypeEA
