Vehicle Info NeededMELLINGPART NUMBER: 689-10070-1000SS

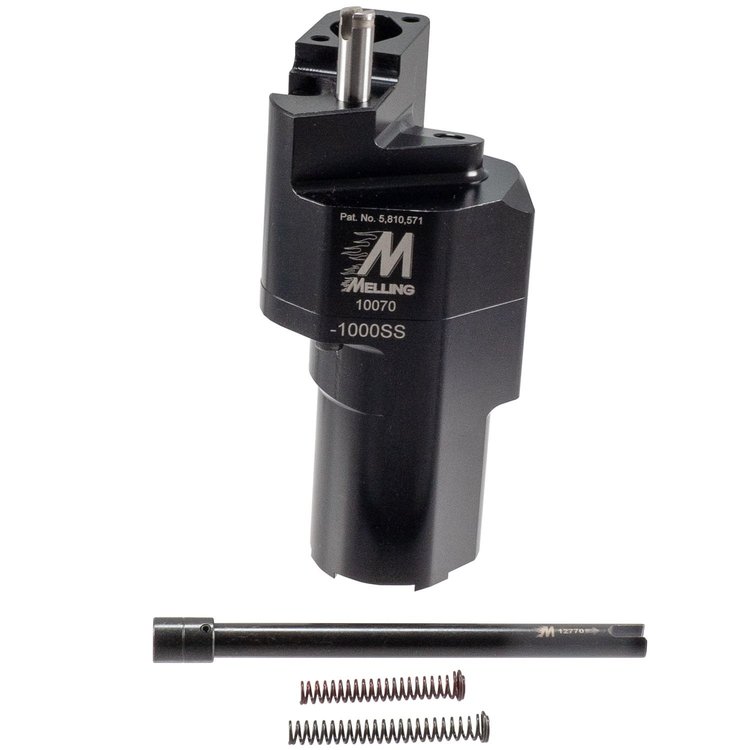

10070-1000SS Billet Aluminum Oil Pump Big Block Chevy, Spur Gears
$65099
Ships on 09/17/2026
Lowest Price GuaranteeBig Block Chevy Oil Pumps
Billet Aluminum Oil PumpBig Block Chevy Spur Gears High-Volume Standard Pressure Black Anodized Hard-Coat Finish Sold Individually
10070-1000SS Features:
- Includes (2) additional pressure springs and (1) stud kit
- 25-percent volume increase over stock
- Lightweight 6061-T6 aluminum housing and cover
- Billet steel gear material
- Adjustable bypass pressure
- An adjustable oil pump screen
- Chromoly steel driveshaft with shaft support
Technical Specs:
- Height: 8 in. (205 mm)
- Width: 4.320 in. (109.950 mm)
- Mounting Hole Diameter: .450 in. (11.450 mm)
- Pickup Screen Diameter: 1.650 in. (41.900 mm)
- Pickup Screen Max Adjustment: .250 in. (6.350 mm)
Note:
- Non-anti-cavitation compatible
Part TypeOil Pump
BrandMELLING
Package Height8 in.
Package Width4.25 in.
Package Length11.05
Weight5.245 PG
Part CategoryReplacement Parts
Pickup Screen Maximum Adjustment0.25 in.
Hardware IncludedNo
Drive Shaft IncludedYes
Housing FinishAnodized
Housing Material6061-T6 Billet Aluminum
Mounting Hole Quantity1
Adjustable Bypass PressureYes
Bolts IncludedNo
Spacer IncludedNo
Alternate Pressure Springs IncludedYes
Anti-CavitationNo
Inlet Size (In.)Not Applicable
O-Ring IncludedNo
Washers IncludedNo
Pickup Screen Diameter1.65 in.
Mounting Hole Diameter0.45 in.
Oil Pump Pressure TypeStandard Pressure
Bushing IncludedNo
Oil Pump TypeGear
Cover MaterialBillet Aluminum
Shaft MaterialChromoly Steel
Gear MaterialBillet Steel
Pickup Tube Diameter1.65 in.
Gasket Or Seal IncludedNo
Cotter Pin IncludedNo
Gear TypeSpur Gear
Drive TypeDrive Shaft
Additional Cover Shaft SupportYes
Oil Pump Volume TypeHigh Volume
Part FitmentDirect Fit
Grade TypePerformance
Timing Cover IncludedNo
Additional Volume Over Stock Percentage0.25
Vendor Part Number10070-1000SS
Package Qty1
Package TypeEA
