Vehicle Info NeededMELLINGPART NUMBER: 689-10176

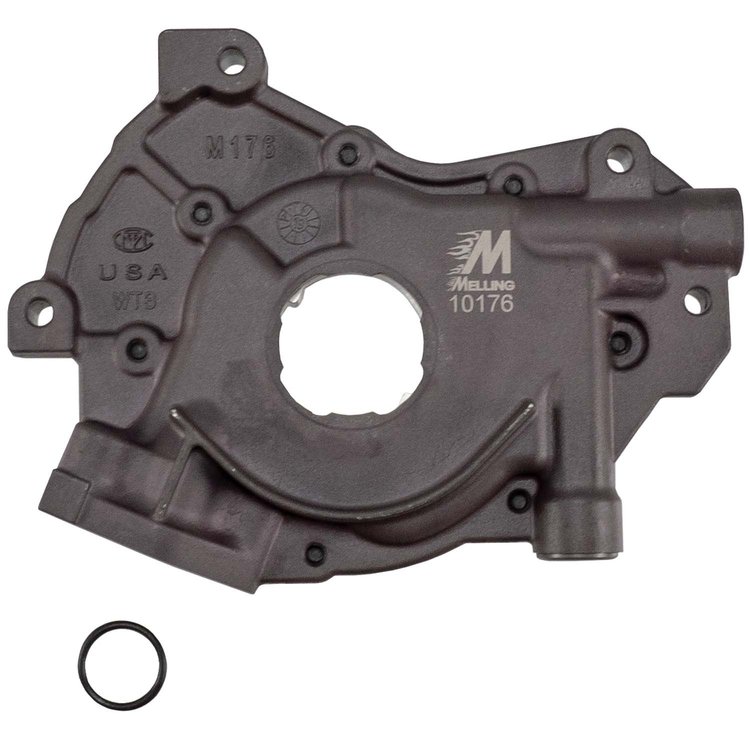

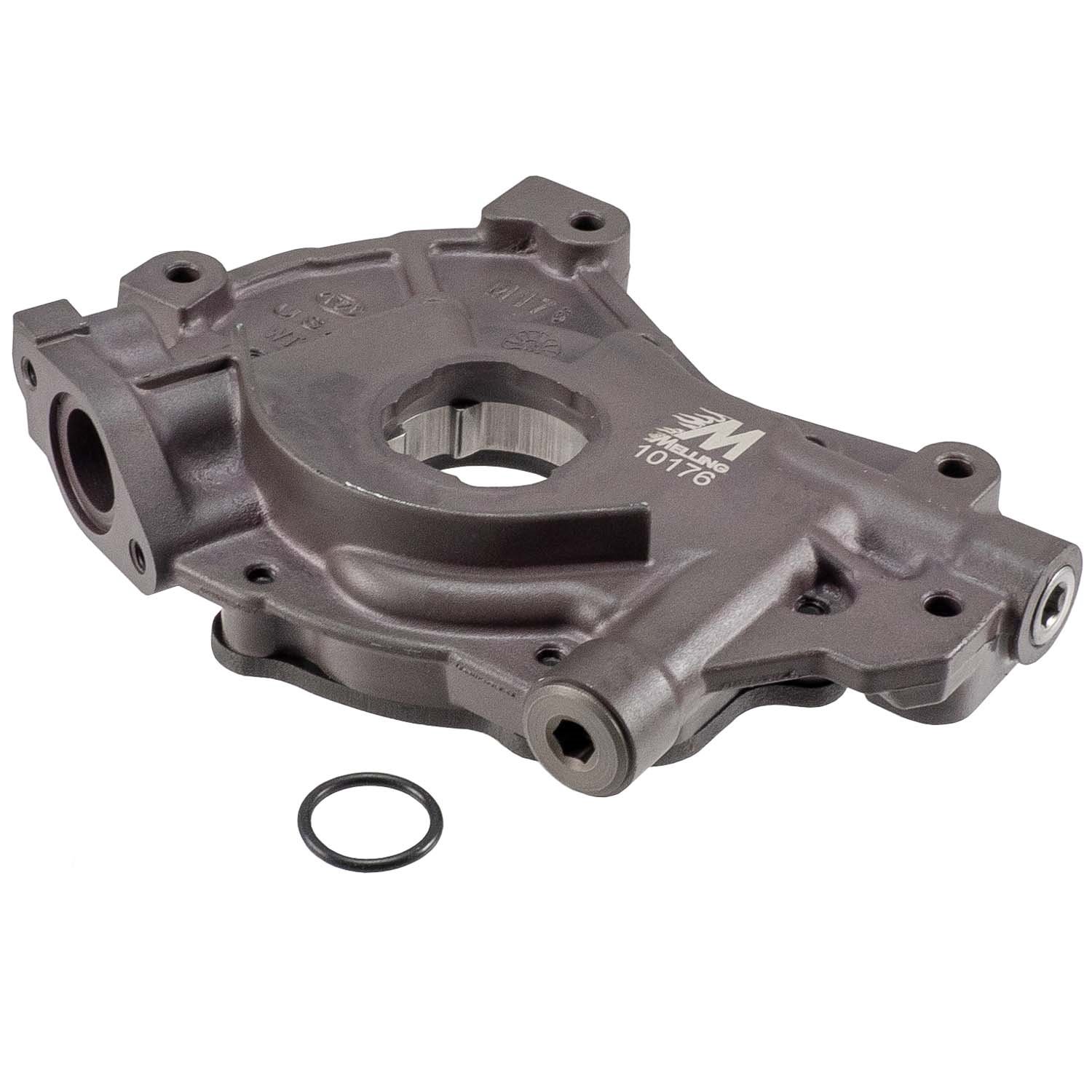

10176 Select Oil Pump Ford 4.6L SOHC
$54582
3 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeFord Oil Pumps
- Select Oil Pump
- Ford 4.6L SOHC
- Standard Volume
- Billet steel rotors (130,000 psi tensile strength)
- Hard-coat anodized pump body
- Magnesium phosphate-coated cover plate
- Engine accepts 13/16" stock pickup assembly
Part TypeOil Pump
BrandMELLING
Package Height6 in.
Package Width8 in.
Package Length8.6
Weight3.34 PG
Part CategoryReplacement Parts
Hardware IncludedNo
Housing FinishAnodized
Housing MaterialCast Aluminum
Mounting Hole Quantity4
Bolts IncludedNo
Spacer IncludedNo
Alternate Pressure Springs IncludedNo
Inlet Size (In.)0.75
O-Ring IncludedYes
Washers IncludedNo
Mounting Hole Diameter0.25 in.
Oil Pump Pressure TypeStandard Pressure
Bushing IncludedNo
Oil Pump TypeRotary
Cover MaterialCast Iron
Shaft MaterialNot Applicable
Pickup Tube Diameter0.75 in.
Gasket Or Seal IncludedYes
Cotter Pin IncludedNo
Drive TypeCrankshaft
Oil Pump Volume TypeStandard Volume
Part FitmentDirect Fit
Grade TypePerformance
Timing Cover IncludedNo
Rotor MaterialChrome Moly Billet Steel
Vendor Part Number10176
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
