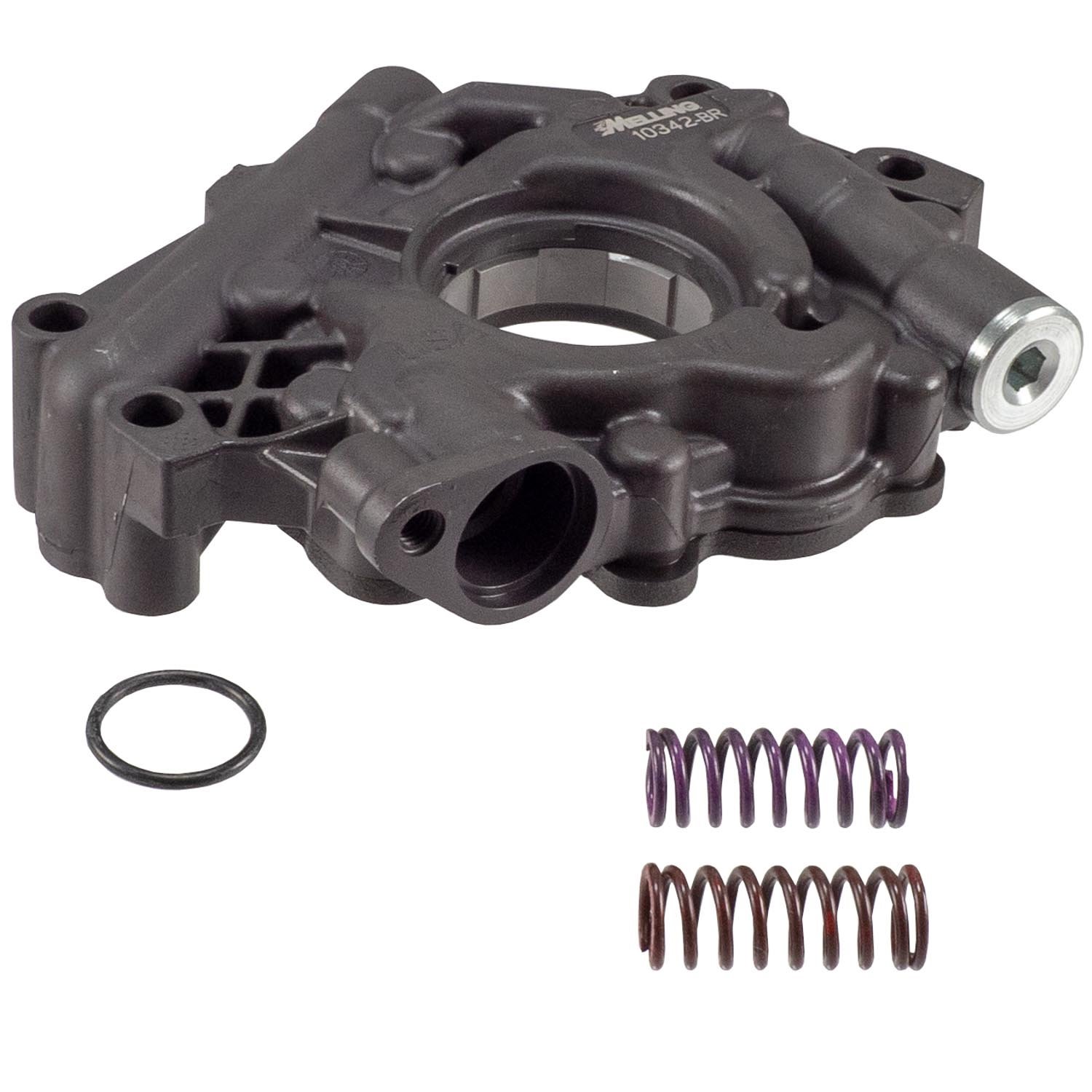

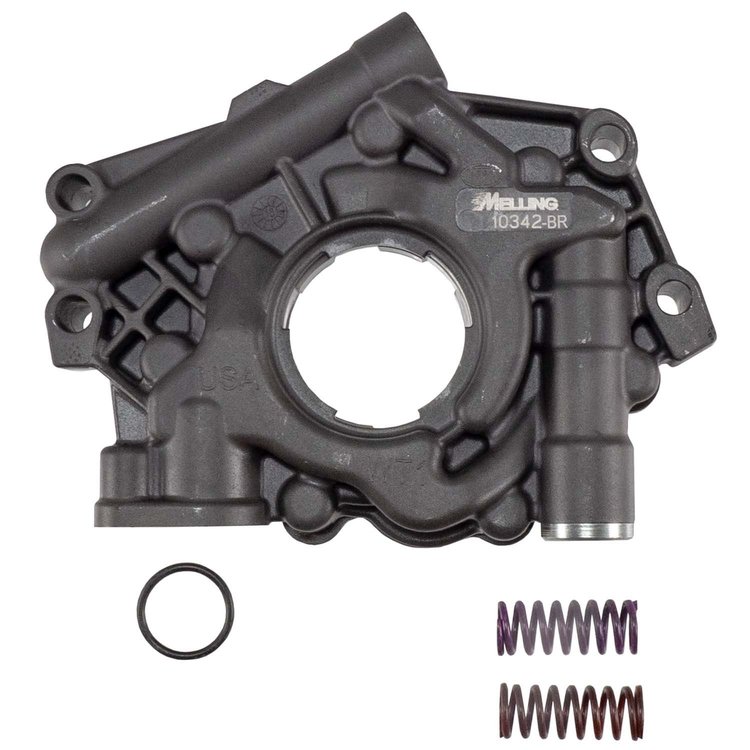

Melling 10342-BR Features:

Melling high performance oil pumps provide dependable performance every time in every application under the toughest RPM conditions. Melling high performance billet rotor oil pumps are standard volume, high pressure oil pumps which feature 130,000 TSI billet steel rotors, a hard coat anodized aluminum body and cast iron phosphate coated cover for improved pump performance and durability. The oil pumps pressure is adjustable by using the optional pressure springs. The oil pump screen mounting seal is included. Every Melling high performance oil pump is individually tested for pressure and flow under actual engine operating conditions. Melling high performance billet rotor oil pumps are recommended for all applications where a high performance oil pump is needed.

• Standard volume high pressure performance upgrade of the M342.
• Hardcoat anodized body with cast iron phosphate coated cover from improved pump performance and durability.
• Chrome Moly billet steel rotors.
• Adjustable by-pass pressure using optional +10 psi and +15 psi springs.
• The cup plugs have been replaced with threaded fittings.
• Uses a 1-1/8th" bolt on screen.
• Additional Pressure Over Stock Percentage: 15 PSI
• Additional Volume Over Stock Percentage: 0
• Adjustable Bypass Pressure: Yes
• Alternate Pressure Springs Included: Yes
• Bolts Included: No
• Bushing Included: No
• Cotter Pin Included: No
• Cover Material: Cast Iron
• Drive Type: Crankshaft
• Gasket Or Seal Included: Yes
• Gears Included: Not Applicable
• Governor Spinner Included: No
• Grade Type: Performance
• Guide Included: Not Applicable
• Hardware Included: No
• Height: 5.5 in.
• Housing Finish: Anodized
• Housing Material: Cast Aluminum
• Inlet Size (in): 1.125
• Intermediate Shaft Included: Not Applicable
• Manufactured For: Chrysler HEMI
• Manufactured Pressure: (Yellow) 50 PSI
• Mounting Hole Diameter: 0.38 in.
• Mounting Hole Quantity: 4
• Nylon Bushing Included: No
• Oil Pump Pressure Type: High Pressure
• Oil Pump Type: Rotary
• Oil Pump Volume Type: Standard Volume
• Optional Spring Pressure 1: (Red) 60 PSI
• Optional Spring Pressure 2: (Pink) 65 PSI
• O-Ring Included: Yes
• Pickup Screen Included: No
• Pickup Tube Diameter: 1.125 in.
• Pump Cover Included: Yes
• Rotor Material: Chrome Moly Billet Steel
• Screen Information: 7/8" Bolt On
• Shaft Material: Not Applicable
• Spacer Included: No
• Timing Cover Included: No
• Upgrade for Pump Number: M342
• Washers Included: No
• Width: 7.25 in.
