Vehicle Info NeededMELLINGPART NUMBER: 689-10550ST

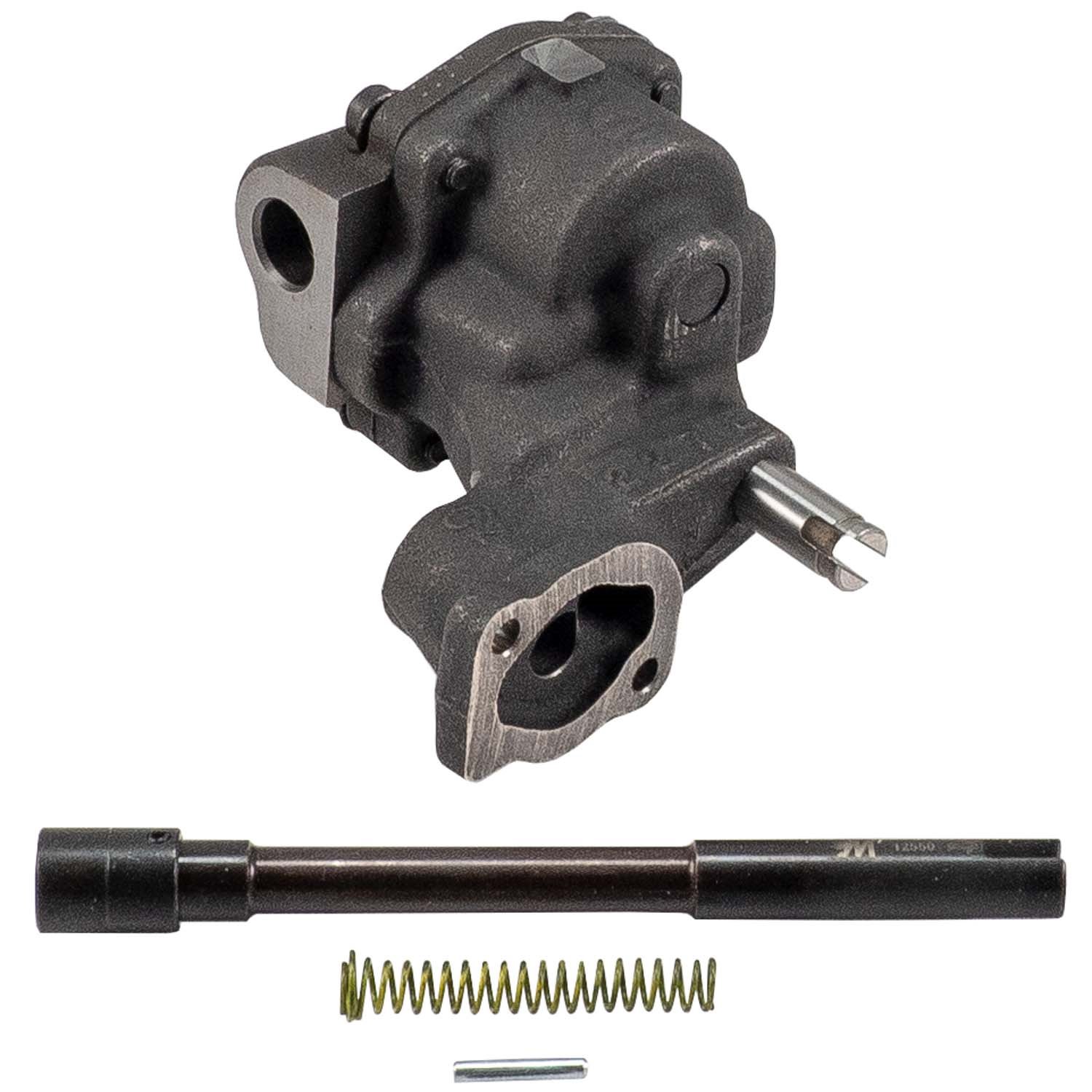

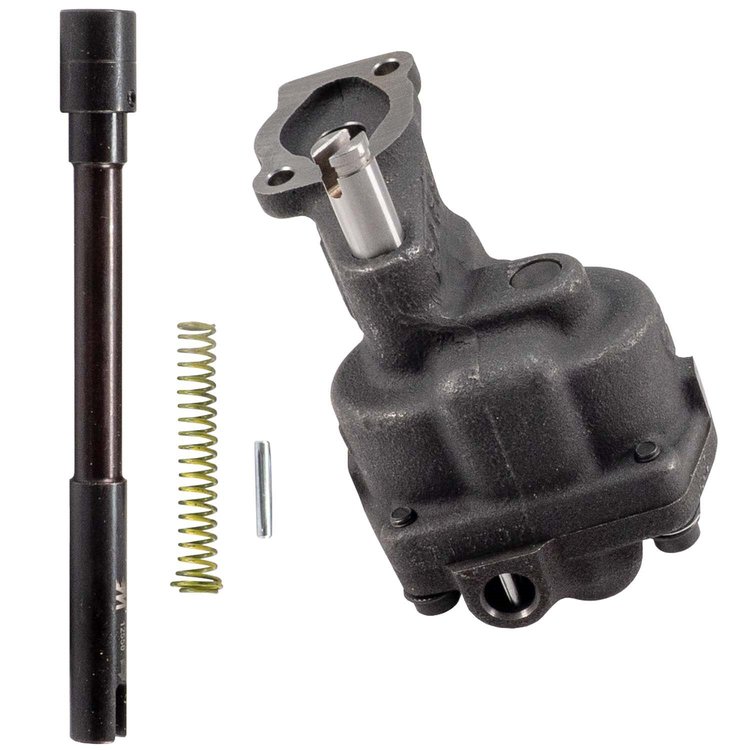

10550ST Shark Tooth Oil Pump
$14899
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeGM/Chevy Small Block
- Shark Tooth Oil Pump
- Small Block Chevy
- High Volume
- Standard Pressure
- Includes Low Pressure Spring and Pinned Steel Drive Shaft Sleeve
- Additional Volume: 25% gpm (imp)
- Adjustable Valve: No
- Drive Shaft Material: Steel
- Finish: Mag Phosphate Cover
- Finish: Mag Phosphate Housing
- Gear Material: Billet Steel
- Gear Type: Helical Asymmetrical
- Grade Type: Performance
- Housing Material: Cast Iron
- Includes Optional Low Pressure Spring
- Includes Pinned Steel Drive Shaft Sleeve
- Includes Screen: No
- Inlet Diameter: 5/8 in
- Pan Depth: Min Max 6-7/8 to 9-7/8 in
- Pick Up Screen Diameter: 5/8 in
- Pump Pressure: Standard
- Pump Type: High Volume
- Recommended Use: Street and Strip
- Notes: SHARK TOOTH GEARS; HI VOLUME PUMP; 25% ADDL VOL OF OIL; FEATURES: PATENTED HELICAL ASYMMETRICAL STEEL GEARS; REDUCED PRESSURE RIPPLE, REDUCED TORQUE RIPPLE, IMPROVED DISTRIBUTOR OPERATION, IMPROVED SHAFT AND GEAR WEAR; IMPROVED EFFICIENCY
Stock and High-Volume Oil Pumps
Melling offers a variety of OE replacement and high-volume oil pumps to improve your engine's performance. All units are 100-percent pressure tested and hand-turned before shipping to ensure quality and durability.
Part TypeOil Pump
Product LineMelling OE-Style Oil Pumps & Pickups
BrandMELLING
Package Height4.5 in.
Package Width3.24 in.
Package Length5.9
Weight4.25 PG
Part CategoryReplacement Parts
Hardware IncludedNo
Drive Shaft IncludedYes
Housing FinishPhosphate Coating
Housing MaterialCast Iron
Mounting Hole Quantity2
Adjustable Bypass PressureYes
Bolts IncludedNo
Spacer IncludedNo
Alternate Pressure Springs IncludedYes
Anti-CavitationNo
Inlet Size (In.)0.625
O-Ring IncludedNo
Washers IncludedNo
Mounting Hole Diameter0.24 in.
Oil Pump Pressure TypeHigh Pressure
Bushing IncludedNo
Oil Pump TypeGear
Cover MaterialCast Iron
Shaft MaterialChromoly Steel
Gear MaterialBillet Steel
Pickup Tube Diameter0.625 in.
Gasket Or Seal IncludedNo
Cotter Pin IncludedNo
Gear TypeShark Tooth Helical Gear
Drive TypeDrive Shaft
Additional Cover Shaft SupportNo
Oil Pump Volume TypeHigh Volume
Part FitmentDirect Fit
Grade TypePerformance
Timing Cover IncludedNo
Additional Volume Over Stock Percentage0.25
Vendor Part Number10550ST
Package Qty1
Package TypeEA
