Vehicle Info NeededMELLINGPART NUMBER: 689-10687

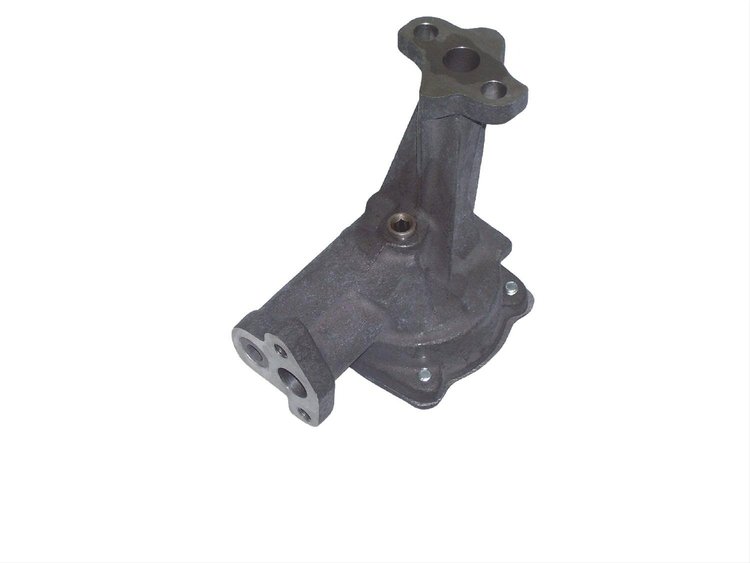

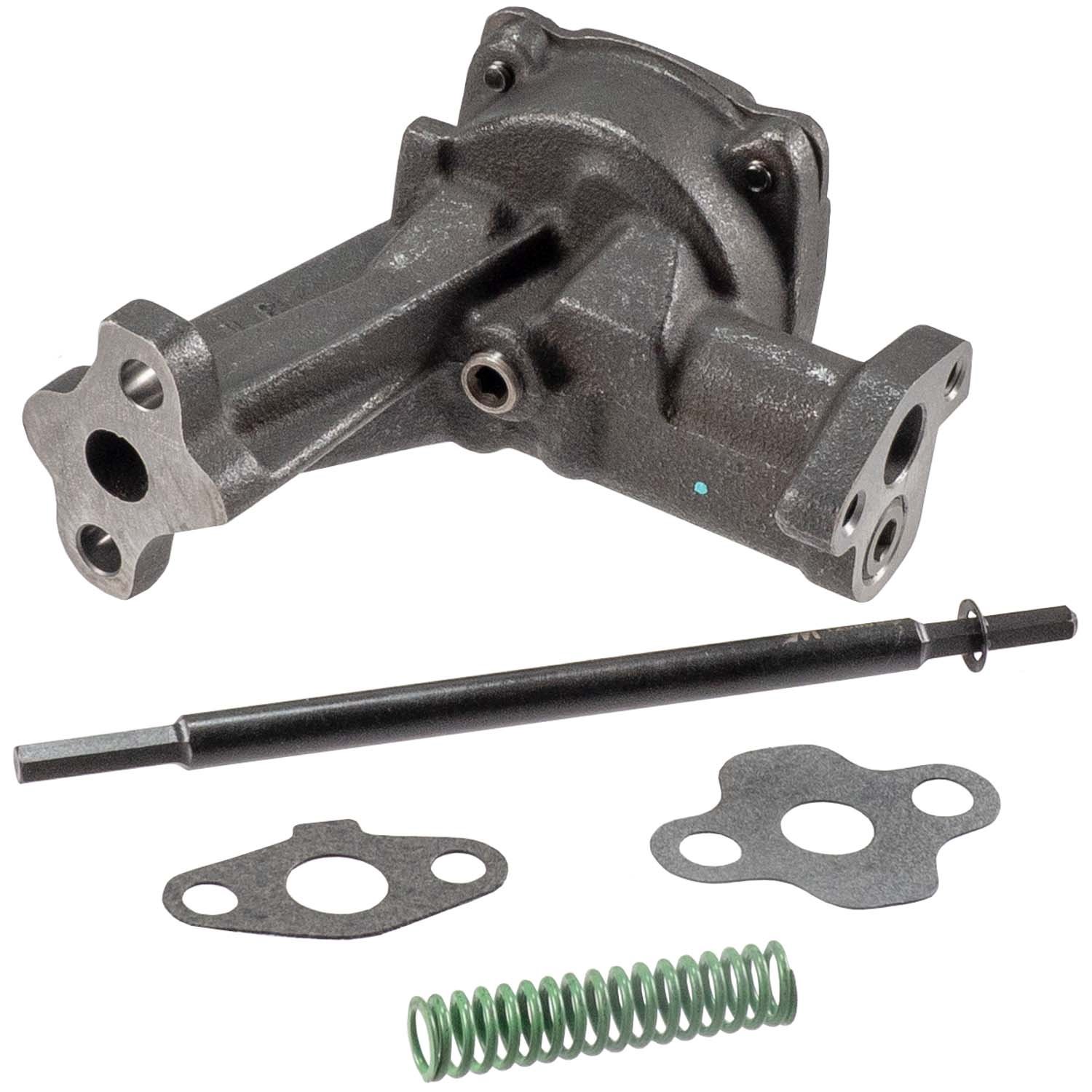

10687 Select Oil Pump Small Block Ford
$10099
Ships on 09/04/2026
Lowest Price GuaranteeFord Oil Pumps
Select Oil PumpSmall Block Ford Standard Volume
- Stock volume performance upgrade for p/n 689-M68.
- Gerotor set assembled to an extended drive shaft that allows for additional support in the cover. Supporting the drive shaft in both the housing and cover eliminates shaft deflection at higher RPM.
- Cover is doweled to the pump housing to assure alignment on the shaft bores.
- Housing and cover are CNC machined and phosphate coated for wear and rust protection.
- Relief valve has a pressure adjustable screw-in plug instead of a cup plug.
- Works with original 5/8" bolt-on pickup screen assemblies (not included).
Part TypeOil Pump
BrandMELLING
Package Height5 in.
Package Width4.7 in.
Package Length5.9
Weight4.65 PG
Part CategoryReplacement Parts
Hardware IncludedNo
Drive Shaft IncludedYes
Housing FinishPhosphate Coating
Housing MaterialCast Iron
Mounting Hole Quantity2
Adjustable Bypass PressureYes
Bolts IncludedNo
Spacer IncludedYes
Alternate Pressure Springs IncludedYes
Additional Pressure Over Stock Percentage10 PSI
Anti-CavitationNo
Inlet Size (In.)0.625
O-Ring IncludedYes
Washers IncludedNo
Mounting Hole Diameter0.38 in.
Oil Pump Pressure TypeHigh Pressure
Bushing IncludedNo
Oil Pump TypeGear
Cover MaterialCast Iron
Shaft MaterialChromoly Steel
Gear MaterialSteel
Pickup Tube Diameter0.625 in.
Gasket Or Seal IncludedYes
Cotter Pin IncludedNo
Gear TypeSpur Gear
Drive TypeDrive Shaft
Additional Cover Shaft SupportYes
Oil Pump Volume TypeStandard Volume
Part FitmentDirect Fit
Grade TypePerformance
Timing Cover IncludedNo
Vendor Part Number10687
Package Qty1
Package TypeEA
