Vehicle Info Needed

MELLINGPART NUMBER: 689-10778

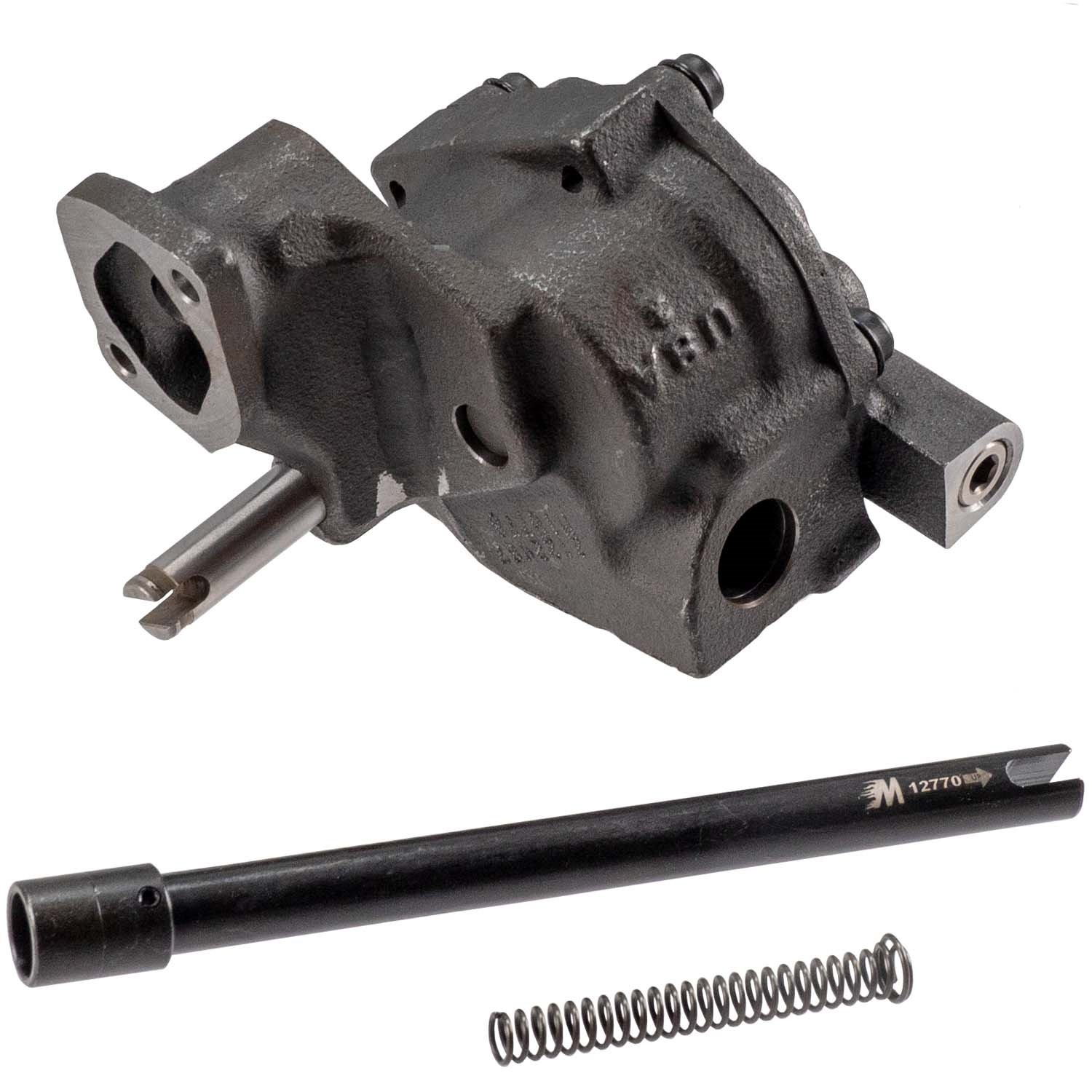

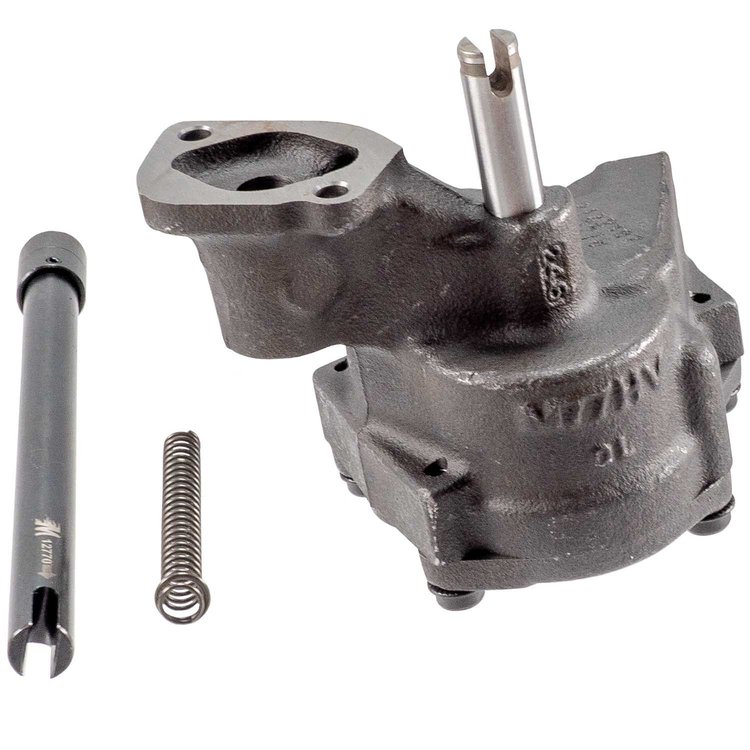

10778 Select Oil Pump Big Block Chevy

Name: 10778 Select Oil Pump Big Block Chevy
Brand: MELLING
SKU: 689-10778
Price: 182.99 USD
Availability: InStock

^$182⁹⁹

1 left in stock

Ships Tomorrow

Lowest Price Guarantee

GM Oil Pumps

Big Block Chevy
25% More Volume than OE
Includes Chrome Moly I/S Shaft with Steel Guide
Extended Drive And Idler Shaft For More Support In The Cover
Relief Valve Features A Screw In Plug

Melling 689-10778 Features:

Part TypeOil Pump

BrandMELLING

Package Height5.25 in.

Package Width3.7 in.

Package Length6.0

Weight6.05 PG

Part CategoryReplacement Parts

Hardware IncludedNo

Drive Shaft IncludedYes

Housing FinishPhosphate Coating

Housing MaterialCast Iron

Mounting Hole Quantity2

Adjustable Bypass PressureYes

Bolts IncludedNo

Spacer IncludedNo

Alternate Pressure Springs IncludedYes

Anti-CavitationNo

Inlet Size (In.)0.75

O-Ring IncludedNo

Washers IncludedNo

Mounting Hole Diameter0.24 in.

Oil Pump Pressure TypeHigh Pressure

Bushing IncludedNo

Oil Pump TypeGear

Cover MaterialCast Iron

Shaft MaterialChromoly Steel

Gear MaterialBillet Steel

Pickup Tube Diameter0.75 in.

Gasket Or Seal IncludedNo

Cotter Pin IncludedNo

Gear TypeSpur Gear

Drive TypeDrive Shaft

Additional Cover Shaft SupportYes

Oil Pump Volume TypeHigh Volume

Part FitmentDirect Fit

Grade TypePerformance

Timing Cover IncludedNo

Additional Volume Over Stock Percentage0.25

Vendor Part Number10778

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
