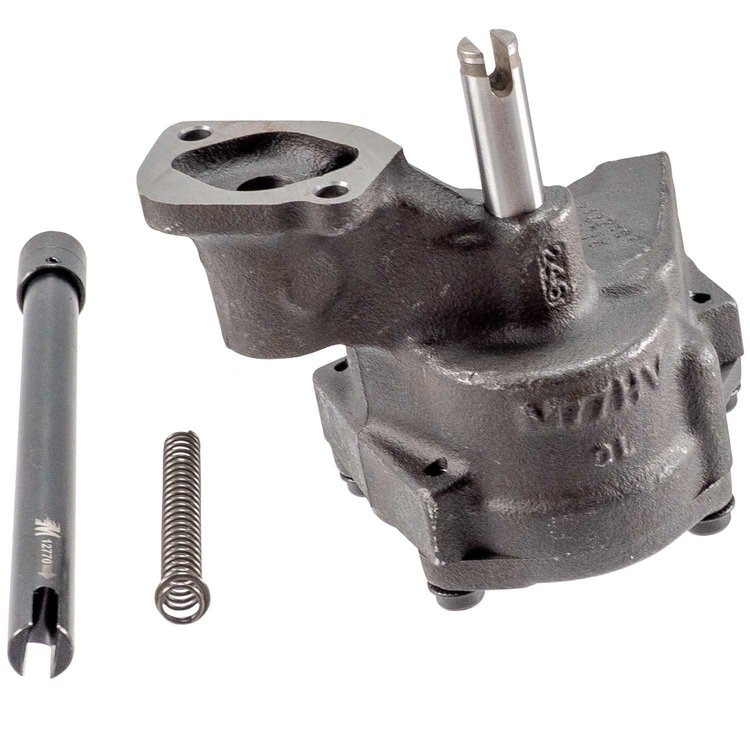

10778C Select Oil Pump Big Block Chevy (Race Applications Only)

Vehicle Info Needed

MELLINGPART NUMBER: 689-10778C

10778C Select Oil Pump Big Block Chevy (Race Applications Only)

Name: 10778C Select Oil Pump Big Block Chevy (Race Applications Only)
Brand: MELLING
SKU: 689-10778C
Price: 211.99 USD
Availability: InStock

^$211⁹⁹

2 left in stock

Ships on Sep 08, 2026

Lowest Price Guarantee

GM Oil Pumps

Big Block Chevy (Race Applications Only)
25% More Volume than OE

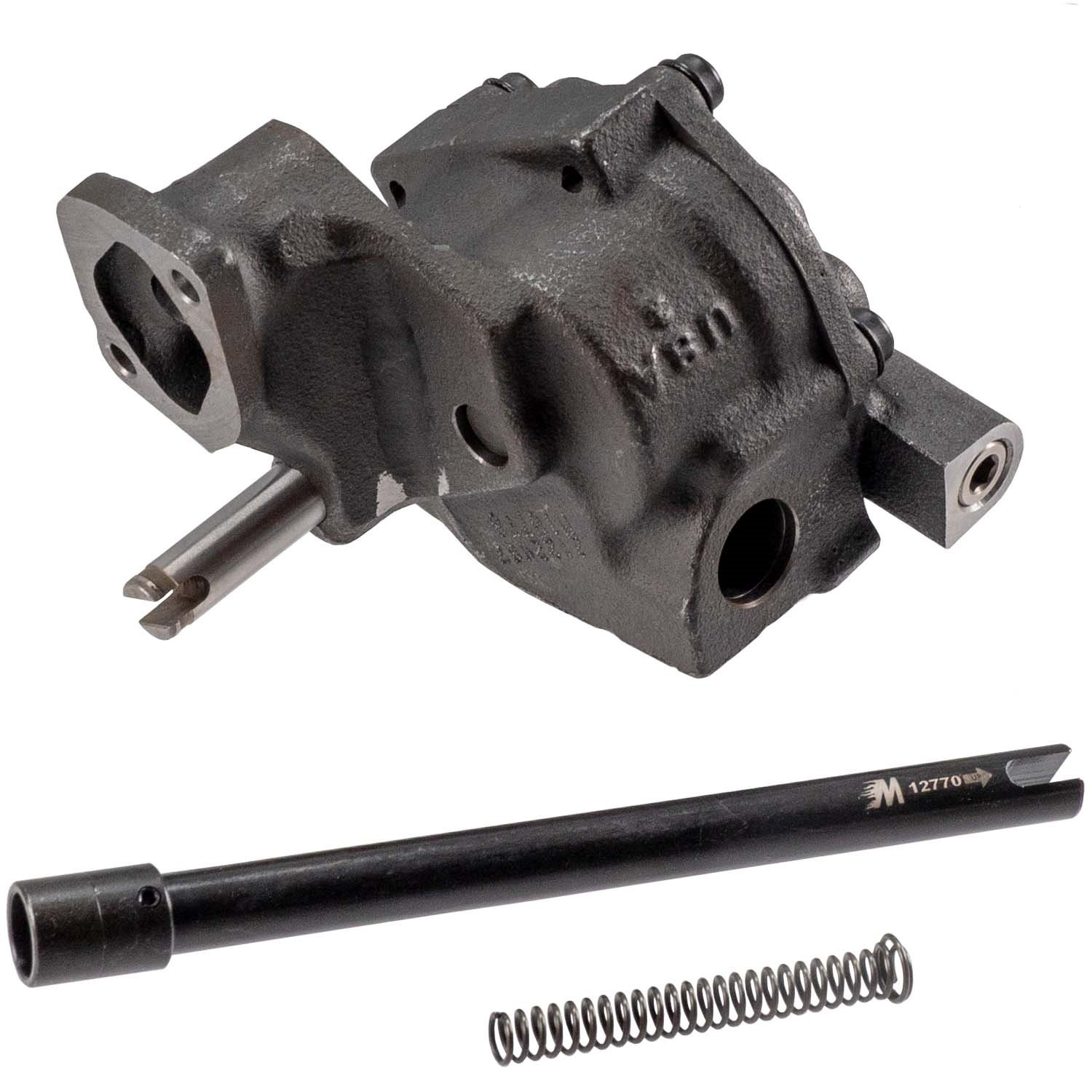

Includes Standard Pressure Spring and Chrome Moly I/S Shaft with Steel Guide
This anti-cavitation model features machined grooves in the housing and cover to reduce cavitation effects in high-RPM applications (housing & cover are also coated with manganese phosphate for rust prevention and longevity). The cover is doweled to the pump housing to ensure shaft bore alignment. The pump relief valve has a screw-in plug instead of a pin.
With this pump design, oil pressure is slightly reduced at idle.

Part TypeOil Pump

BrandMELLING

Package Height5.25 in.

Package Width3.7 in.

Package Length6.1

Weight6.05 PG

Part CategoryReplacement Parts

Hardware IncludedNo

Drive Shaft IncludedYes

Housing FinishPhosphate Coating

Housing MaterialCast Iron

Mounting Hole Quantity2

Adjustable Bypass PressureYes

Bolts IncludedNo

Spacer IncludedNo

Alternate Pressure Springs IncludedYes

Anti-CavitationYes

Inlet Size (In.)0.75

O-Ring IncludedNo

Washers IncludedNo

Mounting Hole Diameter0.24 in.

Oil Pump Pressure TypeHigh Pressure

Bushing IncludedNo

Oil Pump TypeGear

Cover MaterialCast Iron

Shaft MaterialChromoly Steel

Gear MaterialBillet Steel

Pickup Tube Diameter0.75 in.

Gasket Or Seal IncludedNo

Cotter Pin IncludedNo

Gear TypeSpur Gear

Drive TypeDrive Shaft

Additional Cover Shaft SupportYes

Oil Pump Volume TypeHigh Volume

Part FitmentDirect Fit

Grade TypePerformance

Timing Cover IncludedNo

Additional Volume Over Stock Percentage0.25

Vendor Part Number10778C

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
