Melling 10990C Features:

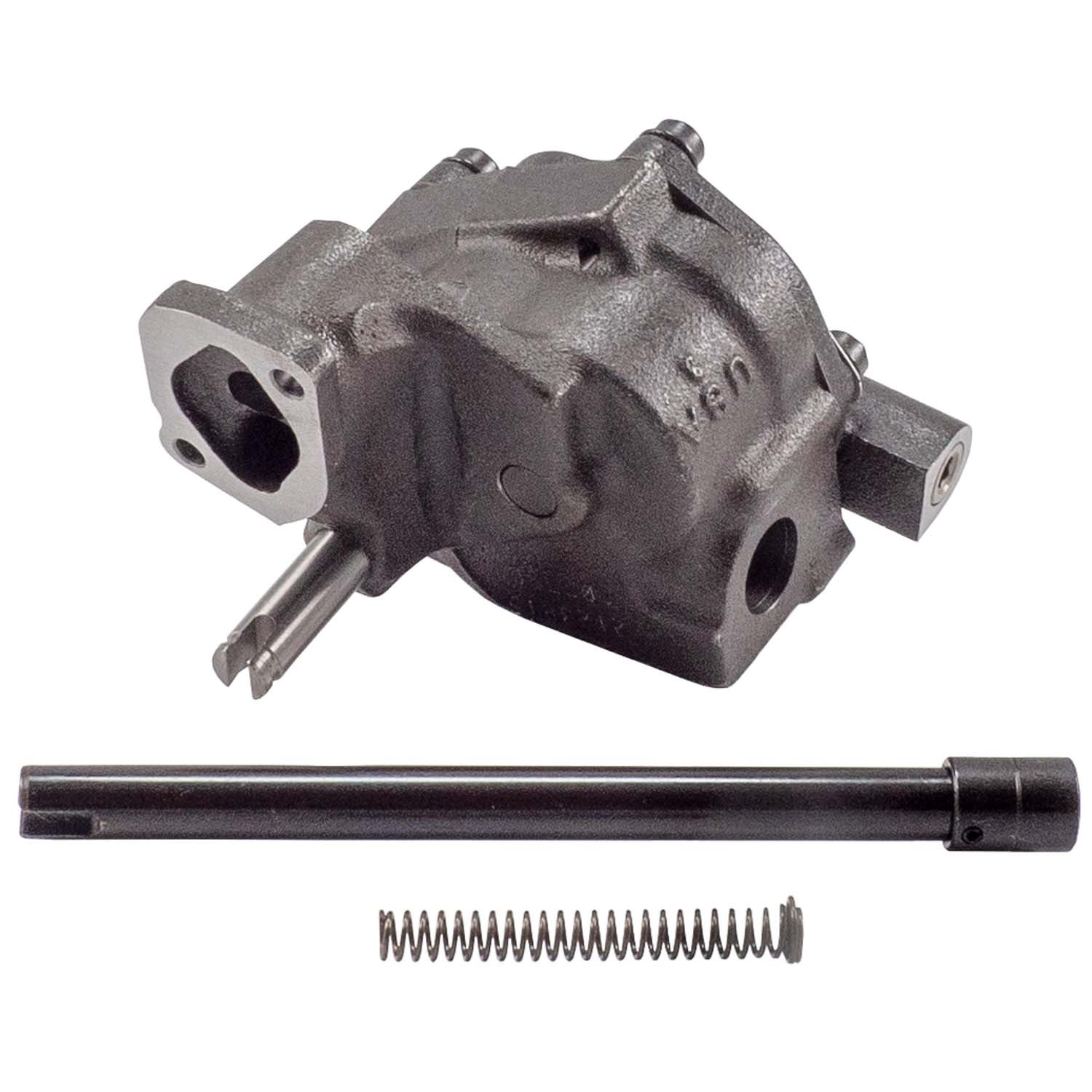

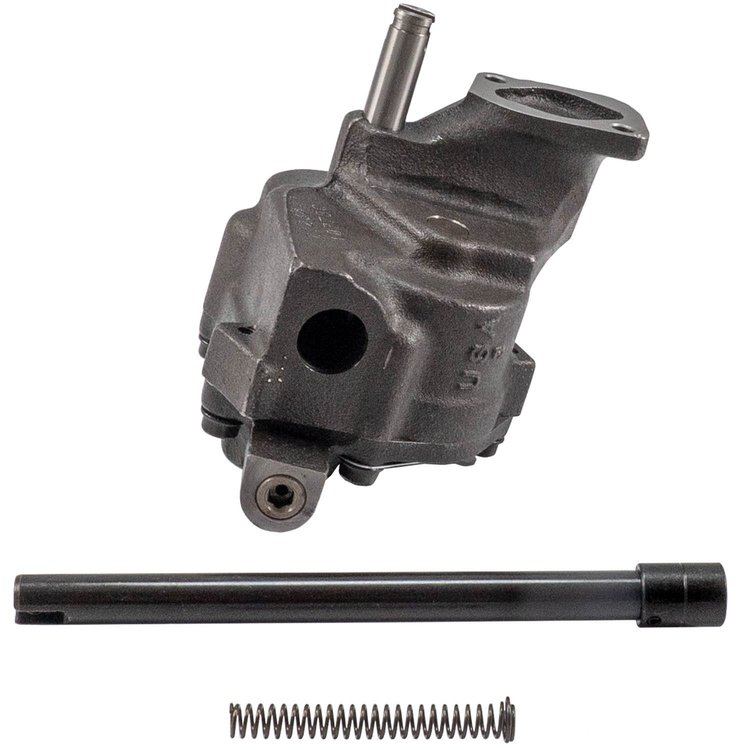

Melling high performance anti-cavitation oil pumps provide dependable performance every time in every application under the toughest RPM conditions. The Melling high performance anti-cavitation oil pump features a doweled cast iron housing and cover with additional machined anti-cavitation grooves, extended drive and idler shafts for additional support at increased RPM’s, screw in relief spring plug, a CNC machined cover and housing that is manganese phosphate coated, self locking socket head bolts includes wrench, billet steel gears, and a chrome moly drive shaft with steel guide. Includes lower pressure spring to reduce pressure. Every Melling high performanc e oil pump is individually tested for pressure and flow under actual engine operating conditions. Melling high performance anti-cavitation oil pumps are for racing applications only and are not recommended for street use.

• Additional Cover Shaft Support: Yes
• Additional Volume Over Stock Percentage: 0.25
• Adjustable Bypass Pressure: Yes
• Alternate Pressure Springs Included: Yes
• Anti-Cavitation: Yes
• Bolts Included: No
• Bushing Included: No
• Cotter Pin Included: No
• Cover Material: Cast Iron
• Drive Shaft Included: Yes
• Drive Type: Drive Shaft
• Gasket Or Seal Included: No
• Gear Material: Billet Steel
• Gear Type: Spur Gear
• Gears Included: Yes
• Governor Spinner Included: No
• Grade Type: Performance
• Guide Included: Yes
• Hardware Included: No
• Height: 5.25 in.
• Housing Finish: Phosphate Coating
• Housing Material: Cast Iron
• Inlet Size (in): 0.75
• Intermediate Shaft Included: Yes
• Manufactured For: GM SBC
• Manufactured Pressure: (Pink) 70 PSI
• Mounting Hole Diameter: 0.24 in.
• Mounting Hole Quantity: 2
• Nylon Bushing Included: No
• Oil Pump Pressure Type: High Pressure
• Oil Pump Type: Gear
• Oil Pump Volume Type: High Volume
• Optional Spring Pressure 1: (Plain) 52 PSI
• Optional Spring Pressure 2: N/A
• O-Ring Included: No
• Pickup Screen Included: No
• Pickup Tube Diameter: 0.75 in.
• Pump Cover Included: Yes
• Screen Information: 3/4" Press In
• Shaft Material: Chromoly Steel
• Spacer Included: No
• Timing Cover Included: No
• Upgrade for Pump Number: M-99HVS
• Washers Included: No
• Width: 3.76 in.
