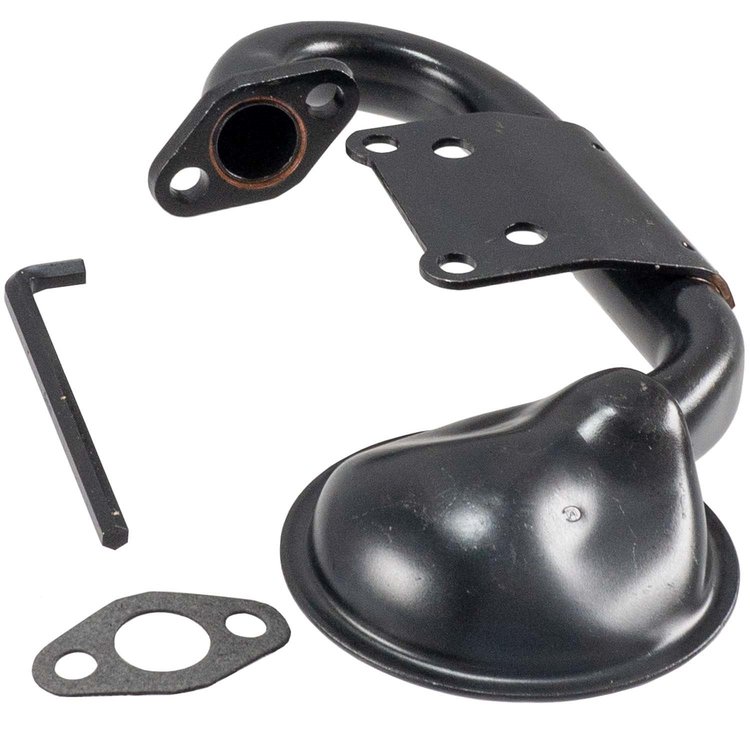

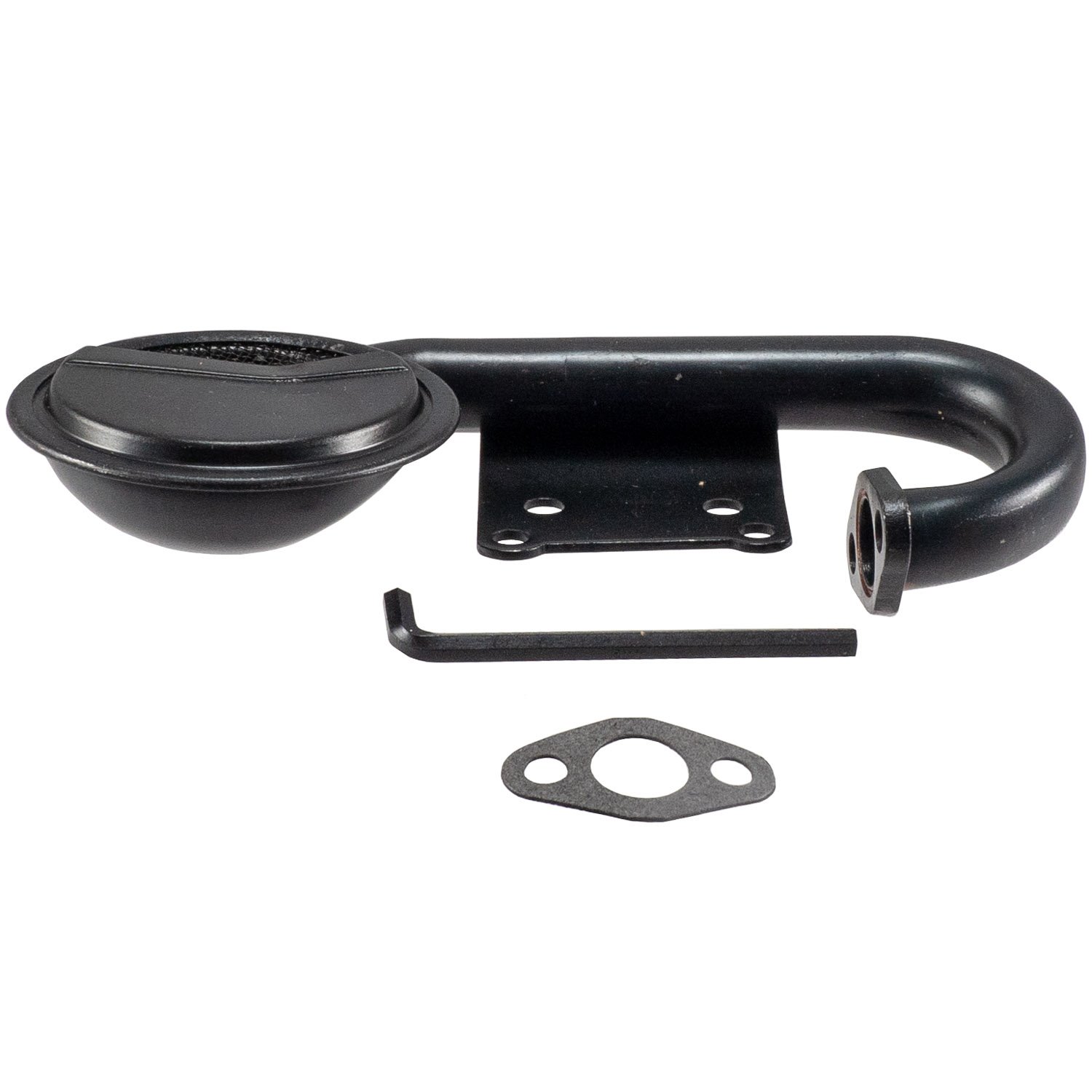

Melling 12566 Features:

A new Melling high performance pick-up tube/oil screen assembly provides the lubrication oil as well as protection for your oil pump from materials that find their way into the engine oil supply system. Contaminates enter your oil system via engine wear, extended time between oil changes and other in ternal engine sources. These contaminates can interfere with the proper oil flow and pressure spring functions resulting in engine damage and/or failure. Melling suggests that a new properly installed high performance oil pump pick-up tube/screen be a part of every oil pump installation when a higher quality oil pump screen is required. Melling high performance oil pump pick-up tubes/screens are manufactured with stronger welds and in some cases designed with additional reinforced mountings, include mounting bolts and are supplied with protective coatings.

• Manufactured from high quality durable materials for long wear
• Designed for long-life and worry-free performance
• Meets or exceeds original equipment specifications
• Precision engineering protects the engine from dirt and contaminants
• Flange Mount Hole Quantity: 2
• Flanged End: Yes
• Gasket Or Seal Included: Yes
• Mounting Hardware Included: No
• Pickup Screen Maximum Adjustment: 0.25 in.
• Screen Material: Galvanized Steel
• Tube Inside Diameter: 0.75 in.
• Tube Length: 5.5 in.
• Tube Material: Galvanized Steel
• Tube Shape: Straight
