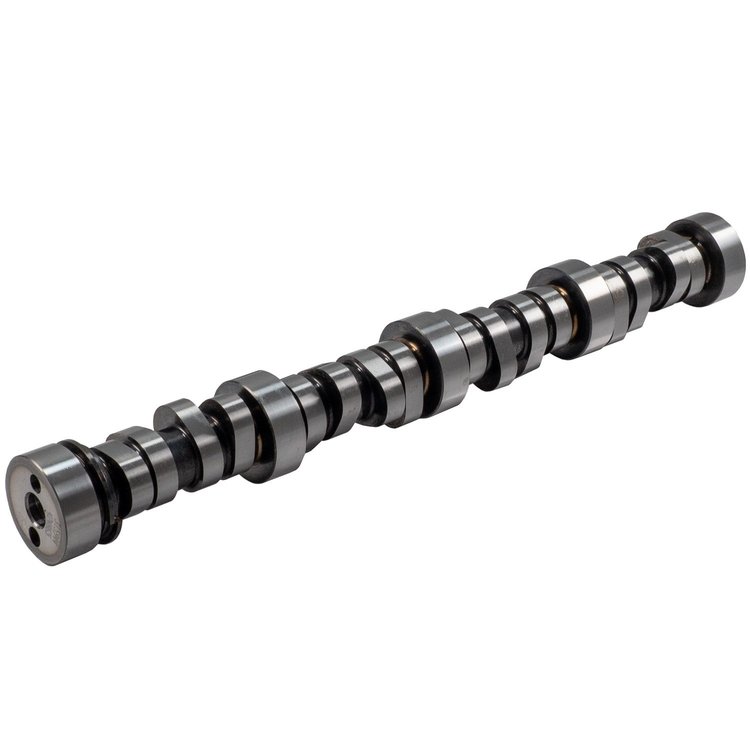

22307 Class III Hydraulic Roller Camshaft for Select GM Gen III & IV LS Engines
InfoVehicle Info Needed
MELLINGPART NUMBER: 689-22307

22307 Class III Hydraulic Roller Camshaft for Select GM Gen III & IV LS Engines

$37199
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM
Class III Hydraulic Roller Camshaft
  • GM Gen III & IV LS Series Engines
  • Lift: 0.523 in./0.524 in.
  • Duration @ 0.050 in.: 218°/227°
  • Lobe Separation: 112°
  • RPM Range: Idle-5,000 RPM
  • Non-AFM Non-VVT

    22307 Features:

    • Class III Camshaft (230°-245°)
    • Mid-High RPM - Good Horsepower and Torque
    • Rough at Idle - Best with Manual Transmissions or High Stall Automatics
    • Vacuum will be Lower Than Stock

    This 3-Bolt Class III Camshaft fits:

    • 1999-2017 GM 4.8L
    • 1999-2016 GM 5.3/6.0L
    • 1997-2005 GM 5.7/6.0L
    • 2007-2017 GM 6.2L

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeCamshaft
    BrandMELLING
    Package Height2.4
    Package Width2.5
    Package Length20.8
    Weight9.65 PG
    Part CategoryPerformance Parts
    Intake Duration At .050 Inch Lift218 DD
    Exhaust Duration At .050 Inch Lift227 DD
    Lobe Separation112 DD
    Lifter TypeHydraulic Roller
    Part FitmentDirect Fit
    Computer Controlled CompatibleNo
    Cam TypeHydraulic Roller
    Grade TypePerformance
    Vendor Part Number22307
    Package Qty1
    Package TypeEA
