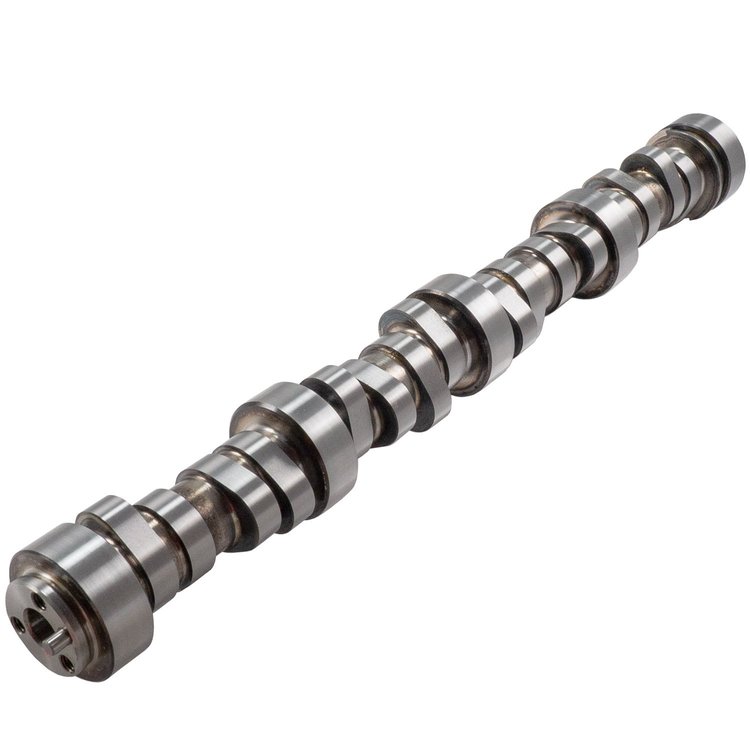

22309 Class III Hydraulic Roller Camshaft for Select GM Gen III & IV LS Engines
InfoVehicle Info Needed
MELLINGPART NUMBER: 689-22309

22309 Class III Hydraulic Roller Camshaft for Select GM Gen III & IV LS Engines

$30899
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM
Class III Hydraulic Roller Camshaft
  • GM Gen III & IV LS Series Engines
  • Lift: 0.560 in./0.560 in.
  • Duration @ 0.050 in.: 216 Degree/ 220 Degree
  • Lobe Separation: 112 Degree
  • RPM Range: 2,200-5,400 RPM
  • Non-AFM
  • 3-Bolt Non-VVT

    Melling 22309 Class III Hydraulic Roller Camshaft Features:

    • Class III Camshaft (230-245 Degree)
    • Mid-High RPM - Good Horsepower and Torque
    • Rough at Idle - Best with Manual Transmissions or High Stall Automatics
    • Combination of street and strip use
    • Vacuum will be Lower Than Stock
    • Will need computer upgrades for correct operation

    Melling 22309 Class III Hydraulic Roller Camshaft Fitment Notes:

    • 1999-2017 GM 4.8L
    • 1999-2014 GM 5.3L
    • 1997-2004 GM 5.7L
    • 1999-2019 GM 6.0L
    • 2007-2015 GM 6.2L

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeCamshaft
    BrandMELLING
    Package Height2.5
    Package Width2.5
    Package Length23.75
    Weight8.5 PG
    Intake Valve Lift0.56 in.
    Intake Duration At .050 Inch Lift220 DD
    Exhaust Duration At .050 Inch Lift216 DD
    Lobe Separation112 DD
    MaterialBillet Steel
    Lifter TypeHydraulic Roller
    Computer Controlled CompatibleNo
    Cam TypeHydraulic Roller
    Grade TypePerformance
    Exhaust Valve Lift0.56 in.
    Vendor Part Number22309
    Package Qty1
    Package TypeEA
