Melling 22330 Features:

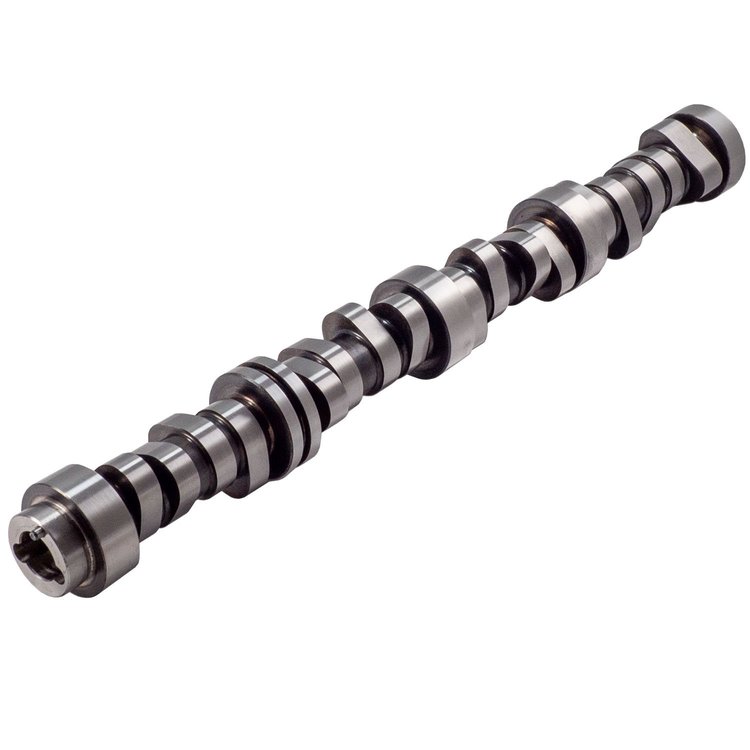

Gen 5 LT1 Class III camshaft (224°-238°). Melling offers a full line of high performance camshafts for domestic cars, light trucks, import vehicles, marine and high performance engines. Melling offers specific high performance camshaft choices for street, RV, strip and circle track racing applications. Melling camshafts supply th e performance to suit your horsepower and torque requirements wherever and whenever you want it. Melling high performance camshafts are developed, engineered, tested and manufactured with the highest standards of quality and materials.

• Fuel Pump Lobe Lash Cap Required
• Plus 32% Fuel Pump Lobe
• 224 Degrees Intake Duration At 0.050
• 238 Degrees Exhaust Duration At 0.050
• 0.639 In Exhaust Valve Lift
• 0.639 In Intake Valve Lift
• 1.8:1 Rocker Arm Ratio
• 112 Degree Lobe Seperation Angle
• Class III
• Gen 5 LT1 Engines
• Cam Type: Hydraulic Roller
• Computer Controlled Compatible: No
• Exhaust Duration at .050 inch Lift: 238 DD
• Exhaust Valve Lift: 0.639 in.
• Grade Type: Performance
• Intake Duration at .050 Inch Lift: 224 DD
• Intake Valve Lift: 0.639 in.
• Lifter Type: Hydraulic Roller
• Lobe Separation: 112 DD
• Material: Billet Steel
• Rocker Arm Ratio: 1.8

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
