MELLINGPART NUMBER: 689-22413

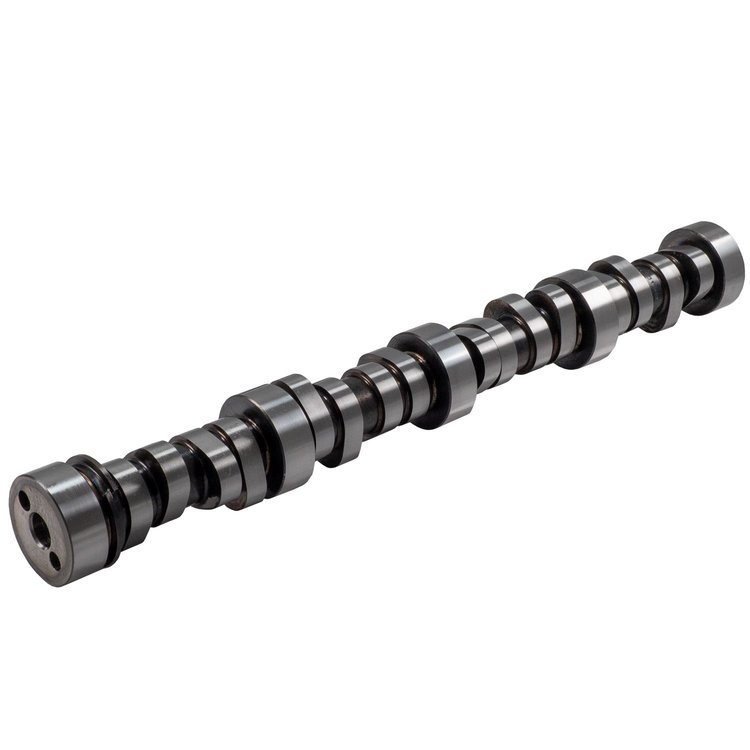

22413 Class IV Hydraulic Roller Camshaft for Select GM Gen III & Gen IV LS Engines
$38399
GM
Class IV Hydraulic Roller CamshaftGM Gen III & IV LS Series Engines Lift: 0.551 in./0.551 in. Duration @ 0.050 in.: 229°/240° Lobe Separation: 108° RPM Range: 2,000-6,000 RPM Non-AFM Non-VVT
22413 Application Specifics:
- Class IV Camshaft (245°- Up)
- For Serious Racers
- Mid-High RPM - Good Horsepower and Torque
- Rough at Idle - Best with Manual Transmissions or Very High Stall Converters
- Proper Rear Axle Ratio is Required, as well as Carburation and Exhaust System Upgrades
- Vacuum will be Inadequate for Power Accessories
This 3-Bolt Class IV Camshaft fits:
- 1999-2017 GM 4.8L
- 1999-2016 GM 5.3/6.0L
- 1997-2005 GM 5.7/6.0L
- 2007-2017 GM 6.2L
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandMELLING
Part CategoryPerformance Parts
Intake Valve Lift0.551 in.
Intake Duration At .050 Inch Lift229 DD
Exhaust Duration At .050 Inch Lift240 DD
Advertised Exhaust Duration236 DD
Lifter TypeHydraulic Roller
Part FitmentDirect Fit
Computer Controlled CompatibleNo
Cam TypeHydraulic Roller
Grade TypePerformance
Advertised Intake Duration295 DD
Vendor Part Number22413
Package Qty1
Package TypeEA
