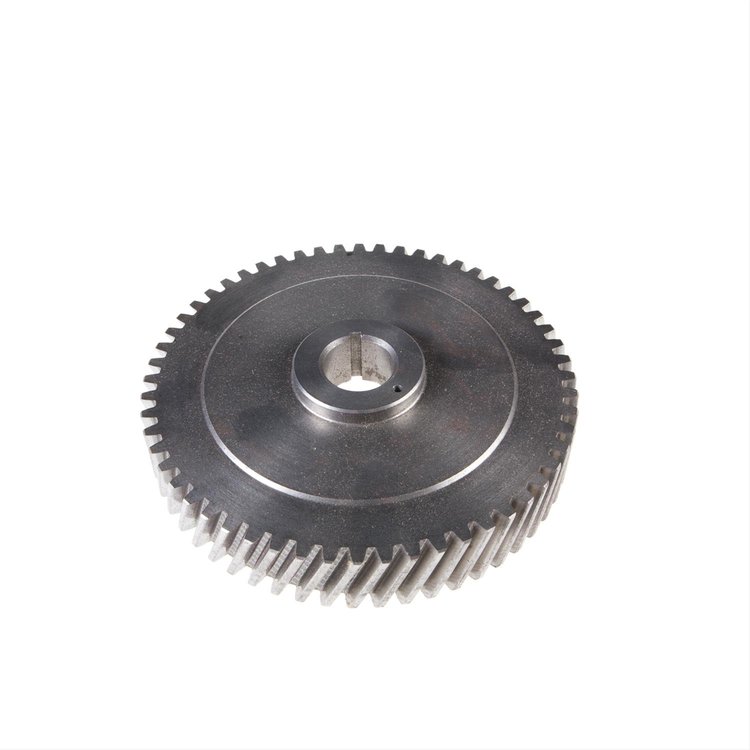

2652 Stock Replacement Cam Gear
- Stock Replacement Cam Gear
- Adjustable: No
- Color: Grey
- Inside Diameter: 5.115 in.
- Inside Diameter: 130.0 mm
- Keyway Notch: Yes
Melling 2652 Features:
Made In USA. Timing gears and sprockets from Melling are provided as a part of a complete timing kit program including chain and sprocket kits, as well as for the individual gear and sprocket sales. Two piece timing gear kits are also available when the engine application calls for gears only. Melling gears and sprockets are offered in both steel and powered metal materials. Each gear and sprocket is manufactured to the required specifications, using high quality materials and the most up to date manufacturing processes. Assure a quality engine rebuild with new Melling gear and sprockets.
- Material: High Alloy Steel
- Mounting Hole Diameter: 0.995 in.
- Mounting Hole Diameter: 25.0 mm
- Mounting Hole Quantity: 1
- Outside Diameter: 6.187 in.
- Outside Diameter: 157.0 mm
- Sprocket Type: Camshaft
- Thickness: 1.366 in.
- Thickness: 35.0 mm
- Thrust Bearing Included: No
- Tooth Quantity: 56
- Tooth Width: 1.075 in.
- Tooth Width: 27.0 mm
