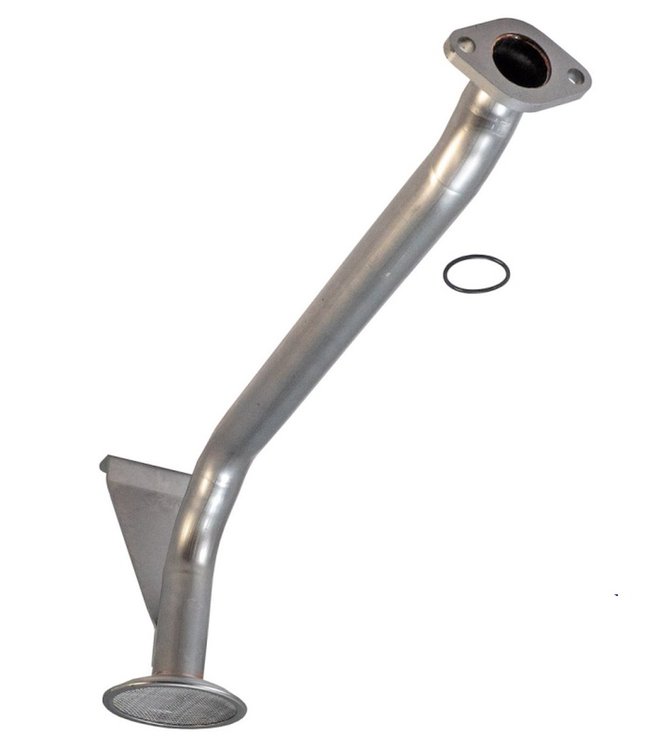

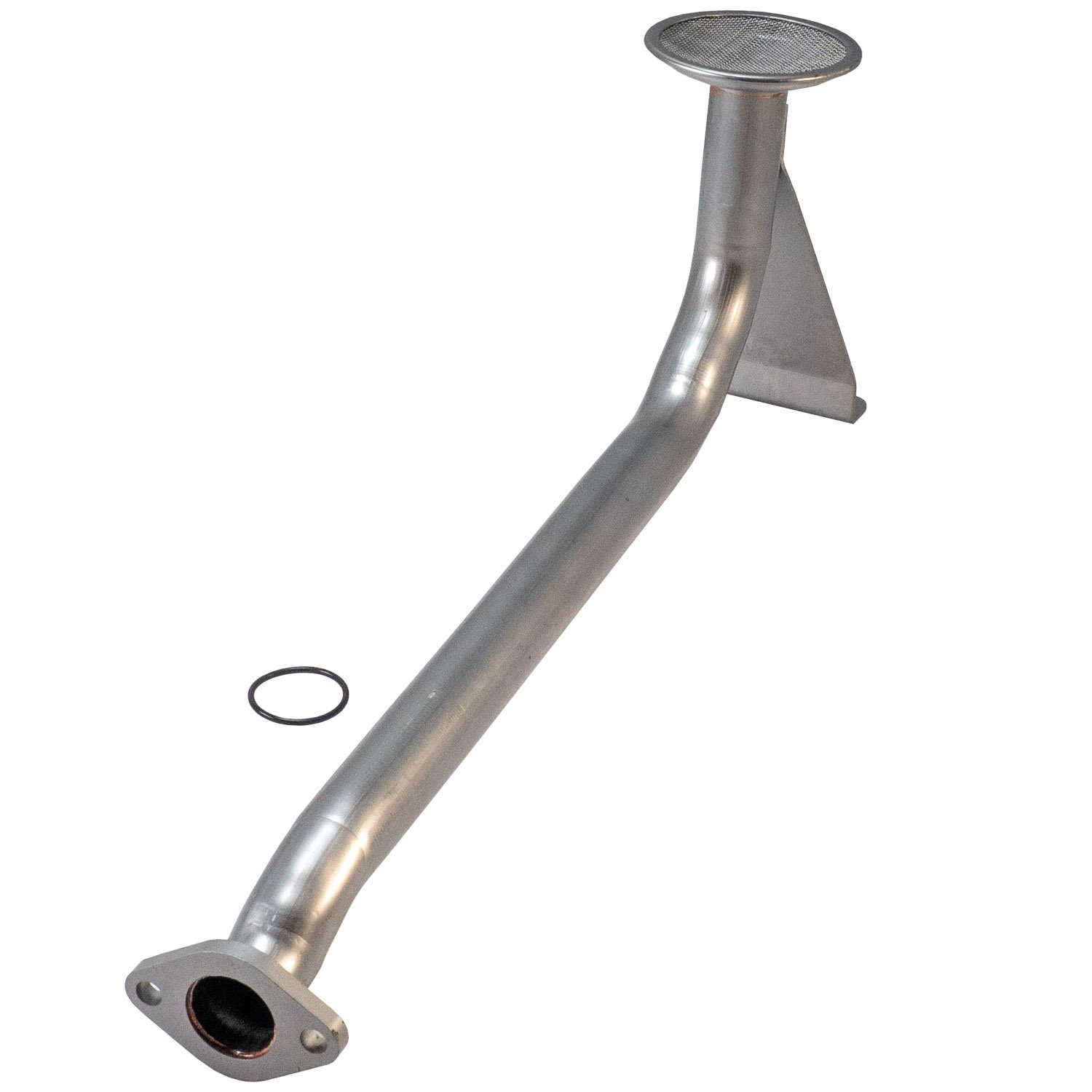

432S Stock Replacement Oil Pump Pickup Tube and Screen for 2010-2016 GM 6.6L OHV Turbo Diesel Engines

Name: 432S Stock Replacement Oil Pump Pickup Tube and Screen for 2010-2016 GM 6.6L OHV Turbo Diesel Engines
Brand: MELLING
SKU: 689-432S
Price: 71.99 USD
Availability: InStock

^$71⁹⁹

Ships on Sep 15, 2026

Lowest Price Guarantee

Oil Pump Pickups

Oil Pump Pickup Tube and Screen

2010-2016 Chevy/GMC Express/Savana

2011-2016 Chevy/GMC Silverado/Sierra

6.6L OHV Turbo Diesel Engines

Tube I.D.: 1.100 in.

Tube Length: 17.750 in.

Shape: Straight

Steel

Sold Individually

Melling 432S Features:

Flange Mount Hole Quantity: 4
Gasket Or Seal Included: Yes
Grade Type: Regular
Mounting Hardware Included: No
Screen Face Diameter: 3 in.

A new Melling pick-up tube/oil screen assembly provides the lubrication oil as well as protection for your oil pump from materials that find their way into the engine oil supply system. Contaminates enter your oil system via engine wear, extended time between oil changes and other internal engine sources. These contaminates can interfere with the proper oil flow and pressure spring functions resulting in engine damage and/or failure. Melling suggests that a new properly installed oil pump pick-up tube/screen be a part of every oil pump installation. Several Melling oil pump applications are offered with an oil screen included.

Part TypeOil Pump Pickup Tube with Screen

BrandMELLING

Package Height6.0

Package Width9.0

Package Length21.0

Weight2.7 PG

Part CategoryReplacement Parts

Tube ShapeStraight

Tube MaterialStainless Steel

Flange Mount Hole Quantity4

Gasket Or Seal IncludedYes

Screen MaterialSteel
