![461208 Dual Valve Spring for GM Gen III/IV LS Engines [1.350 in. O.D.]](https://www.jegs.com/images/mini_750/600/689/689-461208.jpg)
Vehicle Info NeededMELLINGPART NUMBER: 689-461208

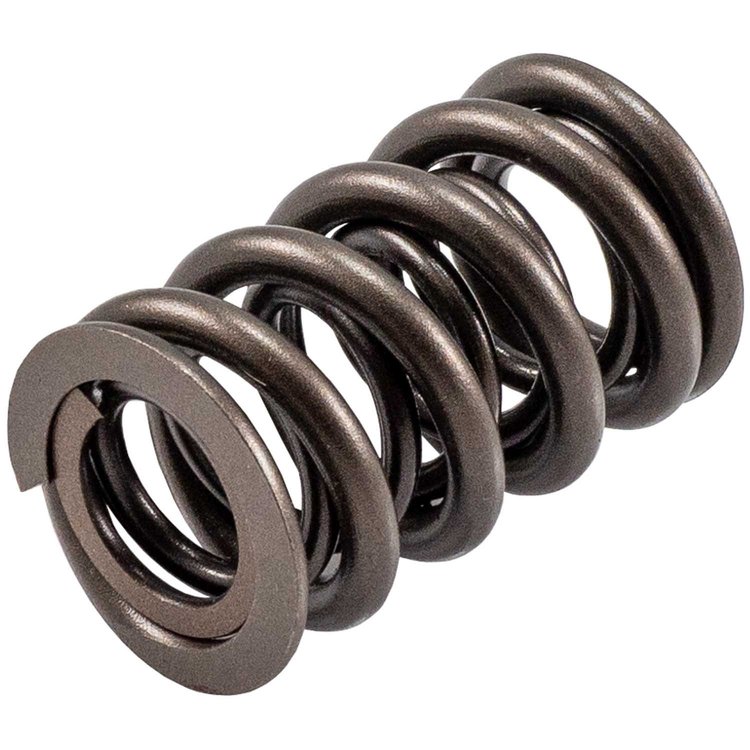

461208 Dual Valve Spring for GM Gen III/IV LS Engines [1.350 in. O.D.]
$1199
More than 10 available
Ships Today
Lowest Price GuaranteeSprings by Application
Performance Dual Valve SpringInstalled Load/Height: 160 lbs. @ 1.800 in. Open Load/Height: 482 lbs. @ 1.100 in. O.D. 1.350 in. I.D. 0.704 in. Coil Bind: 1.045 in. Chrome Silicone Sold Individually
Valve Spring Installation Notes
Melling 461208 Performance Valve Spring Technical Specifications:
- Dimensions are compatible with GM Gen III/IV LS engines
- Closed Pressure: 160 PSI
- Coil Bind Height: 1.045 in. (27 mm)
- Inside Diameter: 0.704 in. (18 mm)
- Installed Height: 1.800 in. (46 mm)
- Installed Pressure: 160 PSI
- Open Pressure: 482 PSI
- Outside Diameter: 1.350 in. (34 mm)
- Spring Closed Height: 1.800 in. (46 mm)
- Spring Open Height: 1.100 in. (28 mm)
- Spring Type: Performance Dual Spring
- Material: Chrome Silicone
Part TypeValve Spring
BrandMELLING
Package Height1.3
Package Width1.3
Package Length2.25
Weight0.175 PG
Part CategoryPerformance Parts
Coil Bind Height1.062 in.
Inside Diameter0.708 in.
Installed Pressure160 psi
Spring TypeDual Spring
MaterialChrome Silicon
Outside Diameter1.324 in.
Installed Height1.8 in.
Open Pressure482 psi
Spring Open Height1.1 in.
Grade TypePerformance
Vendor Part Number461208
Package Qty1
Package TypeEA
