![466354 Single Valve Spring w/Damper for Chevy Small Block Engines [1.215 in. O.D.]](https://www.jegs.com/images/mini_750/600/689/689-466354.jpg)
Vehicle Info NeededMELLINGPART NUMBER: 689-466354

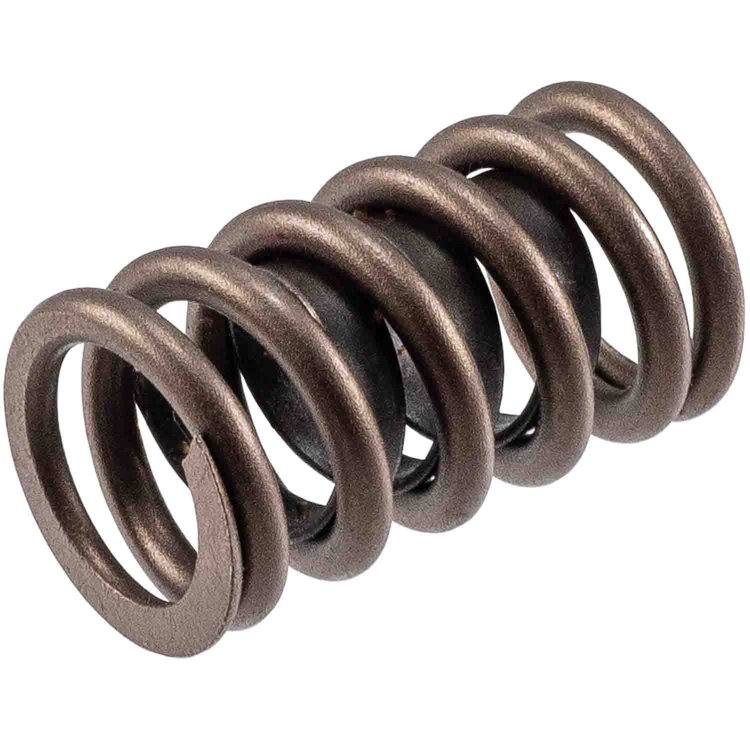

466354 Single Valve Spring w/Damper for Chevy Small Block Engines [1.215 in. O.D.]
$799
More than 10 available
Ships Today
Lowest Price GuaranteeSprings by Application
Performance Single Valve Spring w/DamperInstalled Load/Height: 94 lbs. @ 1.800 in. Open Load/Height: 235 lbs. @ 1.300 in. O.D. 1.215 in. I.D. 0.860 in. Coil Bind: 1.125 in. Chrome Silicone Sold Individually
Valve Spring Installation Notes
Melling 466354 Performance Valve Spring Technical Specifications:
- Dimensions are compatible with Chevy Small Block engines
- Closed Pressure: 94 PSI
- Coil Bind Height: 1.125 in. (29 mm)
- Inside Diameter: 0.860 in. (22 mm)
- Installed Height: 1.800 in. (46 mm)
- Installed Pressure: 94 PSI
- Open Pressure: 235 PSI
- Outside Diameter: 1.215 in. (31 mm)
- Spring Closed Height: 1.800 in. (46 mm)
- Spring Open Height: 1.300 in. (33 mm)
- Spring Type: Conventional Spring w/Damper
- Material: Chrome Silicone
Part TypeValve Spring
BrandMELLING
Package Height1.6
Package Width4.0
Package Length4.4
Weight0.18 PG
Part CategoryPerformance Parts
Coil Bind Height1.141 in.
Inside Diameter0.866 in.
Installed Pressure94 psi
Spring TypeSingle Spring
MaterialChrome Silicon
Part FitmentDirect Fit
Outside Diameter1.22 in.
Installed Height1.8 in.
Open Pressure235 psi
Spring Open Height1.3 in.
Grade TypePerformance
Camshaft TypeHydraulic Roller
Vendor Part Number466354
Package Qty1
Package TypeEA
