![466434 Single Valve Spring w/Damper for Mopar Small Block Engines (LA) [1.435 in. O.D.]](https://www.jegs.com/images/mini_750/600/689/689-466434.jpg)
Vehicle Info NeededMELLINGPART NUMBER: 689-466434

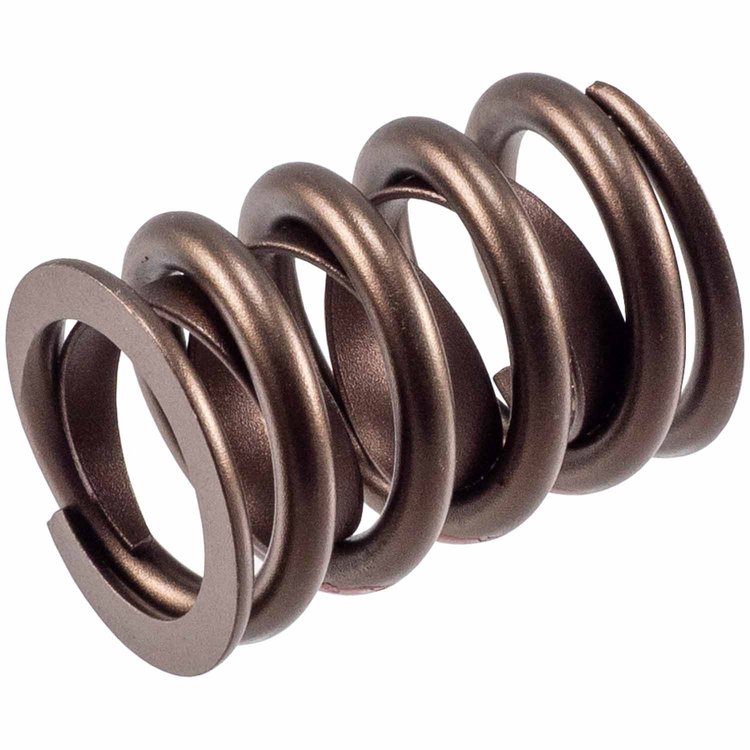

466434 Single Valve Spring w/Damper for Mopar Small Block Engines (LA) [1.435 in. O.D.]
$1299
More than 10 available
Ships Tomorrow
Lowest Price GuaranteeSprings by Application
Performance Single Valve Spring w/DamperInstalled Load/Height: 112 lbs. @ 1.687 in. Open Load/Height: 290 lbs. @ 1.187 in. O.D. 1.435 in. I.D. 1.035 in. Coil Bind: 1.060 in. Chrome Silicone Sold Individually
Valve Spring Installation Notes
Melling 446434 Performance Valve Spring Technical Specifications:
- Dimensions are compatible with AMC and Chrysler V8 engines
- Closed Pressure: 112 PSI
- Coil Bind Height: 1.060 in. (27 mm)
- Inside Diameter: 1.035 in. (26 mm)
- Installed Height: 1.687 in. (43 mm)
- Installed Pressure: 112 PSI
- Open Pressure: 290 PSI
- Outside Diameter: 1.435 in. (36 mm)
- Spring Closed Height: 1.687 in. (46 mm)
- Spring Open Height: 1.187 in. (30 mm)
- Spring Type: Performance Conventional w/Damper
- Material: Chrome Silicone
Part TypeValve Spring
BrandMELLING
Package Height1.5
Package Width2.5
Package Length3.9
Weight0.2 PG
Part CategoryPerformance Parts
Coil Bind Height1.062 in.
Inside Diameter1.023 in.
Installed Pressure112 psi
Spring TypeSingle Spring
MaterialChrome Silicon
Part FitmentDirect Fit
Outside Diameter1.417 in.
Installed Height1.687 in.
Open Pressure290 psi
Spring Open Height1.187 in.
Grade TypePerformance
Camshaft TypeHydraulic Roller
Vendor Part Number466434
Package Qty1
Package TypeEA
