![466624 Single Beehive Valve Spring [1.237 in. O.D.]](https://www.jegs.com/images/mini_750/600/689/689-466624.jpg)
Vehicle Info NeededMELLINGPART NUMBER: 689-466624

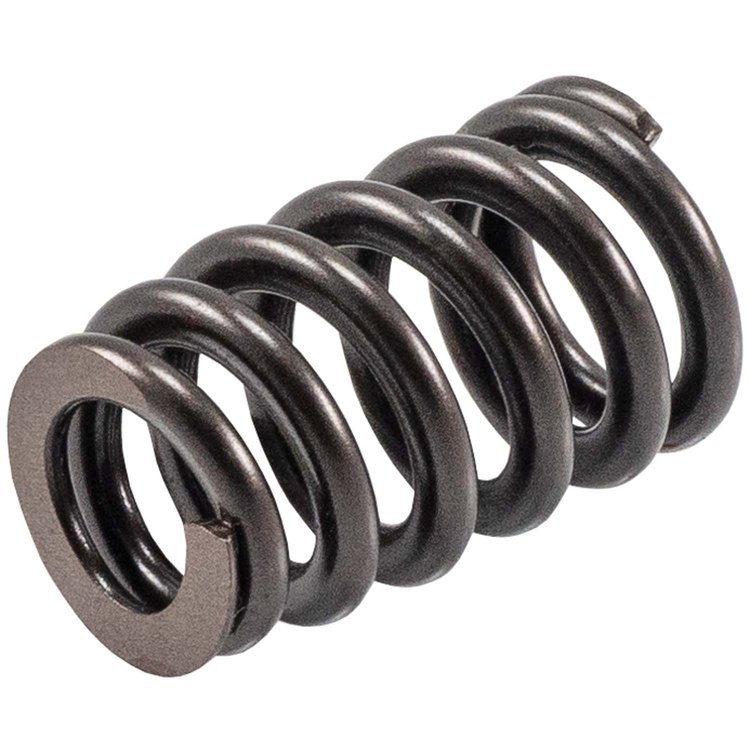

466624 Single Beehive Valve Spring [1.237 in. O.D.]
$799
Ships on 09/08/2026
Lowest Price GuaranteeSprings by Dimension
Beehive Valve SpringInstalled Load/Height: 113 lbs. @ 1.700 in. Open Load/Height: 298 lbs. @ 1.175 in. O.D. 1.237 in. I.D. 0.650 in. Coil Bind: 1.115 in. Chrome Silicone Sold Individually
Valve Spring Installation Notes
Melling 466624 Performance Valve Spring Technical Specifications:
- This valve spring is available by size only and is not engine specific
- Closed Pressure: 113 PSI
- Coil Bind Height: 1.115 in. (28 mm)
- Inside Diameter: 0.650 in. (17 mm)
- Installed Height: 1.700 in. (43 mm)
- Installed Pressure: 113 PSI
- Open Pressure: 298 PSI
- Outside Diameter: 1.237 in. (31 mm)
- Spring Closed Height: 1.700 in. (43 mm)
- Spring Open Height: 1.175 in. (30 mm)
- Spring Type: Performance Conical Spring
- Material: Chrome Silicone
Part TypeValve Spring
BrandMELLING
Package Height3.8
Package Width4.4
Package Length15.4
Weight2.83 PG
Part CategoryPerformance Parts
Coil Bind Height1.102 in.
Inside Diameter0.65 in.
Installed Pressure110 psi
Spring TypeSingle Spring
MaterialChrome Silicon
Outside Diameter1.237 in.
Installed Height1.7 in.
Open Pressure292 psi
Spring Open Height1.175 in.
Grade TypePerformance
Vendor Part Number466624
Package Qty1
Package TypeEA
