![466704 Single Valve Spring for Ford 2003-2010 6.0L, 6.4L Powerstroke Diesel Engines [0.994 in. O.D.]](https://www.jegs.com/images/mini_750/600/689/689-466704.jpg)
Vehicle Info NeededMELLINGPART NUMBER: 689-466704

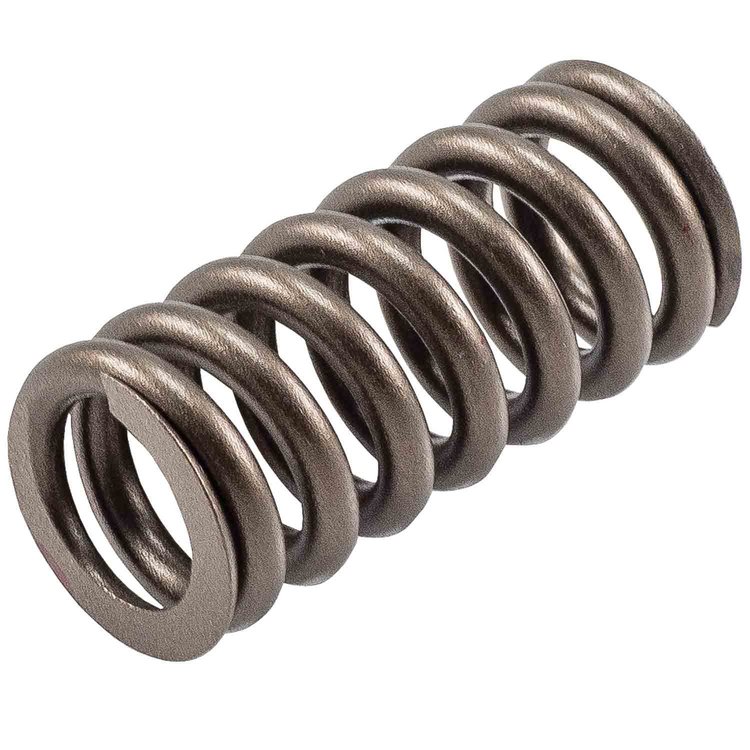

466704 Single Valve Spring for Ford 2003-2010 6.0L, 6.4L Powerstroke Diesel Engines [0.994 in. O.D.]
$599
Ships on Sep 04, 2026
Lowest Price GuaranteeSprings by Application
Performance Single Valve SpringInstalled Load/Height: 84 lbs. @ 1.880 in. Open Load/Height: 230 lbs. @ 1.440 in. O.D. 0.994 in. I.D. 0.660 in. Coil Bind: 1.337 in. Chrome Silicone Sold Individually
Valve Spring Installation Notes
Melling 466704 Performance Valve Spring Technical Specifications:
- Dimensions are compatible with Ford 6.0L and 6.4L Powerstroke diesel engines
- Closed Pressure: 84 PSI
- Coil Bind Height: 1.377 in. (35 mm)
- Inside Diameter: 0.660 in. (17 mm)
- Installed Height: 1.880 in. (48 mm)
- Installed Pressure: 84 PSI
- Open Pressure: 228 PSI
- Outside Diameter: 0.994 in. (25 mm)
- Spring Closed Height: 1.880 in. (48 mm)
- Spring Open Height: 1.450 in. (37 mm)
- Spring Type: Performance Single Spring
- Material: Chrome Silicone
Part TypeValve Spring
BrandMELLING
Part CategoryPerformance Parts
Coil Bind Height1.377 in.
Inside Diameter0.66 in.
Installed Pressure84 psi
Spring TypeSingle Spring
MaterialChrome Silicon
Outside Diameter0.994 in.
Installed Height1.88 in.
Open Pressure228 psi
Spring Open Height1.45 in.
Grade TypePerformance
Vendor Part Number466704
Package Qty1
Package TypeEA
