![466904 Dual Valve Spring w/Damper [1.510 in. O.D.]](https://www.jegs.com/images/mini_750/600/689/689-466904.jpg)
Vehicle Info NeededMELLINGPART NUMBER: 689-466904

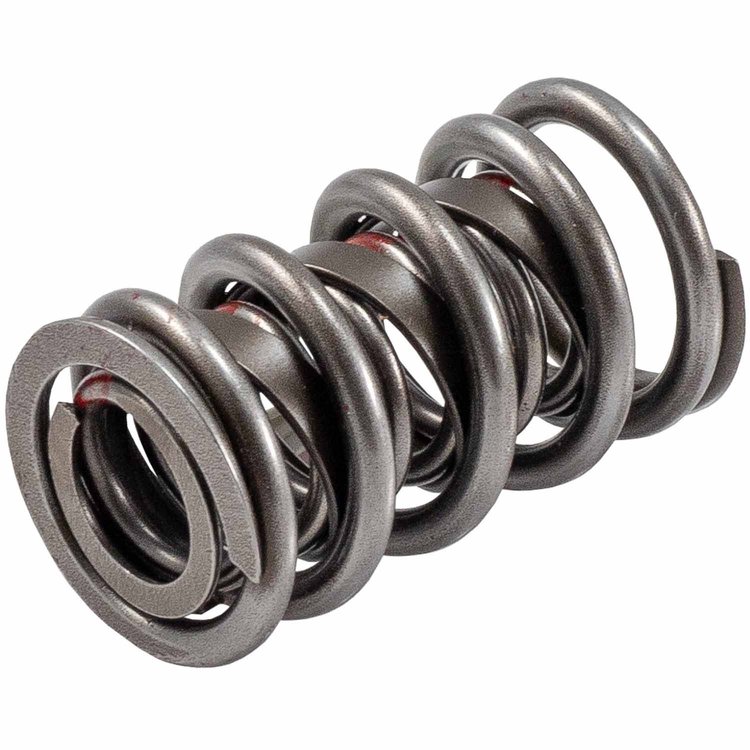

466904 Dual Valve Spring w/Damper [1.510 in. O.D.]
$1299
Ships on 09/09/2026
Lowest Price GuaranteeSprings by Dimension
Performance Dual Valve Spring w/DamperInstalled Load/Height: 192 lbs. @ 1.850 in. Open Load/Height: 449 lbs. @ 1.250 in. O.D. 1.510 in. I.D. 0.731 in. Coil Bind: 1.100 in. Chrome Silicone Sold Individually
Valve Spring Installation Notes
Melling 466904 Performance Valve Spring Technical Specifications:
- This valve spring is available by size only and is not engine specific
- Closed Pressure: 192 PSI
- Coil Bind Height: 1.100 in. (28 mm)
- Inside Diameter: 0.731 in. (19 mm)
- Installed Height: 1.850 in. (47 mm)
- Installed Pressure: 192 PSI
- Open Pressure: 449 PSI
- Outside Diameter: 1.510 in. (38 mm)
- Spring Closed Height: 1.850 in. (47 mm)
- Spring Open Height: 1.250 in. (32 mm)
- Spring Type: Performance Dual Spring w/Damper
- Material: Chrome Silicone
Part TypeValve Spring
BrandMELLING
Part CategoryPerformance Parts
Coil Bind Height1.1 in.
Inside Diameter0.731 in.
Installed Pressure192 psi
Spring TypeDual Spring
MaterialChrome SIlicon
Outside Diameter1.51 in.
Installed Height1.85 in.
Open Pressure449 psi
Spring Open Height1.25 in.
Grade TypePerformance
Vendor Part Number466904
Package Qty1
Package TypeEA
