![466914 Single Beehive Valve Spring [1.284 in. O.D.]](https://www.jegs.com/images/mini_750/600/689/689-466914.jpg)
Vehicle Info NeededMELLINGPART NUMBER: 689-466914

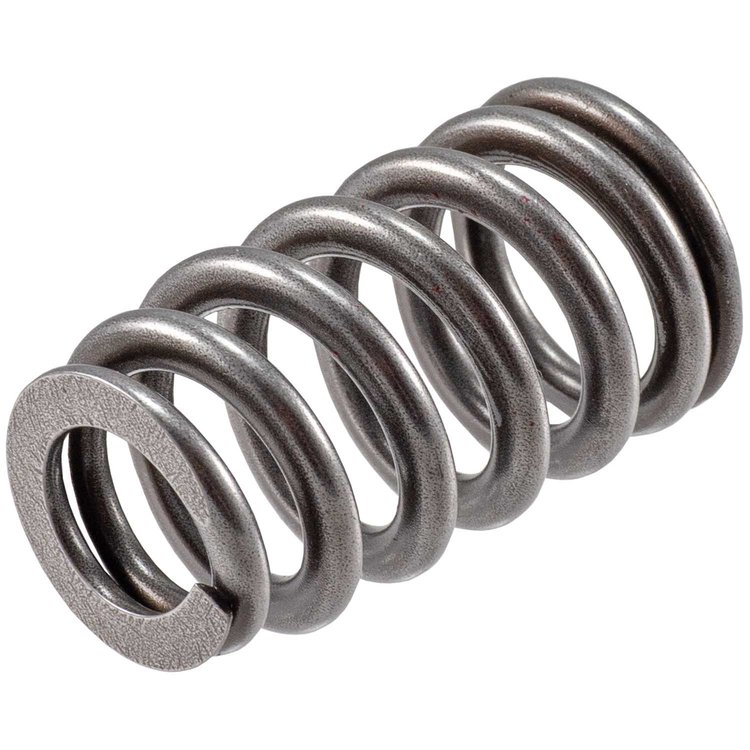

466914 Single Beehive Valve Spring [1.284 in. O.D.]
$1599
Ships on 09/09/2026
Lowest Price GuaranteeSprings by Dimension
Beehive Valve SpringInstalled Load/Height: 105 lbs. @ 1.800 in. Open Load/Height: 265 lbs. @ 1.200 in. O.D. 1.284 in. I.D. 0.880 in. Coil Bind: 1.130 in. Chrome Silicone Sold Individually
Valve Spring Installation Notes
Melling 466914 Performance Valve Spring Technical Specifications:
- This valve spring is available by size only and is not engine specific
- Closed Pressure: 105 PSI
- Coil Bind Height: 1.130 in. (29 mm)
- Inside Diameter: 0.880 in. (22 mm)
- Installed Height: 1.800 in. (46 mm)
- Installed Pressure: 105 PSI
- Open Pressure: 265 PSI
- Outside Diameter: 1.284 in. (33 mm)
- Spring Closed Height: 1.800 in. (46 mm)
- Spring Open Height: 1.200 in. (30 mm)
- Spring Type: Performance Tapered Spring
- Material: Chrome Silicone
Part TypeValve Spring
BrandMELLING
Part CategoryPerformance Parts
Coil Bind Height1.13 in.
Inside Diameter0.88 in.
Installed Pressure105 psi
Spring TypeSingle Spring
MaterialChrome Silicon
Outside Diameter1.284 in.
Installed Height1.8 in.
Open Pressure265 psi
Spring Open Height1.2 in.
Grade TypePerformance
Vendor Part Number466914
Package Qty1
Package TypeEA
