Vehicle Info NeededMELLINGPART NUMBER: 689-5499GMB

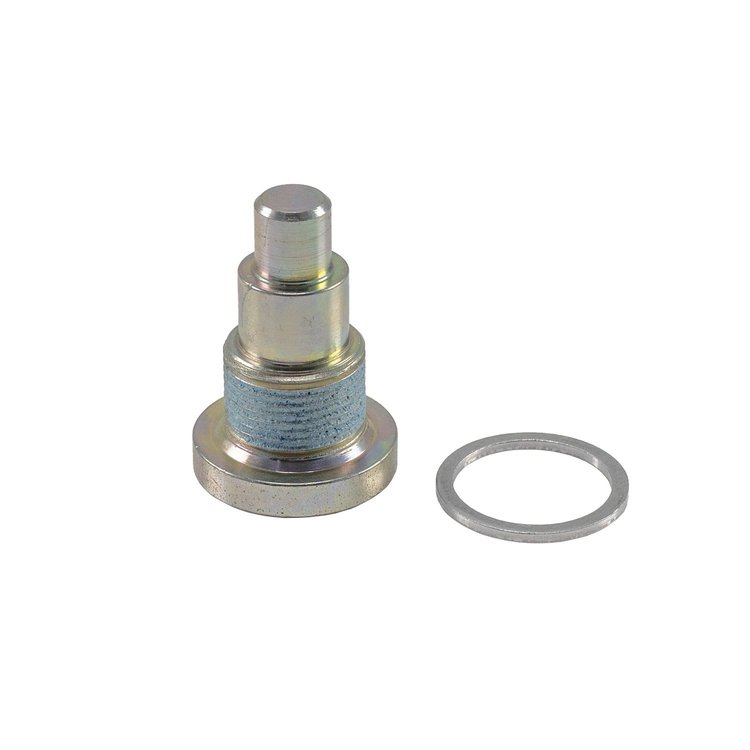

5499GMB Engine Timing Chain Guide Bolt Buick, Chevrolet, GMC, Oldsmobile, Pontiac, Saab, Saturn 2.0L, 2.2L, 2.4L
$1599
More than 10 available
Ships on Sep 14, 2026
Lowest Price GuaranteeEngine Timing Chain Guide BoltBuick, Chevrolet, GMC, Oldsmobile, Pontiac, Saab, Saturn 2.0L, 2.2L, 2.4L
Melling 5499GMB Features:
Melling furnishes timing chain tensioner and guide mounting bolts for certain applications. Timing chain tensioner and guide bolts help secure the tensioners and guide in place ensuring the timing components operate correctly and efficiently. The 5499GMB timing chain guide bolt is an improved design over the original mounting bolt and does not require labor intensive drilling and tapping while reducing installation time by eliminating the cylinder head removal process. Manufactured from the highest quality materials to exacting specifications to ensure worry free operation.
- Threads Per Inch: 15
- Head Drive Type: Allen Key
- Material: High Alloy Steel
- Length: 1.839 in.
- Head Tool Size: 0.394 in.
- Finish: Zinc, Clear Chromate
- Thread Type: Coarse
- Thread Diameter: 0.866 in.
- Integral Washer Inside Diameter: 0.945 in.
- Bolt Grade: Class 8.8 Fastener
Part TypeTiming Chain Guide
BrandMELLING
Package Width0.25
Package Length1.839 in.
Weight0.25 PG
Part CategoryReplacement Parts
Head Drive TypeAllen Key
Thread Diameter0.866 in.
Integral Washer Inside Diameter0.945 in.
Bolt GradeClass 8.8 Fastener
MaterialHigh Alloy Steel
Part FitmentDirect Fit
Threads Per Inch15
Thread TypeCoarse
FinishZinc, Clear Chromate
Head Tool Size0.394 in.
Vendor Part Number5499GMB
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
