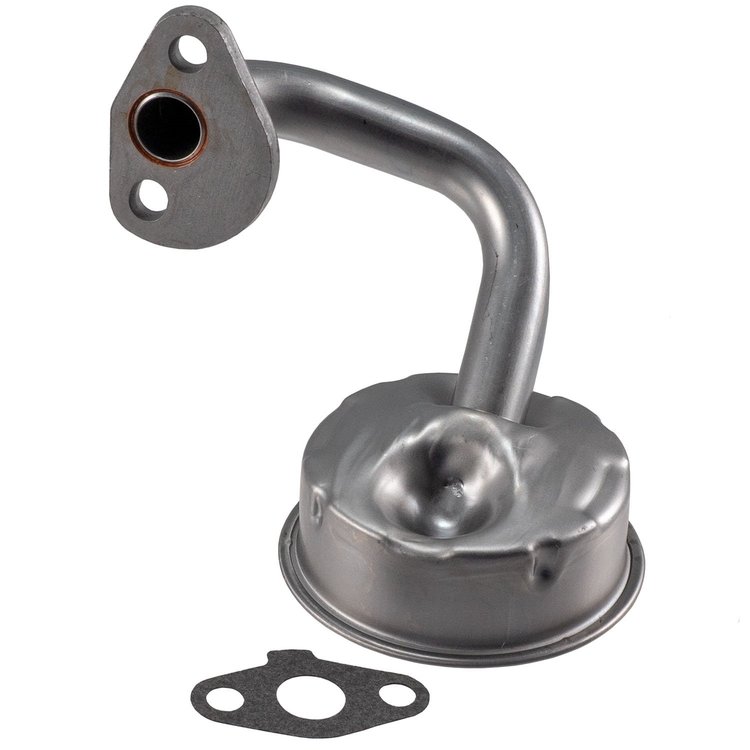

68-S1 Stock Replacement Oil Pump Screen
- Stock Replacement Oil Pump Screen
- Flange Mount Hole Quantity: 2
- Flanged End: Yes
- Gasket Or Seal Included: Yes
- Mounting Hardware Included: No
- Screen Face Diameter: 3.6 in.
Melling 68-S1 Features:
Made In USA. A new Melling pick-up tube/oil screen assembly provides the lubrication oil as well as protection for your oil pump from materials that find their way into the engine oil supply system. Contaminates enter your oil system via engine wear, extended time between oil changes and other internal engine sources. These contaminates can interfere with the proper oil flow and pressure spring functions resulting in engine damage and/or failure. Melling suggests that a new properly installed oil pump pick-up tube/screen be a part of every oil pump installation. Several Melling oil pump applications are offered with an oil screen included.
- Screen Face Diameter: 91.0 mm
- Screen Material: Galvanized Steel
- Tube Inside Diameter: 0.6 in.
- Tube Inside Diameter: 15.0 mm
- Tube Length: 2.51 in.
- Tube Length: 64.0 mm
- Tube Material: Galvanized Steel
- Tube Shape: Straight
