![Oil Pump Pickup Tube and Screen Assembly for Ford, Mercury 4.2L, 5.0L [Galvanized Steel]](https://www.jegs.com/images/mini_750/600/689/689-68-s4.jpg)
Vehicle Info NeededMELLINGPART NUMBER: 689-68-S4

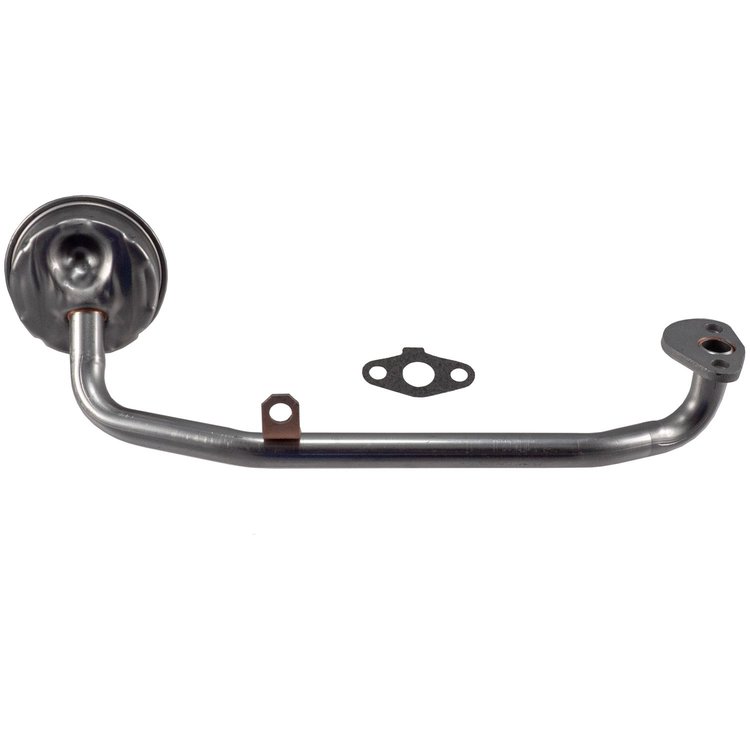

Oil Pump Pickup Tube and Screen Assembly for Ford, Mercury 4.2L, 5.0L [Galvanized Steel]
$3599
More than 10 available
Ships on Sep 14, 2026
Lowest Price GuaranteeFord Oil Pump Pickups

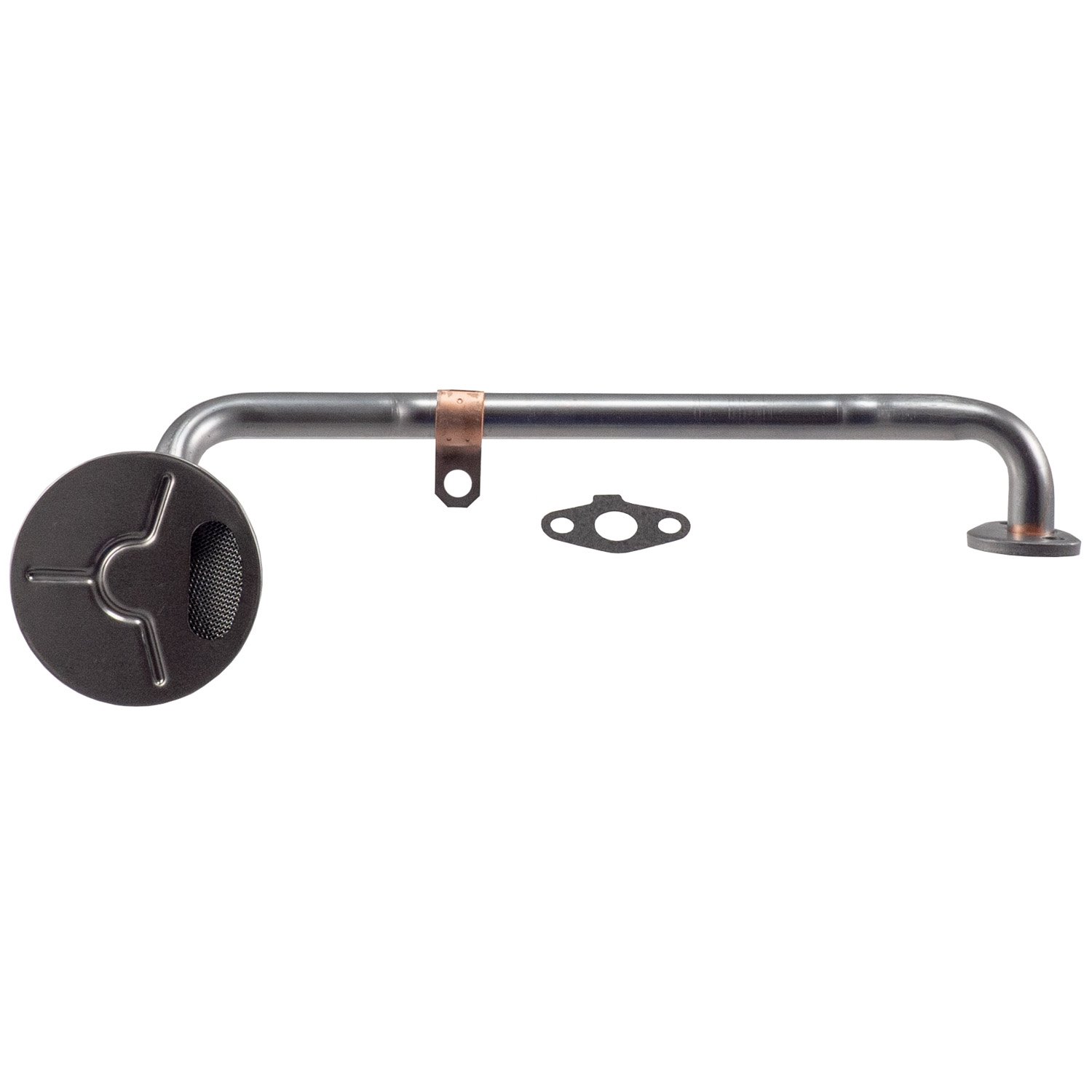

Molded pickup tube and screen assembly that feeds the oil pump and filters sump debris.Fits Ford and Mercury 4.2L and 5.0L engines 2.77 in. tube length, 0.6 in. tube inside diameter 3.6 in. screen face diameter Galvanized steel
Everything the oil pump draws passes through this screen first. Wear metal, sludge and gasket debris collect there, and a partly blocked screen starves the pump of the flow it needs to build pressure. Fitting a new pickup assembly with every pump replacement removes that risk.
Melling 68-S4 Assembly Details
- Molded tube and screen assembly with a flanged end and two mounting flange holes.
- 2.77 in. tube length with a 0.6 in. tube inside diameter.
- 3.6 in. screen face diameter.
- Galvanized steel tube and screen; gasket included, mounting hardware is not.
Part TypeOil Pump Pickup Tube with Screen
BrandMELLING
Package Height4.0
Package Width6.8
Package Length19.6
Weight1.74 PG
Part CategoryReplacement Parts
Tube ShapeMolded Assembly
Tube MaterialGalvanized Steel
Flange Mount Hole Quantity2
Gasket Or Seal IncludedYes
Screen MaterialGalvanized Steel
Screen Face Diameter3.6 in.
Mounting Hardware IncludedNo
Part FitmentDirect Fit
Tube Inside Diameter0.6 in.
Tube Length2.77 in.
Grade TypeStandard Replacement
Flanged EndYes
Vendor Part Number68-S4
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
